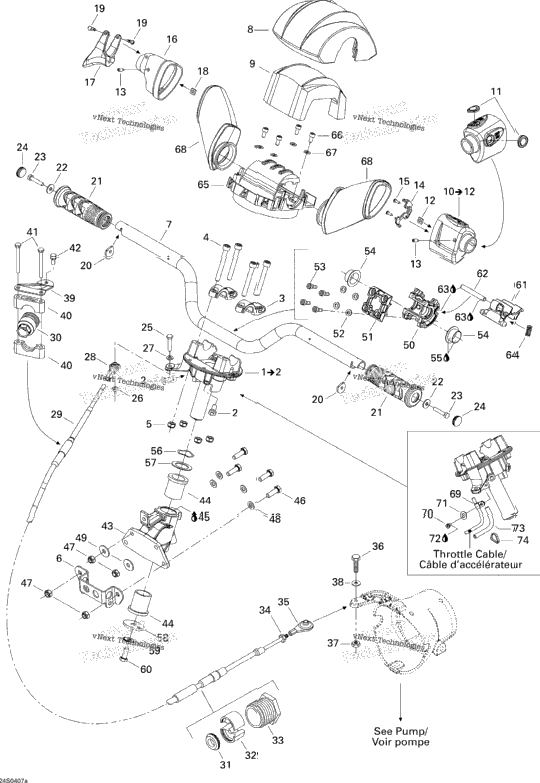

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 277001211 | Rod Ass'y Includes 1 to 2 | ||
| 2 | 278002030 | LOW SPEED CONTROL ACTUATOR | 2 |
| 2 | 277001253 | STEERING CLAMP | 2 |
| 4 | 205086060 | Socket Head Screw M8 X 60 | 4 |
| 4 | 232581600 | Hex. Elastic Nut M8 | 4 |
| 1 | 269001135 | LATCH SUPPORT | 1 |
| 277001210 | Handle Bar | ||
| 1 | 277001212 | STEERING PAD | 1 |
| 1 | 277001343 | PAD FOAM | 1 |
| 1 | 277001257 | HOUSING ASS'Y Includes 10 to 12 | 1 |
| 277000306 | Switch Knob | ||
| 1 | 232860600 | SQUARE NUT M6 | 1 |
| 2 | 250000036 | Socket Head Screw M6 X 16 | 2 |
| 277001213 | Retainer Plate | ||
| 2 | 209631360 | SCREW-TAPP.PAN HD.PH.DIN.7981C-A2 | 2 |
| 1 | 277000872 | THROTTLE HOUSING ASS'Y | 1 |
| 1 | 277001261 | THROTTLE HANDLE | 1 |
| 2 | 277000381 | PIN | 2 |
| 2 | 277000554 | Handle Grip Insert | 2 |
| 277001316 | Handle Grip | ||
| 2 | 234062600 | Flat Washer M6, Stainless | 2 |
| 2 | 250000002 | Hex. Screw M6 X 30, Scotch Grip | 2 |
| 2 | 277000203 | Black, Cap | 2 |
| 1 | 207063060 | Hex. Screw M6 X 30 | 1 |
| 1 | 232561600 | Hex. Elastic Stop Nut M6 | 1 |
| 1 | 234061600 | Stainless, Flat Washer M6 | 1 |
| 1 | 277000775 | Ball Joint | 1 |
| 277001339 | Steering Cable | ||
| 1 | 277000782 | Ajustment Knob | 1 |
| 1 | 293830063 | Rubber Washer | 1 |
| 2 | 277000783 | Half-Ring | 2 |
| 1 | 277000784 | Steering Cable Lock | 1 |
| 1 | 211100056 | Hex. Nut 1/4"-28 | 1 |
| 1 | 207063560 | Hex. Screw M6 X 35 | 1 |
| 277000738 | Cable Support | ||
| 2 | 277000162 | Support Thrust | 2 |
| 2 | 207265560 | Hex. Screw M6 X 55, Scotch Grip | 2 |
| 1 | 207361260 | Hex. Screw M6 X 12, Scotch Grip | 1 |
| 296000243 | Pillow Block Ass'y Includes OTAS Sensor | ||
| 293900062 | BUSHING | ||
| 293550010 | Synthetic Grease, 400 G | ||
| 4 | 207182560 | HEX. SCREW M8 X 25 | 4 |
| 4 | 234081600 | Stainless, Flat Washer 8 mm | 4 |
| 2 | 234082600 | Flat Washer 8 mm, Stainless | 2 |
| 277001264 | Block Indexing | ||
| 277001298 | Block Fixing Anodized | ||
| 4 | 234061600 | Stainless, Flat Washer M6 | 4 |
| 4 | 205561660 | Socket Head Screw M6 X 16, Scotch Grip | 4 |
| 2 | 277001214 | FLANGE BUSHING | 2 |
| 211200008 | Spring Washer | ||
| 1 | 293350006 | SHIM | 1 |
| 1 | 277001262 | RETAINER WASHER | 1 |
| 1 | 277001263 | WASHER | 1 |
| 207182060 | HEX. SCREW M8 X 20 | ||
| 277001217 | Ajustment Lever | ||
| 1 | 277001266 | ROD LOCK | 1 |
| 277001267 | Compression Spring | ||
| 1 | 277001254 | PAD SUPPORT HANDLE | 1 |
| 4 | 205561260 | Socket Head Screw M6 X 12, Scotch Grip | 4 |
| 2 | 277001313 | COVER HANDLE | 2 |
| 1 | 293850083 | OPEN CLAMP | 1 |
| 1 | 208640860 | PHILLIPS SCREW M4 X 8 | 1 |
| 1 | 234042600 | Flat Washer 4 mm, Stainless | 1 |
| 1 | 293800060 | Loctite 243, 10 ml | 1 |
| 1 | 219704425 | Tubing 6 MM 3000MM Long | 1 |
| 1 | 293750002 | Tie Wrap 142 mm | 1 |
