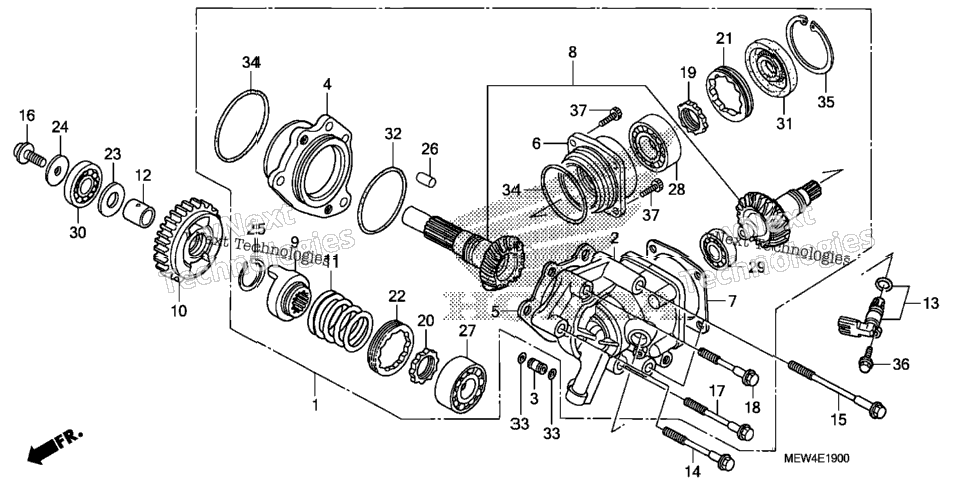

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 21100-MEW-920 | CASE ASSY., SIDE GEAR | 1 |
| 1 | 21200-MEW-920 | CASE, SIDE GEAR | 1 |
| 1 | 21215-MEW-920 | ORIFICE, SIDE GEAR CASE | 1 |
| 1 | 21281-MEW-920 | HOLDER, FINAL DRIVESHAFT BEARING | 1 |
| 1 | 21309-MEG-000 | SHIM, FINAL DRIVESHAFT (0.30) | 1 |
| 1 | 21310-MEG-000 | SHIM, FINAL DRIVESHAFT (0.35) | 1 |
| 1 | 21311-MEG-000 | SHIM, FINAL DRIVESHAFT (0.40) | 1 |
| 1 | 21312-MEG-000 | SHIM, FINAL DRIVESHAFT (0.45) | 1 |
| 1 | 21313-MEG-000 | SHIM, FINAL DRIVESHAFT (0.50) | 1 |
| 1 | 21314-MEG-000 | SHIM, FINAL DRIVESHAFT (0.55) | 1 |
| 1 | 21315-MEG-000 | SHIM, FINAL DRIVESHAFT (0.60) | 1 |
| 1 | 21316-MEG-000 | SHIM, FINAL DRIVESHAFT (0.65) | 1 |
| 1 | 21317-MEG-000 | SHIM, FINAL DRIVESHAFT (0.70) | 1 |
| 1 | 21318-MEG-000 | SHIM, FINAL DRIVESHAFT (0.75) | 1 |
| 1 | 21371-MS9-000 | HOLDER, CROSS SHAFT BEARING | 1 |
| 1 | 21377-MB0-770 | SHIM, CROSS SHAFT (0.20) | 1 |
| 1 | 21378-MB0-770 | SHIM, CROSS SHAFT (0.25) | 1 |
| 1 | 21379-MB0-770 | SHIM, CROSS SHAFT (0.30) | 1 |
| 1 | 21380-MB0-770 | SHIM, CROSS SHAFT (0.35) | 1 |
| 1 | 21381-MB0-770 | SHIM, CROSS SHAFT (0.40) | 1 |
| 1 | 21382-MB0-770 | SHIM, CROSS SHAFT (0.45) | 1 |
| 1 | 21383-MB0-770 | SHIM, CROSS SHAFT (0.50) | 1 |
| 1 | 21384-MB0-770 | SHIM, CROSS SHAFT (0.55) | 1 |
| 1 | 21385-MB0-770 | SHIM, CROSS SHAFT (0.60) | 1 |
| 1 | 23200-MEW-920 | SHAFT SET, FINAL DRIVE | 1 |
| 1 | 23721-ME9-000 | LIFTER, DAMPER | 1 |
| 1 | 23726-MEW-920 | GEAR, DAMPER SHAFT (31T) | 1 |
| 1 | 23732-MEW-920 | SPRING, DAMPER | 1 |
| 1 | 23733-MS9-000 | COLLAR (20X24X19.8) | 1 |
| 1 | 37700-MEW-921 | SENSOR ASSY., SPEED | 1 |
| 1 | 90029-MBL-610 | BOLT, UBS (8X65) | 1 |
| 2 | 90030-MBL-610 | BOLT, UBS (8X110) | 2 |
| 1 | 90037-ME9-000 | BOLT, SPECIAL (10MM) | 1 |
| 1 | 90063-MB0-003 | BOLT, UBS (8X60) | 1 |
| 1 | 90065-HA8-680 | BOLT, UBS (8X45) | 1 |
| 1 | 90241-MB0-000 | NUT, LOCK (30MM) | 1 |
| 1 | 90241-MEW-920 | NUT, LOCK (30MM) | 1 |
| 1 | 90242-MB0-000 | NUT, LOCK (64MM) | 1 |
| 90244-MCH-000 | NUT, LOCK (64MM) | ||
| 1 | 90401-MEW-920 | WASHER, THRUST SPECIAL (20X35X1.5) | 1 |
| 1 | 90409-952-000 | WASHER (10MM) | 1 |
| 1 | 90602-463-000 | CIRCLIP (OUTER) (28MM) | 1 |
| 1 | 90701-MG8-000 | PIN, DOWEL (10X24) | 1 |
| 1 | 91007-MCH-003 | BEARING, SPECIAL BALL (5206) (NTN) | 1 |
| 1 | 91008-300-008 | BEARING, BALL (5206) (TOYO) | 1 |
| 1 | 91012-MG7-003 | BEARING, RADIAL BALL (5206) | 1 |
| 1 | 91011-MB0-003 | BEARING, BALL (6303) (KOYO) | 1 |
| 1 | 91011-MB0-004 | BEARING, BALL (6303) (TOYO) | 1 |
| 1 | 91102-GE1-711 | BEARING, RADIAL BALL (6204) (TOYO) | 1 |
| 1 | 91205-MG7-003 | OIL SEAL (25X66X8.5) (ARAI) | 1 |
| 1 | 91301-MS9-003 | O-RING (64X2.5) | 1 |
| 2 | 91307-422-000 | O-RING (4.8X1.9) | 2 |
| 2 | 91313-MA6-005 | O-RING (4.8X1.9) (NOK) | 2 |
| 2 | 91314-MG7-003 | O-RING (69.5X3) (ARAI) | 2 |
| 1 | 94520-65120 | CIRCLIP (INNER) (65MM) | 1 |
| 1 | 95701-06016-00 | BOLT, FLANGE (6X16) | 1 |
| 4 | 96700-08022-17 | BOLT, SOCKET (8X22) | 4 |
