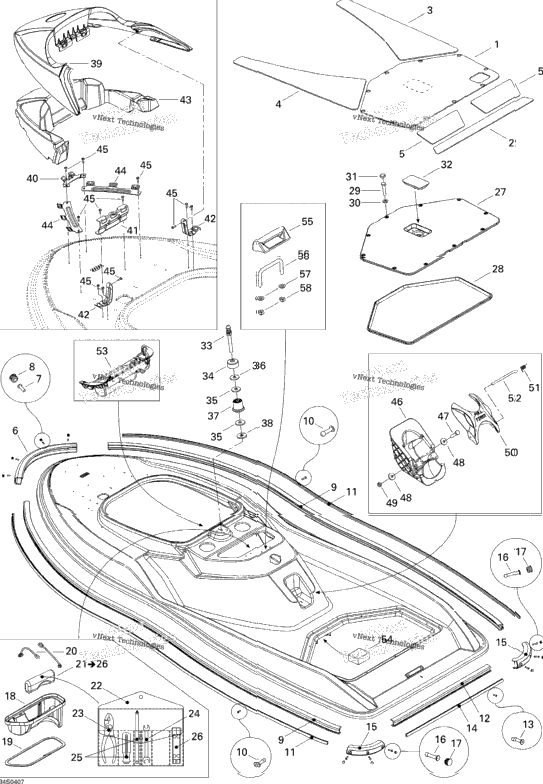

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 291001949 | Rear Door Carpet | ||
| 291002032 | Rear Carpet | ||
| 291001950 | RH Center Carpet | ||
| 291001951 | LH Center Carpet | ||
| 291002113 | Rear Lateral Carpet | ||
| 1 | 291000801 | BUMPER NOSE | 1 |
| 4 | 293150014 | Pop Rivet 3/16" | 4 |
| 4 | 291000339 | Bumper Plug, Black | 4 |
| 2 | 291000995 | Side Bumper | 2 |
| 42 | 293150005 | Pop Rivet 3/16" | 42 |
| 291002019 | Lateral Bumper Trim, Yellow | ||
| 1 | 291000997 | Rear Bumper | 1 |
| 6 | 293150005 | Pop Rivet 3/16" | 6 |
| 291002020 | Bumper Trim, yellow | ||
| 2 | 291001505 | Bumper Corner, Black | 2 |
| 6 | 293150013 | Pop Rivet 3/16" | 6 |
| 6 | 291000339 | Bumper Plug, Black | 6 |
| 269501251 | Central Luggage Tray | ||
| 1 | 219704372 | Was 293250087 Gasket | 1 |
| 2 | 269501299 | Strap | 2 |
| 294000687 | Tool Kit Includes 21 to 26 | ||
| XXXX | Not Available As Spare Part - Pouch Ass'y | ||
| XXXX | Not Available As Spare Part - Pliers | ||
| 529017300 | FORK WRENCH | ||
| 529019200 | DRIVER SCREW | ||
| 1 | 529014900 | Socket Wrench 10/13 mm | 1 |
| 269501298 | Rear Cover Ass'y | ||
| 1 | 219704365 | Was 293200017 Neoprene Seal | 1 |
| 10 | 207063060 | Hex. Screw M6 X 30 | 10 |
| 10 | 234061600 | Stainless, Flat Washer M6 | 10 |
| 10 | 414436900 | Black Snap Cap | 10 |
| 291002045 | Foam Latch | ||
| 1 | 291002040 | LATCH STUD | 1 |
| 293830025 | Rubber Pad | ||
| 2 | 234002600 | Flat Washer 10 mm, Stainless | 2 |
| 1 | 234001600 | Flat Washer 10 mm, Stainless | 1 |
| 291001089 | Spacer Ring | ||
| 1 | 291000628 | RUBBER WASHER | 1 |
| 277001238 | Front Cover | ||
| 291002021 | Deflector Support | ||
| 291002037 | Central Deflector Support | ||
| 291002038 | Rear Deflector Support | ||
| 291002039 | Deflector Foam | ||
| 291002041 | Lateral Deflector Support | ||
| 12 | 243041660 | HEX. PLASTITE SCREW M5.28 X 16 | 12 |
| 1 | 269001019 | BASE | 1 |
| 1 | 207063060 | Hex. Screw M6 X 30 | 1 |
| 2 | 234062600 | Flat Washer M6, Stainless | 2 |
| 1 | 232561600 | Hex. Elastic Stop Nut M6 | 1 |
| 1 | 269001129 | BASE DOOR | 1 |
| 1 | 269001130 | DOOR SPRING | 1 |
| 1 | 269001131 | DOOR SHAFT | 1 |
| 1 | 269501290 | EXTINGUISHER TRAY | 1 |
| 291002031 | Deck Foam | ||
| 269001138 | Pole Hook | ||
| 1 | 269001142 | U BOLT | 1 |
| 2 | 234061600 | Stainless, Flat Washer M6 | 2 |
| 2 | 232561600 | Hex. Elastic Stop Nut M6 | 2 |
