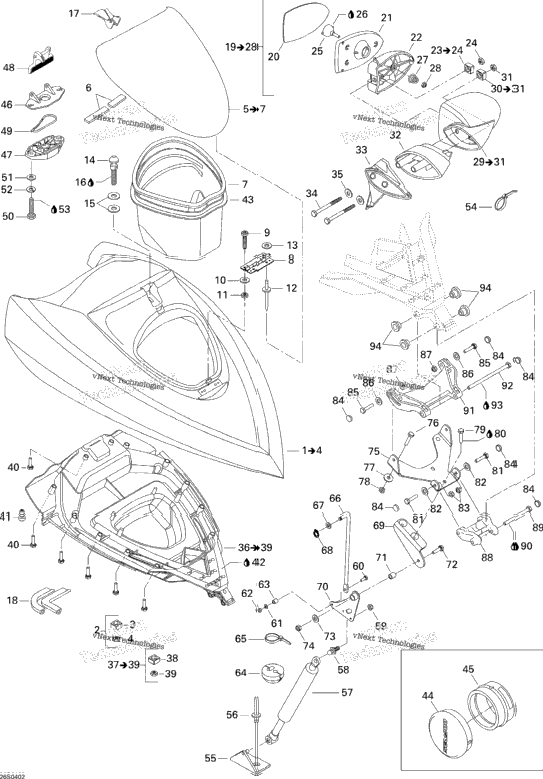

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 269501180 | Cover Includes 1 to 4 | ||
| 1 | 269500252 | M6 Nut Housing Ass'y Includes Items 2 to 4 | 1 |
| 1 | 269500108 | Nut Housing | 1 |
| 1 | 232061600 | Hex. Nut M6 | 1 |
| 269501261 | Storage Cover Includes 1 to 4 | ||
| 269501185 | Access Cover Includes 5 to 7 | ||
| 1 | 219704364 | Neoprene Seal (1PAC=3M) | 1 |
| 1 | 219704365 | Was 293200017 Neoprene Seal | 1 |
| 269501263 | Access Cover Includes 5 to 7 | ||
| 1 | 269500338 | HINGE | 1 |
| 2 | 205451660 | Socket Head Screw M5 X 16 | 2 |
| 2 | 234052600 | Flat Washer 5 mm, Stainless | 2 |
| 2 | 232551600 | Hex. Elastic Nut M5 | 2 |
| 2 | 204000081 | Pop Rivet 3/16" | 2 |
| 1 | 291001242 | Anchoring Stud | 1 |
| 2 | 234062600 | Flat Washer M6, Stainless | 2 |
| 1 | 293800060 | Loctite 243, 10 ml | 1 |
| 1 | 269501125 | Latch | 1 |
| 269500685 | RH Mirror Ass’Y Includes 19 to 28 | ||
| 269500687 | RH Mirror LE | ||
| 269500697 | Frame Mirror LE | ||
| 269500807 | Housing Support LE | ||
| 1 | 269500813 | Nut Housing Ass’Y Includes 23 to 24 | 1 |
| 1 | 232581600 | Hex. Elastic Nut M8 LE | 1 |
| 269500079 | MIRROR BALL JOINT LE | ||
| 293550010 | Synthetic Grease, 400 G LE | ||
| 1 | 269500453 | Mirror Spring LE | 1 |
| 1 | 232561600 | Hex. Elastic Stop Nut M6 LE | 1 |
| 269501182 | Mirror Shell Includes 29 to 31 | ||
| 1 | 269500813 | Nut Housing Ass’Y Includes 30 to 31 | 1 |
| 269501183 | RH Mirror Support LE | ||
| 269500792 | RH Spacer LE | ||
| 269500688 | LH Mirror Ass'y Includes 19 to 28 | ||
| 269500788 | LH Mirror LE | ||
| 269501184 | LH Mirror Support LE | ||
| 269500793 | LH Spacer LE | ||
| 4 | 230082060 | HEX. SCREW M8 X 120 LE | 4 |
| 4 | 234082600 | Flat Washer 8 mm, Stainless LE | 4 |
| 269500000 | Lower Storage Cover Includes Items 36 to 39 | ||
| 2 | 269500252 | M6 Nut Housing Ass'y Includes Items 37 to 39 | 2 |
| 18 | 241141360 | Hex. Flange Screw K40 X 13 | 18 |
| 2 | 293830005 | Rubber Bumper | 2 |
| 1 | 413708300 | Glue Tube, Loctite 454, 20 G LE | 1 |
| 269501121 | GLOVE BOX | ||
| 293000068 | Gauge Cap STD | ||
| 293720047 | Gauge Support STD | ||
| 1 | 269700076 | Latch Cover | 1 |
| 1 | 269000015 | Latch Base | 1 |
| 1 | 269700077 | Latch Lever | 1 |
| 269700017 | Latch Spring | ||
| 2 | 207063060 | Hex. Screw M6 X 30 | 2 |
| 2 | 234061600 | Stainless, Flat Washer M6 | 2 |
| 2 | 234161601 | Lock Washer Helical M6 | 2 |
| 2 | 293750008 | Tie Wrap 368 mm LE / INT | 2 |
| 1 | 291001618 | Shock Support | 1 |
| 2 | 293150037 | Avdel Rivet 3/16" | 2 |
| 1 | 269500988 | GAS SHOCK | 1 |
| 1 | 250300016 | Ball Head Stud | 1 |
| 1 | 232581600 | Hex. Elastic Nut M8 | 1 |
| 1 | 207141660 | Hex. Screw M4 X 16 | 1 |
| 1 | 234041600 | Flat Washer 4 mm, Stainless | 1 |
| 1 | 232541600 | Elastic Stop Nut M4 | 1 |
| 269500841 | Spacer | ||
| 1 | 293720070 | CABLE GROMMET | 1 |
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
| 1 | 269500842 | ROD | 1 |
| 1 | 234061600 | Stainless, Flat Washer M6 | 1 |
| 293370005 | CIRCLIP 6 MM | ||
| 1 | 269500846 | SUPPORT LEVER | 1 |
| 269501020 | LEVER | ||
| 1 | 269501022 | SPACER | 1 |
| 1 | 207163060 | Hex. Screw M6 X 30 | 1 |
| 1 | 234062600 | Flat Washer M6, Stainless | 1 |
| 1 | 232561600 | Hex. Elastic Stop Nut M6 | 1 |
| 1 | 269500703 | PIVOT SUPPORT | 1 |
| 2 | 207162060 | Hex. Forming Screw M6 X 20 | 2 |
| 2 | 232561600 | Hex. Elastic Stop Nut M6 | 2 |
| 2 | 211000022 | HEX. SPECIAL SCREW M6 X 25 | 2 |
| 6 | 414436900 | Black Snap Cap | 6 |
| 1 | 269500704 | FRONT ARM | 1 |
| 1 | 207066060 | HEX. SCREW M6 X 60 | 1 |
| 269500705 | REAR ARM | ||
| 1 | 230060060 | Hex. Screw M6 X 100 | 1 |
| 4 | 269500706 | Sleeve | 4 |
