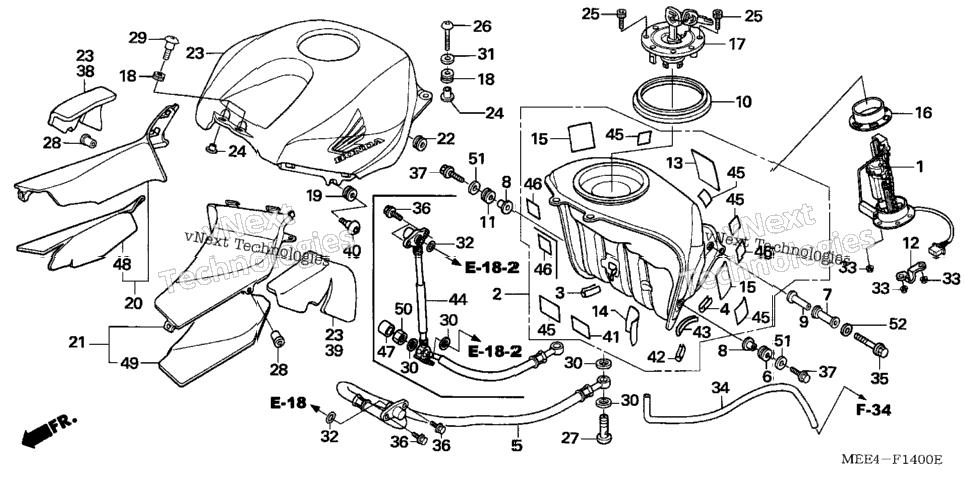

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 16700-MEE-D01 | PUMP ASSY., FUEL | 1 |
| 1 | 16700-MEE-D02 | PUMP ASSY., FUEL | 1 |
| 17506-MEE-D00ZA | TANK SET, FUEL *NH1* (BLACK) | ||
| 1 | 17516-HC0-000 | TRIM, FUEL TANK | 1 |
| 1 | 17516-KCZ-000ZB | TRIM, FUEL TANK *NH1* (BLACK) | 1 |
| 17533-MEE-000 | RUBBER, L. FR. FUEL TANK MOUNTING | ||
| 2 | 17534-MEE-000 | RUBBER, RR. TANK MOUNTING | 2 |
| 17535-MEE-D00 | COLLAR, FR. TANK SETTING | ||
| 2 | 17538-MEE-D00 | COLLAR, RR. TANK SETTING | 2 |
| 1 | 17543-MEE-000 | SEAL, FUEL TANK | 1 |
| 17545-MEE-000 | RUBBER, R. FR. FUEL TANK MOUNTING | ||
| 17553-MEE-000 | CLIP, BREATHER TUBE | ||
| 1 | 17556-MEE-300 | FILM A, PROTECTOR | 1 |
| 1 | 17557-MEE-300 | FILM B, PROTECTOR | 1 |
| 2 | 17558-MEE-940 | CUSHION, FUEL TANK | 2 |
| 1 | 17574-MEE-000 | GASKET, BASE | 1 |
| 1 | 17620-MCJ-751 | CAP, FUEL FILLER | 1 |
| 4 | 33712-KT1-670 | RUBBER, TAILLIGHT | 4 |
| 2 | 64535-MCJ-000 | RUBBER, COWL (LOWER) | 2 |
| 1 | 64560-MEE-A00ZD | COVER SET, R. AIR DUCT (TYPE4) (WL) | 1 |
| 1 | 64560-MEE-A00ZE | COVER SET, R. AIR DUCT (TYPE1) (WL) | 1 |
| 1 | 64560-MEE-A00ZF | COVER SET, R. AIR DUCT (TYPE2) (WL) | 1 |
| 64560-MEE-A00ZG | COVER SET, R. AIR DUCT (TYPE3) (WL) | ||
| 1 | 64570-MEE-A00ZD | COVER SET, L. AIR DUCT (TYPE4) (WL) | 1 |
| 64570-MEE-A00ZE | COVER SET, L. AIR DUCT (TYPE1) (WL) | ||
| 1 | 64570-MEE-A00ZF | COVER SET, L. AIR DUCT (TYPE2) (WL) | 1 |
| 64570-MEE-A00ZG | COVER SET, L. AIR DUCT (TYPE3) (WL) | ||
| 2 | 64586-MBW-D20 | RUBBER, AIR DUCT COVER SETTING | 2 |
| 83150-MEE-A00ZE | SHELTER SET, TOP (TYPE4) (WL) | ||
| 1 | 83150-MEE-A00ZF | SHELTER SET, TOP (TYPE1) (WL) | 1 |
| 83150-MEE-A00ZG | SHELTER SET, TOP (TYPE2) (WL) | ||
| 83150-MEE-A00ZH | SHELTER SET, TOP (TYPE3) (WL) | ||
| 4 | 84706-163-670 | COLLAR, TAILLIGHT MOUNTING | 4 |
| 3 | 90074-MT4-000 | BOLT, SOCKET (4X21) | 3 |
| 2 | 90085-MAJ-A20 | BOLT, SPECIAL (6X22) | 2 |
| 1 | 90108-MBG-000 | BOLT, BANJO (12MM) | 1 |
| 2 | 90111-KW3-003 | NUT, COWL SETTING (5MM) | 2 |
| 2 | 90021-MEE-940 | BOLT, SPECIAL (6X18) | 2 |
| 4 | 90428-PD6-003 | WASHER, SEALING (12MM) | 4 |
| 2 | 90525-428-900 | WASHER, PLAIN (6MM) | 2 |
| 1 | 91302-MCA-000 | O-RING (7.8X1.9) | 1 |
| 6 | 94050-06080 | NUT, FLANGE (6MM) | 6 |
| 17559-MEE-000 | TUBE, DRAIN | ||
| 2 | 95801-06035-00 | BOLT, FLANGE (6X35) | 2 |
| 2 | 96001-06008-00 | BOLT, FLANGE (6X8) | 2 |
| 2 | 96400-08032-00 | BOLT, FLANGE (8X32) | 2 |
| 1 | 83157-MEE-A00 | MAT, R. TOP SHELTER | 1 |
| 83158-MEE-A00 | MAT, L. TOP SHELTER | ||
| 2 | 90114-MCJ-000 | SCREW, SPECIAL (6X14) | 2 |
| 1 | 17515-MEG-300 | TAPE, TANK PROTECTOR | 1 |
| 1 | 17516-MEE-D00 | TRIM, FUEL TANK | 1 |
| 17526-MEE-D01 | HOSE B, FUEL FEED | ||
| 5 | 17528-KCZ-930 | TAPE B, TANK GUARD | 5 |
| 2 | 17528-MR4-900 | TAPE, TANK GUARD | 2 |
| 32109-MEE-000 | COVER, SEALING NUT | ||
| 64591-MEE-A00 | MAT, R. AIR DUCT COVER | ||
| 1 | 64592-MEE-A00 | MAT, L. AIR DUCT COVER | 1 |
| 1 | 90201-PD1-000 | NUT A, SEALING (12MM) | 1 |
| 2 | 90524-030-000 | WASHER A, HANDLE HOLDER SETTING | 2 |
| 2 | 94101-06000 | WASHER, PLAIN (6MM) | 2 |
| 2 | 94101-06080 | WASHER, PLAIN (6MM) | 2 |
| 2 | 94101-06800 | WASHER, PLAIN (6MM) | 2 |
