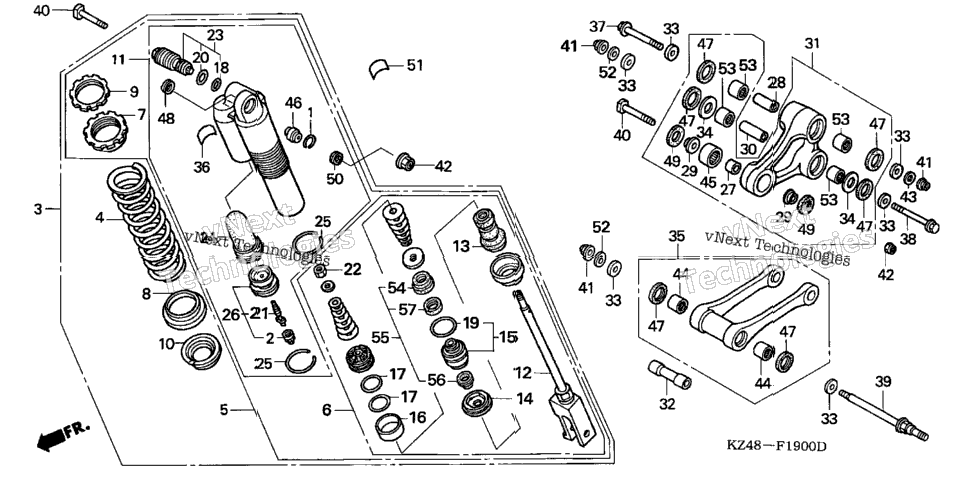

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 41405-HA7-670 | RING, STOPPER | 1 |
| 1 | 51453-KK0-004 | CAP, AIR VALVE | 1 |
| 52400-KSR-731 | CUSHION ASSY., RR. (KAYABA) | ||
| 52401-KZ4-J01 | SPRING, RR. SHOCK ABSORBER (4.6) | ||
| 52402-KZ4-J01 | SPRING, RR. SHOCK ABSORBER (4.4KGF/MM) (Optional). | ||
| 1 | 52403-KZ4-J01 | SPRING, RR. SHOCK ABSORBER (4.8) (Optional). | 1 |
| 52404-KZ4-J01 | SPRING, RR. SHOCK ABSORBER (5.0) (Optional). | ||
| 52410-KSR-731 | DAMPER, RR. | ||
| 52421-KSR-731 | ROD, PISTON | ||
| 52422-KS6-701 | SEAT, SPRING (UPPER) (KAYABA) | ||
| 52422-KZ4-J31 | WASHER, SPRING SEAT | ||
| 52423-KS6-701 | NUT, ADJUSTER (KAYABA) | ||
| 52424-KSR-711 | SEAT, SPRING (LOWER) | ||
| 52425-KSR-731 | CASE, RR. | ||
| 52426-KSR-711 | ROD | ||
| 1 | 52427-KZ4-J31 | RUBBER, BUMPER | 1 |
| 52428-KZ4-901 | CAP, CASE | ||
| 52429-KSR-J01 | CASE, ROD GUIDE (KAYABA) | ||
| 1 | 52431-MAC-681 | RING, PISTON | 1 |
| 2 | 52432-KZ4-901 | O-RING (37.5X2.0) | 2 |
| 1 | 52433-MAC-741 | O-RING (21.5X1.5) | 1 |
| 52434-KZ4-901 | O-RING (39.7X3.5) | ||
| 1 | 52435-MAC-741 | O-RING (25.5X2.0) | 1 |
| 52437-KA3-731 | CORE, VALVE | ||
| 1 | 52438-KA3-731 | NUT, HEX. (12MM) | 1 |
| 52440-KZ4-A91 | ADJUSTER, COMPRESSION DAMPING FORCE | ||
| 1 | 52451-KZ4-901 | BLADDER | 1 |
| 52452-KZ4-003 | RING, SNAP (KAYABA) | ||
| 1 | 52453-KZ4-003 | CAP, BLADDER | 1 |
| 1 | 52464-KRN-710 | COLLAR D, CUSHION ARM | 1 |
| 1 | 52463-KZ4-J40 | COLLAR C, CUSHION ARM | 1 |
| 2 | 52466-KRN-710 | COLLAR D, CUSHION ARM SIDE | 2 |
| 1 | 52464-KZ4-J20 | COLLAR B, CUSHION | 1 |
| 1 | 52465-KSR-710 | ARM SUB-ASSY., CUSHION | 1 |
| 1 | 52473-KZ4-J20 | COLLAR A, CONNECTING ROD | 1 |
| 6 | 52475-KZ4-J20 | COLLAR, LINK SIDE | 6 |
| 2 | 52476-KZ4-J20 | WASHER, THRUST | 2 |
| 52479-KSR-710 | ROD SUB-ASSY., CUSHION CONNECTING | ||
| 1 | 87516-KZ1-600 | LABEL, RR. DAMPER WARNING | 1 |
| 1 | 90130-KZ4-J20 | BOLT, LINK (12X96) | 1 |
| 1 | 90130-KZ4-J40 | BOLT, LINK (12X81.5) | 1 |
| 1 | 90131-KRN-710 | BOLT, LINK (12X120) | 1 |
| 2 | 90153-KZ4-710 | BOLT, CUSHION (LOWER) (10X43.5) | 2 |
| 3 | 90306-KBP-901 | NUT, U (12MM) | 3 |
| 2 | 90306-KZ4-711 | NUT, U (10MM) | 2 |
| 1 | 90501-KZ4-J40 | WASHER, PLAIN (12MM) | 1 |
| 2 | 91053-KZ4-J21 | BEARING, NEEDLE (20X26X14) | 2 |
| 1 | 91074-KRN-711 | BEARING, NEEDLE (19X26X13) | 1 |
| 1 | 91074-MAC-741 | BEARING, SPHERICAL (10) | 1 |
| 6 | 91262-KZ3-731 | DUST SEAL (25X32X4) | 6 |
| 1 | 91351-KZ3-731 | DUST SEAL, RR. CUSHION PIVOT | 1 |
| 2 | 91351-KRN-711 | DUST SEAL (17.5X26X3) | 2 |
| 1 | 91351-MAC-671 | DUST SEAL (16X26X3) | 1 |
| 2 | 90501-KRN-710 | WASHER, PLAIN (12MM) | 2 |
| 4 | 91051-KSC-003 | BEARING, NEEDLE (20X26X15) | 4 |
| 1 | 52434-KSR-711 | RUBBER, STOPPER | 1 |
| 52436-KSR-731 | OIL SEAL SET | ||
| 52437-KSR-711 | DUST SEAL | ||
| 1 | 52439-KSR-711 | OIL SEAL | 1 |
