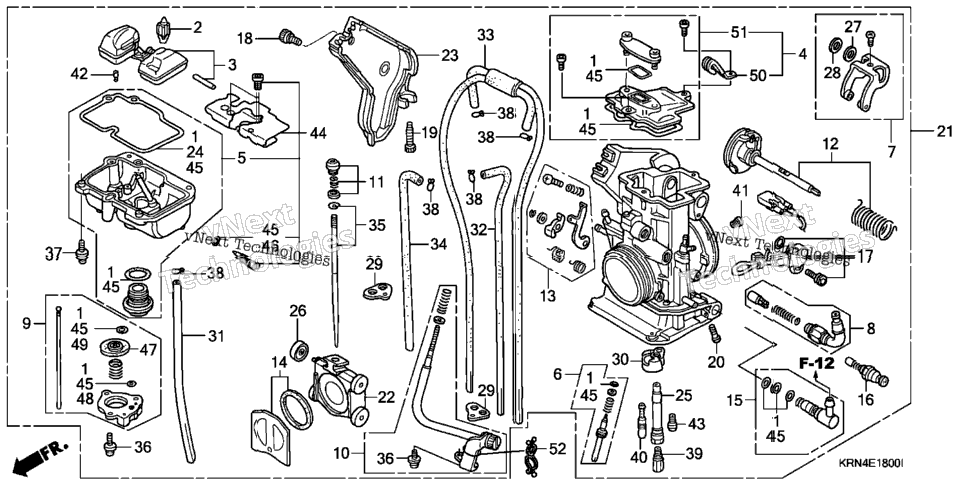

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 16010-KRN-671 | GASKET SET | 1 |
| 1 | 16011-KZ3-J11 | VALVE SET, FLOAT | 1 |
| 1 | 16013-MEB-671 | FLOAT SET | 1 |
| 1 | 16014-KRN-671 | TOP SET | 1 |
| 16015-KRN-731 | CHAMBER SET, FLOAT | ||
| 1 | 16016-KSC-671 | SCREW SET A | 1 |
| 16018-MEB-671 | ARM SET, LINK | ||
| 1 | 16019-MEB-671 | START SET, HOT | 1 |
| 16021-KRN-731 | DIAPHRAGM SET, PUMP | ||
| 1 | 16028-MEB-671 | SCREW SET B | 1 |
| 16029-MEB-671 | SCREW SET, JET NEEDLE | ||
| 16032-MEB-671 | SHAFT SET, THROTTLE | ||
| 16033-MEB-671 | LEVER SET, PUMP | ||
| 1 | 16037-MEB-671 | VALVE SET, FLOATING | 1 |
| 1 | 16038-KRN-671 | JOINT SET, FUEL | 1 |
| 1 | 16046-MEB-671 | VALVE SET, STARTER | 1 |
| 16060-KRN-671 | SENSOR ASSY., THROTTLE | ||
| 1 | 16080-MEB-671 | BOLT, COVER | 1 |
| 16081-KRN-671 | BOLT, STOPPER | ||
| 1 | 16083-MEB-671 | SCREW, PAN | 1 |
| 16100-KRN-734 | CARBURETOR ASSY. (FCR01B A) (FRAME NO.) | ||
| 16100-KRN-735 | CARBURETOR ASSY. (FCR01B B) | ||
| 16112-MEB-671 | VALVE, THROTTLE | ||
| 1 | 16157-MEN-671 | COVER, THROTTLE | 1 |
| 1 | 16163-MEB-671 | GASKET, FLOAT CHAMBER | 1 |
| 1 | 16165-MEB-671 | HOLDER, NEEDLE JET | 1 |
| 1 | 16172-MEB-671 | ROLLER | 1 |
| 1 | 16177-MEB-671 | WASHER, PLAIN (PO) | 1 |
| 1 | 16178-MEB-671 | WASHER, PLAIN (SUS) | 1 |
| 2 | 16179-KZ4-690 | BINDER | 2 |
| 1 | 16185-MEN-671 | PLATE, BUFFER | 1 |
| 1 | 16196-MEB-671 | TUBE, OVERFLOW | 1 |
| 1 | 16197-MEB-671 | TUBE, AIR VENT | 1 |
| 1 | 16198-MEB-671 | TUBE, AIR VENT | 1 |
| 1 | 16199-MEB-671 | TUBE, AIR VENT | 1 |
| 16201-MEN-671 | NEEDLE SET, JET (NCYP) (Optional). | ||
| 16202-MEN-671 | NEEDLE SET, JET (NCYQ) | ||
| 16203-MEN-671 | NEEDLE SET, JET (NCYR) (Optional). | ||
| 16204-MEN-671 | NEEDLE SET, JET (NCYS) (Optional). | ||
| 16230-MEN-671 | NEEDLE SET, JET (NCVP) (Optional). | ||
| 16231-MEN-671 | NEEDLE SET, JET (NCVQ) (Optional). | ||
| 16232-MEN-671 | NEEDLE SET, JET (NCVR) (Optional). | ||
| 1 | 16233-MEN-671 | NEEDLE SET, JET (NCVS) (Optional). | 1 |
| 16201-KRN-731 | NEEDLE SET, JET (NCYN) (Optional). | ||
| 16229-KRN-731 | NEEDLE SET, JET (NCVN) (Optional). | ||
| 4 | 93892-04008-08 | SCREW-WASHER (4X8) | 4 |
| 4 | 93892-04008-18 | SCREW-WASHER (4X8) | 4 |
| 4 | 93892-04014-08 | SCREW-WASHER (4X14) | 4 |
| 4 | 93892-04014-18 | SCREW-WASHER (4X14) | 4 |
| 5 | 95002-02079 | CLIP, TUBE (B7) | 5 |
| 1 | 99101-357-1620 | JET, MAIN (#162) (Optional). | 1 |
| 1 | 99113-GHB-1620 | JET, MAIN (#162) (Optional). | 1 |
| 1 | 99101-357-1650 | JET, MAIN (#165) (Optional). | 1 |
| 1 | 99101-357-1680 | JET, MAIN (#168) (Optional). | 1 |
| 1 | 99101-357-1700 | JET, MAIN (#170) (Optional). | 1 |
| 1 | 99113-GHB-1650 | JET, MAIN (#165) (Optional). | 1 |
| 1 | 99113-GHB-1680 | JET, MAIN (#168) (Optional). | 1 |
| 1 | 99113-GHB-1700 | JET, MAIN (#170) (Optional). | 1 |
| 1 | 99101-357-1720 | JET, MAIN (#172) (Optional). | 1 |
| 1 | 99101-357-1750 | JET, MAIN (#175) (Optional). | 1 |
| 1 | 99101-357-1780 | JET, MAIN (#178) (Optional). | 1 |
| 1 | 99101-357-1800 | JET, MAIN (#180) (Optional). | 1 |
| 1 | 99101-357-1820 | JET, MAIN (#182) (Optional). | 1 |
| 1 | 99113-GHB-1780 | JET, MAIN (#178) (Optional). | 1 |
| 1 | 99113-GHB-1800 | JET, MAIN (#180) (Optional). | 1 |
| 1 | 99113-GHB-1820 | JET, MAIN (#182) (Optional). | 1 |
| 1 | 99103-GBF-0400 | JET, SLOW (#40) (Optional). | 1 |
| 1 | 99103-KA3-0400 | JET, SLOW (#40) (Optional). | 1 |
| 1 | 99103-440-0400 | JET, SLOW (#40) (Optional). | 1 |
| 1 | 99103-GBF-0450 | JET, SLOW (#45) (Optional). | 1 |
| 1 | 99103-KA3-0380 | JET, SLOW (#38) (Optional). | 1 |
| 1 | 99103-KA3-0450 | JET, SLOW (#45) (Optional). | 1 |
| 1 | 99103-KBA-0380 | JET, SLOW (#38) (Optional). | 1 |
| 1 | 99103-440-0380 | JET, SLOW (#38) (Optional). | 1 |
| 1 | 99103-440-0420 | JET, SLOW (#42) (Optional). | 1 |
| 1 | 99103-440-0450 | JET, SLOW (#45) (Optional). | 1 |
| 1 | 99103-GBF-0480 | JET, SLOW (#48) (Optional). | 1 |
| 1 | 99103-440-0480 | JET, SLOW (#48) (Optional). | 1 |
| 99104-MEB-1000 | JET, SLOW AIR (#100) | ||
| 1 | 99108-KRN-0700 | JET, LEAK (#70) | 1 |
| 1 | 99112-KRN-0680 | JET, BY-STARTER (#68) | 1 |
