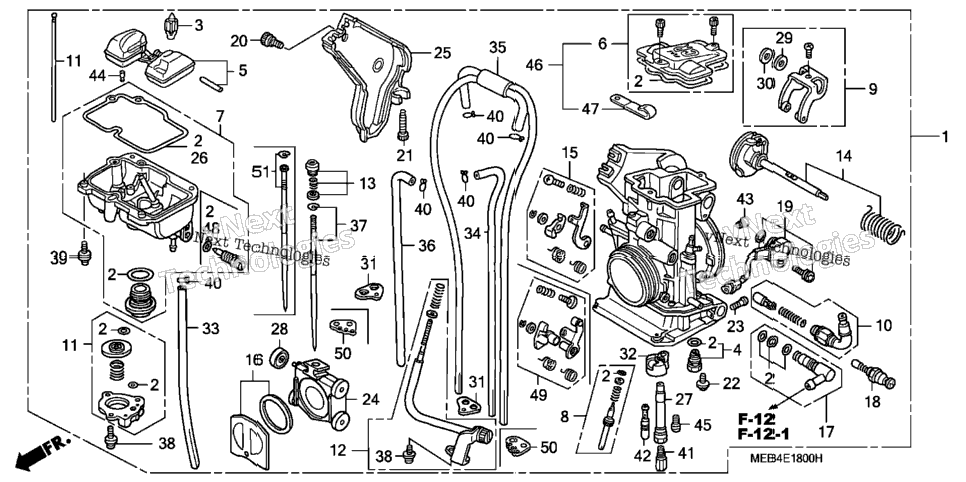

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 16100-MEN-734 | CARBURETOR ASSY. (FCR00D A) Use up to Engine SN 2350033 | ||
| 16100-MEN-735 | CARBURETOR ASSY. (FCR00D B) | ||
| 1 | 16010-MEN-671 | GASKET SET | 1 |
| 1 | 16011-KZ3-J11 | VALVE SET, FLOAT | 1 |
| 1 | 16013-MEB-671 | FLOAT SET | 1 |
| 16072-MEN-731 | TOP SET Use from Engine SN 2350034 | ||
| 16015-KRN-731 | CHAMBER SET, FLOAT | ||
| 1 | 16016-KSC-671 | SCREW SET A | 1 |
| 16018-MEB-671 | ARM SET, LINK | ||
| 1 | 16019-MEB-671 | START SET, HOT | 1 |
| 1 | 16021-MEB-771 | DIAPHRAGM SET, PUMP | 1 |
| 1 | 16028-MEB-671 | SCREW SET B | 1 |
| 16029-MEB-671 | SCREW SET, JET NEEDLE | ||
| 16032-MEB-671 | SHAFT SET, THROTTLE | ||
| 16033-MEB-671 | LEVER SET, PUMP | ||
| 1 | 16037-MEB-671 | VALVE SET, FLOATING | 1 |
| 1 | 16038-MEB-671 | JOINT SET, FUEL | 1 |
| 1 | 16046-MEB-671 | VALVE SET, STARTER | 1 |
| 16060-MEB-671 | SENSOR ASSY., THROTTLE | ||
| 1 | 16080-MEB-671 | BOLT, COVER | 1 |
| 16081-MEB-671 | BOLT, STOPPER Use up to Engine SN 2350033 | ||
| 1 | 16083-MEB-671 | SCREW, PAN | 1 |
| 16112-MEB-671 | VALVE, THROTTLE | ||
| 1 | 16157-MEN-671 | COVER, THROTTLE | 1 |
| 1 | 16163-MEB-671 | GASKET, FLOAT CHAMBER | 1 |
| 1 | 16165-MEB-671 | HOLDER, NEEDLE JET | 1 |
| 1 | 16172-MEB-671 | ROLLER | 1 |
| 1 | 16177-MEB-671 | WASHER, PLAIN (PO) | 1 |
| 1 | 16178-MEB-671 | WASHER, PLAIN (SUS) | 1 |
| 2 | 16179-KZ4-690 | BINDER | 2 |
| 1 | 16185-MEN-671 | PLATE, BUFFER | 1 |
| 1 | 16196-MEB-671 | TUBE, OVERFLOW | 1 |
| 1 | 16197-MEB-671 | TUBE, AIR VENT | 1 |
| 1 | 16198-MEB-671 | TUBE, AIR VENT | 1 |
| 1 | 16199-MEB-671 | TUBE, AIR VENT | 1 |
| 16201-MEN-731 | NEEDLE SET, JET (NGGN) (SEE OM FOR JET NEEDLE SPECS.) (Optional). | ||
| 16202-MEN-731 | NEEDLE SET, JET (NGGP) (SEE OM FOR JET NEEDLE SPECS.) (Optional). | ||
| 16203-MEN-731 | NEEDLE SET, JET (NGGQ) (SEE OM FOR JET NEEDLE SPECS.) | ||
| 1 | 16204-MEN-731 | NEEDLE SET, JET (NGGR) (SEE OM FOR JET NEEDLE SPECS.) (Optional). | 1 |
| 16205-MEN-731 | NEEDLE SET, JET (NGGS) (SEE OM FOR JET NEEDLE SPECS.) (Optional). | ||
| 16230-MEN-731 | NEEDLE SET, JET (NGJN) (SEE OM FOR JET NEEDLE SPECS.) (Optional). | ||
| 16231-MEN-731 | NEEDLE SET, JET (NGJP) (SEE OM FOR JET NEEDLE SPECS.) (Optional). | ||
| 16232-MEN-731 | NEEDLE SET, JET (NGJQ) (SEE OM FOR JET NEEDLE SPECS.) (Optional). | ||
| 1 | 16233-MEN-731 | NEEDLE SET, JET (NGJR) (SEE OM FOR JET NEEDLE SPECS.) (Optional). | 1 |
| 16234-MEN-731 | NEEDLE SET, JET (NGJS) (SEE OM FOR JET NEEDLE SPECS.) (Optional). | ||
| 4 | 93892-04008-08 | SCREW-WASHER (4X8) | 4 |
| 4 | 93892-04008-18 | SCREW-WASHER (4X8) | 4 |
| 4 | 93892-04014-08 | SCREW-WASHER (4X14) | 4 |
| 4 | 93892-04014-18 | SCREW-WASHER (4X14) | 4 |
| 5 | 95002-02079 | CLIP, TUBE (B7) | 5 |
| 1 | 99101-357-1650 | JET, MAIN (#165) (Optional). | 1 |
| 1 | 99101-357-1680 | JET, MAIN (#168) | 1 |
| 1 | 99101-357-1700 | JET, MAIN (#170) (Optional). | 1 |
| 1 | 99101-357-1720 | JET, MAIN (#172) (Optional). | 1 |
| 1 | 99101-357-1750 | JET, MAIN (#175) (Optional). | 1 |
| 1 | 99101-357-1780 | JET, MAIN (#178) (Optional). | 1 |
| 1 | 99113-GHB-1650 | JET, MAIN (#165) (Optional). | 1 |
| 1 | 99113-GHB-1680 | JET, MAIN (#168) | 1 |
| 1 | 99113-GHB-1700 | JET, MAIN (#170) (Optional). | 1 |
| 1 | 99113-GHB-1720 | JET, MAIN (#172) (Optional). | 1 |
| 1 | 99113-GHB-1780 | JET, MAIN (#178) (Optional). | 1 |
| 1 | 99101-357-1600 | JET, MAIN (#160) (Optional). | 1 |
| 1 | 99101-357-1620 | JET, MAIN (#162) (Optional). | 1 |
| 1 | 99113-GHB-1600 | JET, MAIN (#160) (Optional). | 1 |
| 1 | 99113-GHB-1620 | JET, MAIN (#162) (Optional). | 1 |
| 1 | 99101-357-1580 | JET, MAIN (#158) (Optional). | 1 |
| 1 | 99113-GHB-1580 | JET, MAIN (#158) (Optional). | 1 |
| 1 | 99103-GBF-0400 | JET, SLOW (#40) (Optional). | 1 |
| 1 | 99103-GBF-0450 | JET, SLOW (#45) (Optional). | 1 |
| 1 | 99103-GBF-0480 | JET, SLOW (#48) (Optional). | 1 |
| 1 | 99103-KA3-0400 | JET, SLOW (#40) (Optional). | 1 |
| 1 | 99103-KA3-0450 | JET, SLOW (#45) (Optional). | 1 |
| 1 | 99103-440-0400 | JET, SLOW (#40) (Optional). | 1 |
| 1 | 99103-440-0420 | JET, SLOW (#42) (Optional). | 1 |
| 1 | 99103-440-0450 | JET, SLOW (#45) (Optional). | 1 |
| 1 | 99103-440-0480 | JET, SLOW (#48) (Optional). | 1 |
| 1 | 99103-KA3-0380 | JET, SLOW (#38) (Optional). | 1 |
| 1 | 99103-KBA-0380 | JET, SLOW (#38) (Optional). | 1 |
| 1 | 99103-440-0380 | JET, SLOW (#38) (Optional). | 1 |
| 99104-MEB-1000 | JET, SLOW AIR (#100) | ||
| 1 | 99108-MEB-0550 | JET, LEAK (#55) (Optional). | 1 |
| 1 | 99112-MEB-0720 | JET, BY-STARTER (#72) | 1 |
| 16014-MEN-731 | TOP SET Use up to Engine SN 2350033 | ||
| 16014-MEN-732 | TOP SET Use from Engine SN 2350034 | ||
| 1 | 16088-MEN-731 | CLIP Use from Engine SN 2350034 | 1 |
