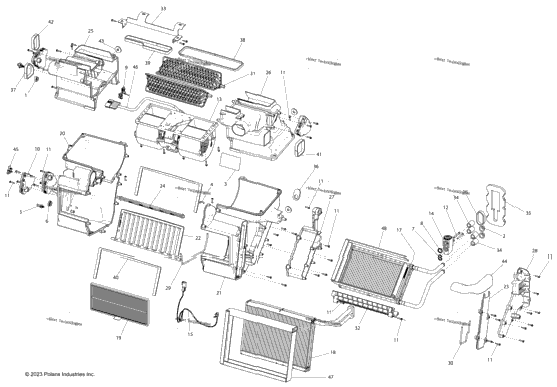

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 2638471 | ASM-HVAC UNIT [INCLUDES ALL] | 1 |
| 1 | 2211975 | K-COIL-HEATER [INCLUDES 2,17, 34<BR/> & 48] | 1 |
| 1 | 2211976 | K-COIL-EVAPORATOR [INCLUDES 5-8, 12, 14, 15, 18, 34, 44, 45<BR/> & 47] | 1 |
| 1 | 2211977 | K-BLOCK,TXV [INCLUDES 7, 8, 12 & 14] | 1 |
| 1 | 2211978 | K-EXTERIOR GASKET [INCLUDES 35, 36 & 43] | 1 |
| 1 | 2211979 | K-ACTUATOR [INCLUDES 10 & 11] | 1 |
| 1 | 2211980 | K-BLOWER, HEATER & A/C [INCLUDES 1, 9, 11, 13 & 46] | 1 |
| 1 | 2211981 | FILTER, RECIRCULATION [INCLUDES 19] | 1 |
| 1 | 2211982 | K-COVER-EVAPORATOR [INCLUDES 11, 23 & 30] | 1 |
| 1 | 2211983 | K-COVER-HEATER [INCLUDES 11, 27 & 28] | 1 |
| 1 | 2211984 | K-MODE BOX [INCLUDES 4, 10, 25, 26, 31, 33, 37-39,<BR/> 42 & 43] | 1 |
| 1 | 2211985 | K-BLEND BOX [INCLUDES 4, 10, 11, 20-22, 24, 29, 32,<BR/> 36, 40 & 43] | 1 |
| 1 | 2211986 | K-FREEZE PROBE [INCLUDES 15] | 1 |
| ------- | GROMMET - WIRE HARNESS | ||
| ------- | CAP NO W-8 PLASTIC PROTECT | ||
| ------- | DECAL, CAT SERIAL | ||
| ------- | CLIP, SPRING | ||
| ------- | TIE, CHRISTMAS TREE WIRE | ||
| ------- | GROMMET, 3/4" SPLIT | ||
| ------- | WASHER, 1/2" SLIM LINE | ||
| ------- | WASHER, 5/8" SLIM LINE | ||
| ------- | TIE, CABLE CLIP INST | ||
| ------- | ACTUATOR, 12V 126 DEG CCW | ||
| ------- | SCREW - #8-16X19.1MM TRI-LOBE | ||
| ------- | SCREW - M5-0.8X45.0MM SHCS | ||
| ------- | BLOWER ASSEMBLY - 12V HIGH PERF | ||
| ------- | TXV, 2.0 TON SLSW PARALLEL | ||
| ------- | SENSOR, EVAPORATOR TEMP | ||
| ------- | GASKET, BULK STRIP - MANIFOLD PERIMETER | ||
| ------- | HEATER COIL, TUBE AND FIN - ALUMINUM | ||
| ------- | EVAPORATOR COIL, TUBE AND FIN - ALUMINUM | ||
| ------- | FILTER - RECIRC/FRESH AIR | ||
| ------- | PLASTIC, INJECTION MOLDED - CASE, DRIVERS SIDE BLEND | ||
| ------- | PLASTIC, INJECTION MOLDED - CASE, PASSENGER SIDE BLEND | ||
| ------- | PLASTIC, INJECTION MOLDED - DOOR, BLEND (FLAG) | ||
| ------- | PLASTIC, INJECTION MOLDED - COVER, EVAPORATOR | ||
| ------- | PLASTIC, INJECTION MOLDED - DOOR, FRESH AIR | ||
| ------- | PLASTIC, INJECTION MOLDED - CASE, DRIVERS SIDE MODE | ||
| ------- | PLASTIC, INJECTION MOLDED - CASE, PASSENGER SIDE MODE | ||
| ------- | PLASTIC, INJECTION MOLDED - COVER, INNER TUBE | ||
| ------- | PLASTIC, INJECTION MOLDED - COVER, TUBE | ||
| ------- | RUBBER - 5MM DIA CORD-STOCK | ||
| ------- | PLASTIC, INJECTION MOLDED - BARREL DOOR | ||
| ------- | PLASTIC, INJECTION MOLDED - BRIDGE, HEATER SUPPORT | ||
| ------- | SHEET METAL COMPONENT - MOUNTING BRACKET, UNIT | ||
| ------- | GASKET, DIE CUT - TUBE INSULATION | ||
| ------- | GASKET, DIE CUT - TXV CLOSEOUT | ||
| ------- | GASKET, DIE CUT - DRAIN TUBE | ||
| ------- | GASKET, BULK STRIP - FLOOR, DRIVER SIDE | ||
| ------- | GASKET, BULK STRIP - DEFROST | ||
| ------- | GASKET, BULK STRIP - PANEL | ||
| ------- | GASKET, DIE CUT - BLEND FLOOR | ||
| ------- | GASKET, BULK STRIP - FLOOR, PASSENGER SIDE | ||
| ------- | GASKET, BULK STRIP - REAR DUCT | ||
| ------- | GASKET, DIE CUT - MOUNTING STUD | ||
| ------- | GASKET, DIE CUT - EVAPORATOR, TUBE INSULATION | ||
| ------- | CLIP - ATTACHMENT, RECEPTACLES FIR TREE STUD MOUNT DT AND DTM SERIES | ||
| ------- | WIRE ASSEMBLY - BLOWER HARNESS | ||
| ------- | GASKET, DIE CUT - EVAPORATOR | ||
| ------- | GASKET, DIE CUT - HEATER |
