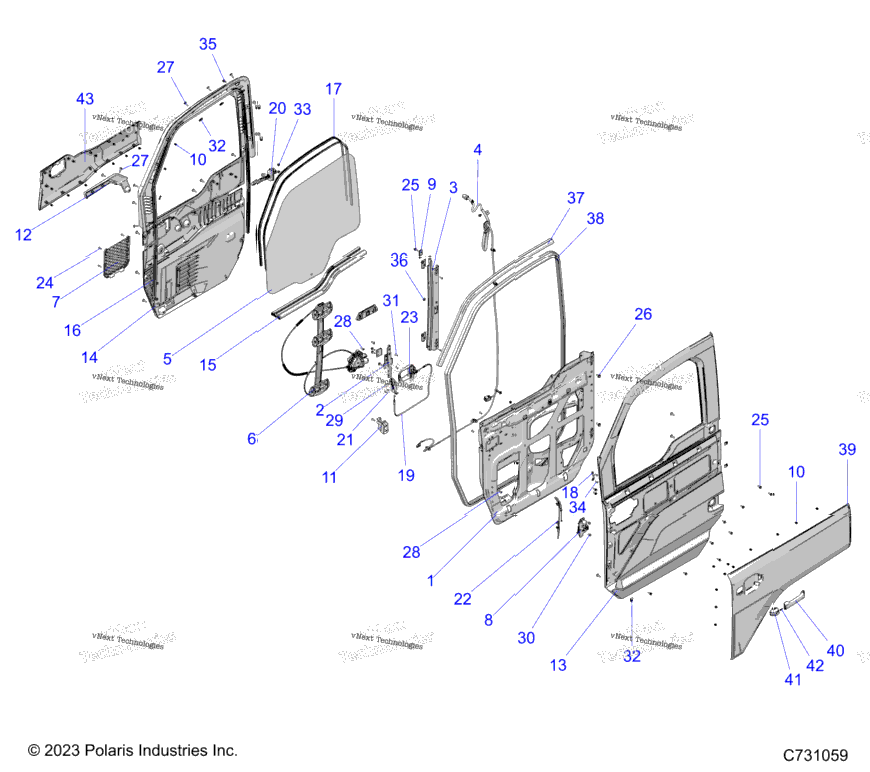

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 2638498 | ASM-DOOR,POWER,LH [INCLUDES 1-36, QTY 9 OF 10] | 1 |
| 1 | 2638499 | ASM-DOOR,POWER,RH [INCLUDES 1-36, QTY 9 OF 10] | 1 |
| 1 | 2212291 | K-SWITCH KEY,LOCK SET,3P [INCLS. 8] | 1 |
| 1 | 4080125 | KEY BLANK-KEYSWITCH [NOT SHOWN] | 1 |
| 1 | 1026970-329 | WELD-DOOR,FRONT,LH,BLK | 1 |
| 1 | 1026971-329 | WELD-DOOR,FRONT,RH,BLK | 1 |
| 1 | 1027471-329 | WELD-DOOR,TRACK,FRONT,LH,BLK | 1 |
| 1 | 1027472-329 | WELD-DOOR,TRACK,FRONT,RH,BLK | 1 |
| 1 | 1028152-329 | WELD-DOOR,TRACK,REAR,LH,BLK | 1 |
| 1 | 1028153-329 | WELD-DOOR,TRACK,REAR,RH,BLK | 1 |
| 1 | 2417271 | HARN-DOOR,FRONT | 1 |
| 1 | 2638319 | GLASS-WINDOW,DOOR,FRNT,LH | 1 |
| 1 | 2638320 | GLASS-WINDOW,DOOR,FRNT,RH | 1 |
| 1 | 2638502 | ASM-REGULATOR,POWER,LH | 1 |
| 1 | 2638503 | ASM-REGULATOR,POWER,RH | 1 |
| 1 | 2638874 | NET-DOOR,POCKET | 1 |
| ------- | ASM-ACTUATOR,EXT,IGN,LH | ||
| ------- | ASM-ACTUATOR,EXT,IGN,RH | ||
| 1 | 5272677-329 | BRKT-DOOR,TRACK,PLATE,SGL,BLK | 1 |
| 1 | 5272678-329 | BRKT-DOOR,TRACK,PLATE,DBL,BLK | 1 |
| 41 | 5456313 | CLIP-TRIM,PLASTIC,WHITE | 41 |
| 1 | 5459152 | CRADLE-DOOR,TRACK,LH | 1 |
| 1 | 5459153 | CRADLE-DOOR,TRACK,RH | 1 |
| 1 | 5459191 | HANDLE-DOOR,INT,LH | 1 |
| 1 | 5459192 | HANDLE-DOOR,INT,RH | 1 |
| 1 | 5465363-070 | PNL-DOOR,EXT,LH,BLK | 1 |
| 1 | 5465364-070 | PNL-DOOR,EXT,RH,BLK | 1 |
| 1 | 5465365-070 | PNL-DOOR,INT,LH,BLK | 1 |
| 1 | 5465366-070 | PNL-DOOR,INT,RH,BLK | 1 |
| 2 | 5526558 | SEAL-BELTLINE,FRONT | 2 |
| 1 | 5526530 | SEAL-WINDOW,RUN,FRONT [TO 08/07/2024] | 1 |
| 5526582 | SEAL-WINDOW,RUN,FRONT [FROM 08/07/2024] | ||
| 2 | 5526534 | SEAL-WINDOW,PERIM [TO 05/02/2024] | 2 |
| 5526571 | SEAL-WINDOW,PERIM [FROM 05/02/2024 | ||
| 1 | 5639567 | PIVOT-HANDLE,DOOR | 1 |
| 1 | 7083097 | CABLE-DOOR,INTERNAL | 1 |
| 1 | 7082883 | ASM-CHECK,DOOR | 1 |
| 1 | 7082930 | ASM-LATCH,LH | 1 |
| 1 | 7082931 | ASM-LATCH,RH | 1 |
| 1 | 7083094 | CABLE-DOOR,EXTERNAL | 1 |
| 1 | 7083068 | ACTUATOR-INTERIOR | 1 |
| 4 | 7512026 | SCREW | 4 |
| 15 | 7518529 | BOLT, M6 X 1.0 X 20 | 15 |
| 2 | 7518555 | HEX FLANGE BOLT, 8 MM X 1.25 MM | 2 |
| 18 | 7519650 | BOLT | 18 |
| 5 | 7519731 | SCR-TXPH-#14 X .75 HI-LO RIE | 5 |
| 2 | 7519997 | SCR-TXTH-M8X1.25X20 8.8 BLK | 2 |
| 2 | 7521331-12 | SCR-HXFL-M6X1.0X12 10.9 ZFB | 2 |
| 5 | 7527947-16 | SCR-TXBH-M6X1.0X16 10.9 ZTB | 5 |
| 7 | 7547674 | U-TYPE NUT, M6-1.0 | 7 |
| 4 | 7548027 | NUT-HXFL-M6X1.0 8 ZTB NYL | 4 |
| 4 | 7661637 | RIVET | 4 |
| 1 | 7661855 | TUFLOK RIVET | 1 |
| 1 | 7710849 | PALNUT,7/16-20 STEEL | 1 |
| 1 | 5526528 | SEAL-DOOR,WIPER | 1 |
| 1 | 5526532 | SEAL-DOOR,PERIM | 1 |
| 1 | 5459201-402 | PNL-DOOR,EXT,TRIM,LH,T.SILVER [TURBO SILVER] | 1 |
| 1 | 5459201-520 | PNL-DOOR,EXT,TRIM,LH,SSRED [SUNSET RED] | 1 |
| 1 | 5459201-587 | PNL-DOOR,EXT,TRIM,LH,PPC [POLARIS PURSUIT CAMO] | 1 |
| 1 | 5459202-402 | PNL-DOOR,EXT,TRIM,RH,T.SILVER [TURBO SILVER] | 1 |
| 1 | 5459202-520 | PNL-DOOR,EXT,TRIM,RH,SSRED [SUNSET RED] | 1 |
| 1 | 5459202-587 | PNL-DOOR,EXT,TRIM,RH,PPC [POLARIS PURSUIT CAMO] | 1 |
| 1 | 5459253 | HANDLE-ACTUATOR,STRUCT,EXT | 1 |
| 1 | 5458654 | ACTUATOR-EXT,COVER,LOCK | 1 |
| 1 | 7528227 | SCR-HANDLE,DOOR | 1 |
| 1 | 5459765-632 | PNL-DOOR,INT,TRIM,LH,MT TTM [TURBO SILVER] [SUNSET RED] | 1 |
| 1 | 5459765-587 | PNL-DOOR,INT,TRIM,LH,PPC [POLARIS PURSUIT CAMO] | 1 |
| 1 | 5459766-632 | PNL-DOOR,INT,TRIM,RH,MT TTM [TURBO SILVER] [SUNSET RED] | 1 |
| 1 | 5459766-587 | PNL-DOOR,INT,TRIM,RH,PPC [POLARIS PURSUIT CAMO] | 1 |
