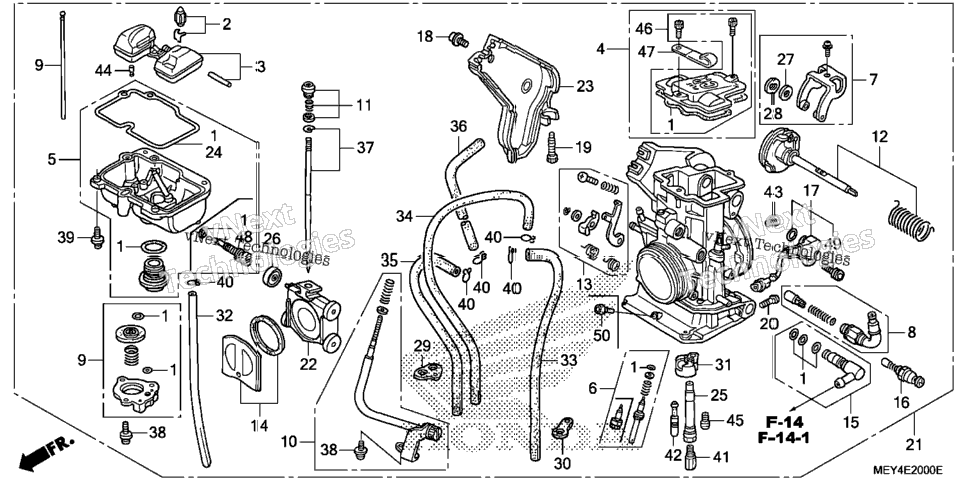

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 16010-MEN-671 | GASKET SET (CARBURETOR NO.) Use up to Engine SN FCR04A B | 1 |
| 1 | 16010-MEN-851 | GASKET SET (CARBURETOR NO.) Use from Engine SN FCR04A C | 1 |
| 1 | 16011-KZ3-J11 | VALVE SET, FLOAT | 1 |
| 1 | 16013-MEB-671 | FLOAT SET | 1 |
| 16014-MEN-731 | TOP SET (CARBURETOR NO.) Use up to Engine SN FCR04A A | ||
| 16014-MEN-732 | TOP SET (CARBURETOR NO.) Use from Engine SN FCR04A B | ||
| 16015-KRN-731 | CHAMBER SET, FLOAT (CARBURETOR NO.) Use up to Engine SN FCR04A B | ||
| 1 | 16015-MEN-851 | CHAMBER SET, FLOAT (CARBURETOR NO.) Use from Engine SN FCR04A C | 1 |
| 1 | 16016-KSC-671 | SCREW SET A | 1 |
| 16018-MEB-671 | ARM SET, LINK | ||
| 1 | 16019-MEB-671 | START SET, HOT | 1 |
| 1 | 16021-MEB-771 | DIAPHRAGM SET, PUMP | 1 |
| 1 | 16028-MEB-671 | SCREW SET B | 1 |
| 16029-MEB-671 | SCREW SET, JET NEEDLE | ||
| 16032-MEB-671 | SHAFT SET, THROTTLE | ||
| 16033-MEB-671 | LEVER SET, PUMP | ||
| 1 | 16037-MEB-671 | VALVE SET, FLOATING | 1 |
| 1 | 16038-MEB-671 | JOINT SET, FUEL | 1 |
| 1 | 16046-MEB-671 | VALVE SET, STARTER | 1 |
| 16060-MEB-671 | SENSOR ASSY., THROTTLE (CARBURETOR NO.) Use up to Engine SN FCR04A A | ||
| 1 | 16060-MEY-671 | SENSOR ASSY., THROTTLE (CARBURETOR NO.) Use from Engine SN FCR04A B | 1 |
| 1 | 16080-MEB-671 | BOLT, COVER | 1 |
| 1 | 16083-MEB-671 | SCREW, PAN | 1 |
| 16100-MEY-673 | CARBURETOR ASSY. (FCR04A B) (FRAME NO.) Use up to Engine SN 5K001854 | ||
| 16100-MEY-674 | CARBURETOR ASSY. (FCR04A C) (FRAME NO.) Use up to Engine SN 5K001854 | ||
| 16100-MEY-674 | CARBURETOR ASSY. (FCR04A C) (FRAME NO.) Use from Engine SN 5K001855 | ||
| 16112-MEB-671 | VALVE, THROTTLE | ||
| 1 | 16157-MEN-671 | COVER, THROTTLE | 1 |
| 1 | 16163-MEB-671 | GASKET, FLOAT CHAMBER | 1 |
| 1 | 16165-MEB-671 | HOLDER, NEEDLE JET | 1 |
| 1 | 16172-MEB-671 | ROLLER | 1 |
| 1 | 16177-MEB-671 | WASHER, PLAIN (PO) | 1 |
| 1 | 16178-MEB-671 | WASHER, PLAIN (SUS) | 1 |
| 1 | 16178-MEN-851 | BINDER (CARBURETOR NO.) Use from Engine SN FCR04A C | 1 |
| 1 | 16179-KZ4-690 | BINDER (CARBURETOR NO.) Use up to Engine SN FCR04A B | 1 |
| 1 | 16179-MEY-671 | BINDER (CARBURETOR NO.) Use from Engine SN FCR04A C | 1 |
| 16179-428-670 | BINDER (CARBURETOR NO.) Use up to Engine SN FGR04A B | ||
| 1 | 16185-MEN-671 | PLATE, BUFFER | 1 |
| 1 | 16196-MEB-671 | TUBE, OVERFLOW (CARBURETOR NO.) Use up to Engine SN FCR04A B | 1 |
| 1 | 16196-MEN-851 | TUBE, OVERFLOW (CARBURETOR NO.) Use from Engine SN FCR04A C | 1 |
| 1 | 16197-MEB-671 | TUBE, AIR VENT | 1 |
| 1 | 16198-MEY-671 | TUBE, AIR VENT | 1 |
| 1 | 16199-MEB-671 | TUBE, AIR VENT | 1 |
| 1 | 16199-MEY-671 | TUBE, AIR VENT | 1 |
| 16203-MEY-671 | NEEDLE SET, JET | ||
| 4 | 93892-04008-08 | SCREW-WASHER (4X8) | 4 |
| 4 | 93892-04008-18 | SCREW-WASHER (4X8) | 4 |
| 4 | 93892-04014-08 | SCREW-WASHER (4X14) | 4 |
| 4 | 93892-04014-18 | SCREW-WASHER (4X14) | 4 |
| 5 | 95002-02079 | CLIP, TUBE (B7) | 5 |
| 1 | 99101-357-1420 | JET, MAIN (#142) | 1 |
| 1 | 99103-GBF-0450 | JET, SLOW (#45) | 1 |
| 1 | 99103-KA3-0450 | JET, SLOW (#45) | 1 |
| 1 | 99103-440-0450 | JET, SLOW (#45) | 1 |
| 99104-MEB-1000 | JET, SLOW AIR (#100) | ||
| 1 | 99108-KRN-0700 | JET, LEAK (#70) | 1 |
| 1 | 99112-MEY-0700 | JET, BY-STARTER (#70) | 1 |
| 16072-MEN-731 | TOP SET (CARBURETOR NO.) Use from Engine SN FCR04A B | ||
| 1 | 16088-MEN-731 | CLIP (CARBURETOR NO.) Use from Engine SN FCR04A B | 1 |
| 1 | 16076-ND5-004 | O-RING (1.3X4.3) (CARBURETOR NO.) Use from Engine SN FCR04A C | 1 |
