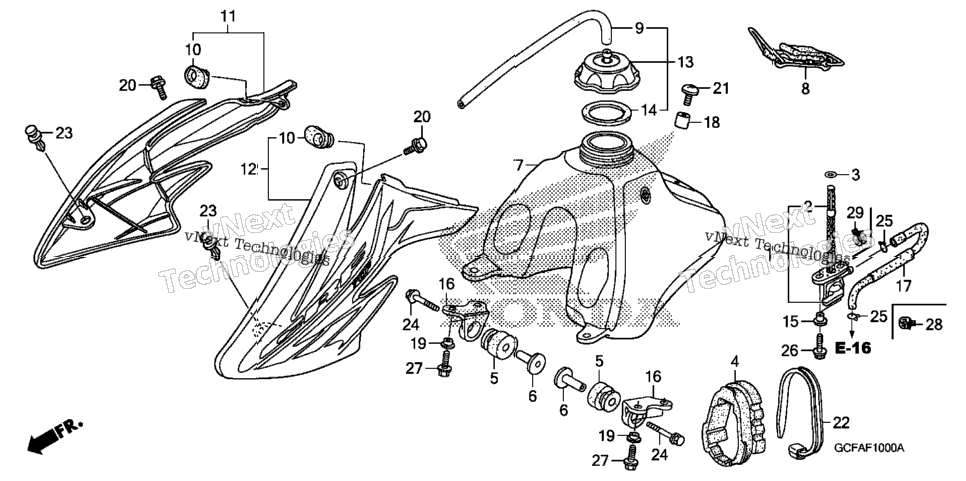

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 16950-GEL-701 | PETCOCK ASSY. | 1 |
| 1 | 16950-GEL-701 | PETCOCK ASSY. | 1 |
| 1 | 16952-GEL-701 | SCREEN SET, FUEL STRAINER | 1 |
| 1 | 16952-GEL-701 | SCREEN SET, FUEL STRAINER | 1 |
| 1 | 16997-467-000 | O-RING (11.8X3.55) | 1 |
| 1 | 16997-467-000 | O-RING (11.8X3.55) | 1 |
| 1 | 17504-GCF-680 | RUBBER, TANK SETTING | 1 |
| 1 | 17504-GCF-680 | RUBBER, TANK SETTING | 1 |
| 2 | 17508-GBF-830 | RUBBER, TANK MOUNTING | 2 |
| 2 | 17508-GBF-830 | RUBBER, TANK MOUNTING | 2 |
| 2 | 17509-KN4-A60 | COLLAR, TANK SETTING | 2 |
| 2 | 17509-KN4-A60 | COLLAR, TANK SETTING | 2 |
| 1 | 17510-GCF-930 | TANK, FUEL | 1 |
| 1 | 17510-GCF-930 | TANK, FUEL | 1 |
| 1 | 17510-KSJ-A20 | TANK, FUEL | 1 |
| 1 | 17510-KSJ-A20 | TANK, FUEL | 1 |
| 1 | 17516-GCF-930 | BAND, RR. TANK | 1 |
| 1 | 17516-GCF-930 | BAND, RR. TANK | 1 |
| 1 | 17521-429-000 | TUBE, FUEL CAP BREATHER | 1 |
| 1 | 17521-429-000 | TUBE, FUEL CAP BREATHER | 1 |
| 2 | 17541-KN4-A60 | GROMMET, SHROUD | 2 |
| 2 | 17541-KN4-A60 | GROMMET, SHROUD | 2 |
| 17545-GCF-610ZA | SHROUD SET, R. TANK (TYPE1) (WL) Extreme red R292R; | ||
| 17545-GCF-610ZA | SHROUD SET, R. TANK (TYPE1) (WL) Extreme red R292R; | ||
| 17555-GCF-610ZA | SHROUD SET, L. TANK (TYPE1) (WL) Extreme red R292R; | ||
| 17555-GCF-610ZA | SHROUD SET, L. TANK (TYPE1) (WL) Extreme red R292R; | ||
| 1 | 17620-GEL-770 | CAP ASSY., FUEL TANK | 1 |
| 1 | 17620-GEL-770 | CAP ASSY., FUEL TANK | 1 |
| 1 | 17624-GEL-770 | GASKET, FUEL CAP | 1 |
| 1 | 17624-GEL-770 | GASKET, FUEL CAP | 1 |
| 2 | 17626-467-000 | COLLAR, FUEL TANK SETTING | 2 |
| 2 | 17626-467-000 | COLLAR, FUEL TANK SETTING | 2 |
| 2 | 17634-KZ3-860 | BRACKET, FR. FUEL TANK | 2 |
| 2 | 17634-KZ3-860 | BRACKET, FR. FUEL TANK | 2 |
| 1 | 17681-GCF-930 | TUBE, FUEL | 1 |
| 1 | 17681-GCF-930 | TUBE, FUEL | 1 |
| 1 | 83607-356-000 | COLLAR, BATTERY (LOWER) | 1 |
| 1 | 83607-356-000 | COLLAR, BATTERY (LOWER) | 1 |
| 4 | 84706-415-000 | COLLAR | 4 |
| 4 | 84706-415-000 | COLLAR | 4 |
| 2 | 90113-GF0-000 | BOLT, FLANGE (6MM) | 2 |
| 2 | 90113-GF0-000 | BOLT, FLANGE (6MM) | 2 |
| 1 | 90381-GZ5-000 | SCREW, SPECIAL (6X17) | 1 |
| 1 | 90381-GZ5-000 | SCREW, SPECIAL (6X17) | 1 |
| 1 | 90620-SB2-003 | BAND, WIRE HARNESS | 1 |
| 1 | 90620-SB2-003 | BAND, WIRE HARNESS | 1 |
| 2 | 90653-HC4-900 | CLIP, SPLASH GUARD | 2 |
| 2 | 90653-HC4-900 | CLIP, SPLASH GUARD | 2 |
| 2 | 93404-06040-00 | BOLT-WASHER (6X40) | 2 |
| 2 | 93404-06040-00 | BOLT-WASHER (6X40) | 2 |
| 2 | 95002-02080 | CLIP, TUBE (B8) | 2 |
| 2 | 95002-02080 | CLIP, TUBE (B8) | 2 |
| 2 | 96001-06014-00 | BOLT, FLANGE (6X14) | 2 |
| 2 | 96001-06014-00 | BOLT, FLANGE (6X14) | 2 |
| 4 | 96001-06016-00 | BOLT, FLANGE (6X16) | 4 |
| 4 | 96001-06016-00 | BOLT, FLANGE (6X16) | 4 |
