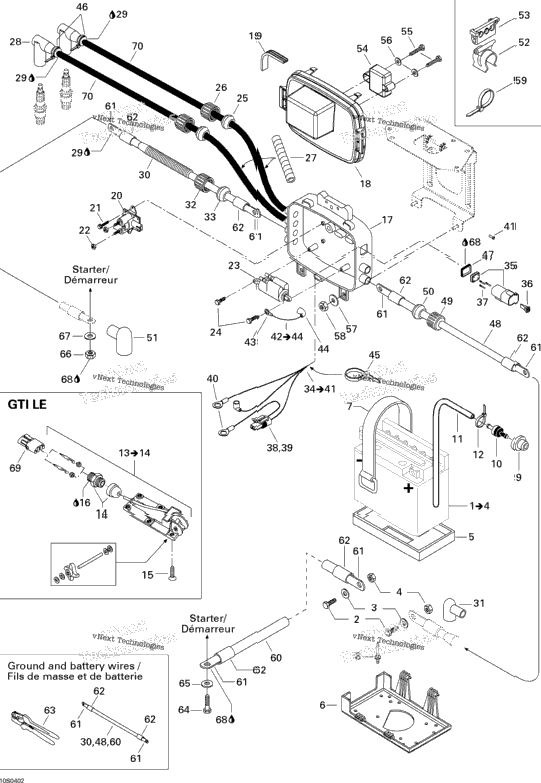

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 278001756 | Battery 19A Includes 1 to 4 | 1 |
| 2 | 211000045 | Battery Screw | 2 |
| 2 | 211200018 | FLAT WASHER 6 MM | 2 |
| 2 | 211100022 | Battery Nut M6 | 2 |
| 278001746 | Lower Battery Pad | ||
| 1 | 278001972 | BATTERY SUPPORT | 1 |
| 2 | 293850097 | Retainer Strap | 2 |
| 4 | 293150037 | Avdel Rivet 3/16" | 4 |
| 1 | 293720029 | Grommet | 1 |
| 275500499 | CHECK VALVE | ||
| 275500446 | HOSE 6 MM | ||
| 1 | 293750001 | Tie Wrap 94 mm | 1 |
| 278001668 | Speed Sensor GTI LE / Includes 13 to 14 | ||
| 1 | 293710031 | ELECTRIC CONNECTION GTI LE | 1 |
| 6 | 250000020 | Phillips Screw M5 X 10 GTI LE | 6 |
| 1 | 219704454 | Was 293800013 Loctite 56765 GTI LE | 1 |
| 278001712 | Electrical Box Base | ||
| 278001785 | Box Cover | ||
| 278001173 | GASKET | ||
| 1 | 278001802 | Relay Starter | 1 |
| 2 | 210261040 | Hex. Flange Screw M6 X 10 | 2 |
| 2 | 232561600 | Hex. Elastic Stop Nut M6 | 2 |
| 1 | 278000383 | Ignition Coil | 1 |
| 250000005 | Hex. Tapping Screw | ||
| 278000682 | Grommet | ||
| 278000100 | Electric Wire Cap | ||
| 293100012 | Housing 9 mm, Meter | ||
| 2 | 278000237 | Spark Plug Cap | 2 |
| 1 | 219704453 | Was 293550004 Dielectric Grease, 150 g | 1 |
| XXXX | Not Available As Spare Part - Red Battery Cable | ||
| 1 | 278000020 | PROTECTION CAP | 1 |
| 278000098 | GROMMET | ||
| 278001797 | Electric Box Harness Includes 34 to 41 | ||
| 1 | 270000137 | Female Connector, 6 Circuits | 1 |
| 1 | 278000735 | Female Lock, 6 Circuits | 1 |
| 3 | 278000631 | Male Terminal | 3 |
| 1 | 278001113 | Male Connector, 2 Circuits | 1 |
| 2 | 278001114 | Female Terminal | 2 |
| 2 | 278000992 | Open Barrel | 2 |
| 1 | 293000052 | Sealing Cap | 1 |
| 278000664 | Ground Harness Includes 42 to 44 | ||
| 278000300 | Ring Terminal | ||
| 1 | 278000228 | FEMALE TERMINAL | 1 |
| 2 | 293750002 | Tie Wrap 142 mm | 2 |
| 293200055` | Gasket | ||
| XXXX | Not Available As Spare Part - Red Starter Cable | ||
| 2 | 278000559 | COLLAR SUPPORT | 2 |
| 2 | 278000245 | 3 WIRE SUPPORT | 2 |
| 278001795 | CUT-OFF RELAY | ||
| 2 | 243041660 | HEX. PLASTITE SCREW M5.28 X 16 | 2 |
| 2 | 234051600 | Flat Washer M5, Stainless | 2 |
| 2 | 234062600 | Flat Washer M6, Stainless | 2 |
| 1 | 293750002 | Tie Wrap 142 mm | 1 |
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
| 1 | 293750009 | Tie-Rap 173 mm | 1 |
| 278001667 | Ground Cable Battery, No. 6, Meter | ||
| 278001682 | Terminal 45°, Small Hole | ||
| 278001776 | Terminal 30°, 2 Holes | ||
| 278001683 | TERMINAL 45, SMALL HOLE | ||
| 278001684 | TERMINAL 90, SMALL HOLE | ||
| 278001685 | FLAT TERMINAL, BIG HOLE | ||
| 278001686 | TERMINAL 45, BIG HOLE | ||
| 278001687 | TERMINAL 90, BIG HOLE | ||
| 278001688 | FLAT TERMINAL | ||
| 278000538 | Terminal 45°, Big Hole | ||
| 278000544 | Terminal | ||
| 1 | 219704447 | Was 710000483 Heat Shrink Tubing | 1 |
| 529035730 | Crimp Plier | ||
| 1 | 207382560 | Hex. Screw M8 X 25, Scotch Grip | 1 |
| 1 | 234081600 | Stainless, Flat Washer 8 mm | 1 |
| 1 | 232561600 | Hex. Elastic Stop Nut M6 | 1 |
| 1 | 234061600 | Stainless, Flat Washer M6 | 1 |
| 1 | 278000217 | Female Housing, 2 Circuits GTI LE | 1 |
| 2 | 278002198 | SPARK PLUG WIRE | 2 |
