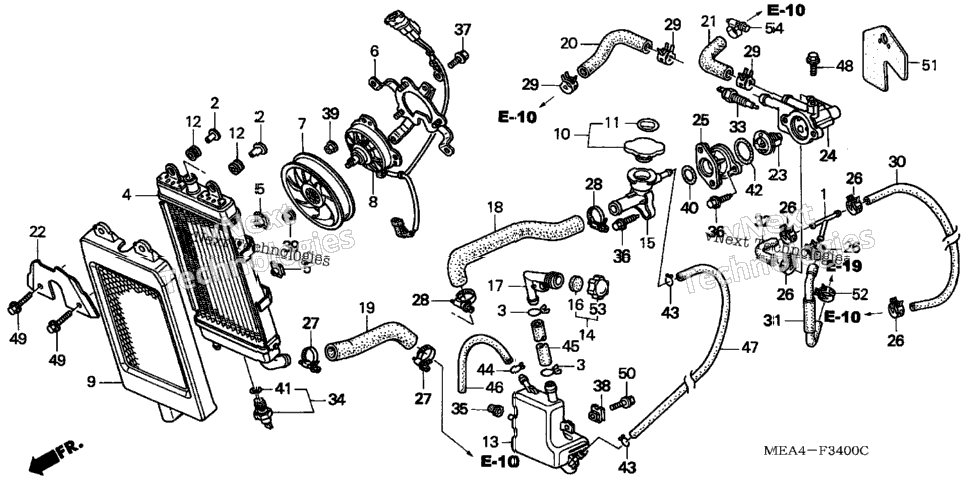

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 16959-MY1-000 | JOINT, FUEL TUBE | 1 |
| 2 | 17216-HA7-670 | COLLAR, AIR CLEANER SETTING | 2 |
| 2 | 17316-MN1-670 | CLIP A, BREATHER TUBE | 2 |
| 1 | 19010-MEA-671 | RADIATOR | 1 |
| 4 | 19014-KEA-003 | NUT, SETTING (6MM) | 4 |
| 1 | 19015-MEA-671 | SHROUD | 1 |
| 1 | 19020-MEA-671 | FAN, COOLING | 1 |
| 1 | 19030-MEA-671 | MOTOR ASSY., FAN | 1 |
| 1 | 19032-MEA-670 | GRILLE, RADIATOR | 1 |
| 1 | 19037-GEE-710 | CAP, RADIATOR | 1 |
| 1 | 19046-PAA-A00 | LABEL, RADIATOR CAP | 1 |
| 2 | 19051-KA3-830 | RUBBER, RADIATOR MOUNTING | 2 |
| 1 | 19101-MEA-670 | TANK, RADIATOR RESERVE | 1 |
| 1 | 19105-MG8-000 | CAP ASSY., RESERVE TANK | 1 |
| 1 | 19106-MCH-003 | NECK ASSY., FILLER | 1 |
| 1 | 19107-MG8-000 | GASKET, RESERVE TANK | 1 |
| 19111-MR1-000 | NECK, RESERVE TANK FILLER | ||
| 1 | 19116-MEA-670 | HOSE, RADIATOR (UPPER) | 1 |
| 1 | 19117-MEA-670 | HOSE, RADIATOR (LOWER) | 1 |
| 1 | 19118-MEA-670 | HOSE, FR. OUTLET WATER | 1 |
| 1 | 19119-MEA-670 | HOSE, RR. OUTLET WATER | 1 |
| 1 | 19124-MEA-670 | GUARD, RADIATOR | 1 |
| 1 | 19300-MCZ-003 | THERMOSTAT | 1 |
| 19311-MEA-305 | CASE, THERMOSTAT | ||
| 1 | 19313-MCH-315 | COVER, THERMOSTAT | 1 |
| 5 | 91405-PD1-004 | CLAMP, TUBE (D12) (FRAME NO.) | 5 |
| 2 | 19509-MM5-003 | CLAMP, R. RADIATOR HOSE | 2 |
| 2 | 19516-GAG-003 | CLAMP, HOSE (30-37MM) | 2 |
| 3 | 19517-KM9-000 | CLIP, WATER HOSE | 3 |
| 19531-MEA-670 | HOSE A, WATER | ||
| 19533-MEM-670 | HOSE, WATER RETURN | ||
| 19534-MEA-670 | HOSE B, WATER | ||
| 1 | 37760-MAV-003 | SWITCH ASSY., THERMO | 1 |
| 1 | 37760-MR1-003 | SWITCH ASSY., THERMO | 1 |
| 1 | 37760-MT2-003 | SWITCH ASSY., THERMOSTAT | 1 |
| 1 | 80126-MM5-000 | RUBBER, TURN SIGNAL MOUNTING | 1 |
| 4 | 90029-888-000 | BOLT, FLANGE (6X16) (CT200) | 4 |
| 4 | 90120-KCR-003 | BOLT-WASHER (6X16) | 4 |
| 1 | 90305-GK8-000 | NUT, CLIP (6MM) | 1 |
| 4 | 90315-MK3-003 | NUT, SERRATE (5MM) | 4 |
| 1 | 91302-PF0-003 | O-RING (26.9X2.4) (NOK) (Honda Code 1767177) | 1 |
| 1 | 91304-KG8-000 | O-RING (27X2.4) (Honda Code 6704001) | 1 |
| 1 | 91304-KG8-003 | O-RING (27X2.4) (Honda Code 1716828) | 1 |
| 1 | 91307-PH7-660 | O-RING (13.5X1.4) | 1 |
| 1 | 91307-611-000 | O-RING (12.5X1.4) | 1 |
| 1 | 91311-KE8-000 | O-RING (47.5X2) | 1 |
| 2 | 95002-02120 | CLIP, TUBE (B12) | 2 |
| 1 | 95002-70000 | CLIP, TUBE (C11) | 1 |
| 1 | 95005-14001-30M | BULK HOSE, VACUUM (14X1000) (14X100) (BULK HOSE: 95005-14001-30M) | 1 |
| 1 | 95005-70003-30M | BULK HOSE, VACUUM (7X3000) (7X730) | 1 |
| 1 | 95005-75001-20M | BULK HOSE (7.3X1000) | 1 |
| 1 | 95701-06012-08 | BOLT, FLANGE (6X12) | 1 |
| 2 | 95701-06030-07 | BOLT, FLANGE (6X30) | 2 |
| 1 | 95701-06016-08 | BOLT, FLANGE (6X16) | 1 |
| 1 | 95801-06016-08 | BOLT, FLANGE (6X16) | 1 |
| 1 | 19126-MEM-670 | RUBBER, HEAT GUARD | 1 |
| 1 | 90601-MEA-670 | CLAMP, TUBE (D10.3) | 1 |
| 1 | 19104-ME9-000 | CAP, RESERVE TANK | 1 |
| 1 | 19517-ML7-691 | CLAMP, HOSE (22-29MM) | 1 |
