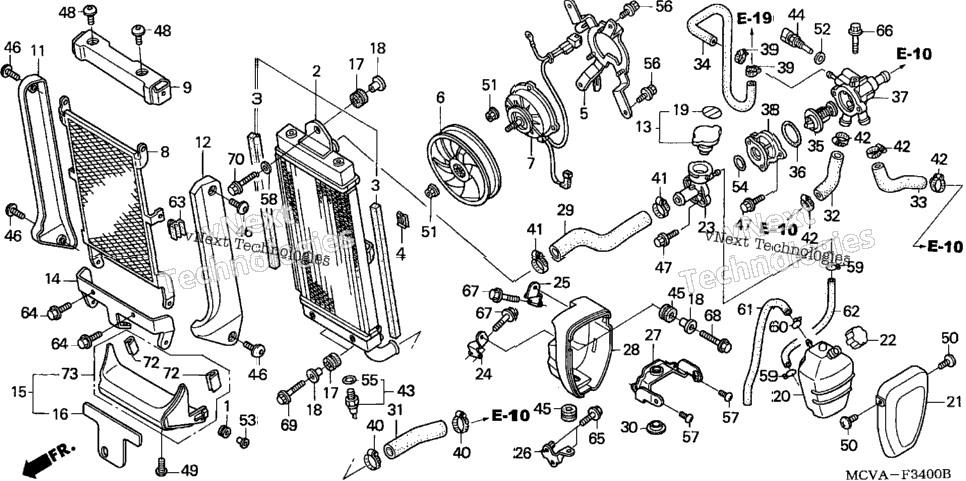

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 2 | 18316-KFT-620 | RUBBER, PROTECTOR | 2 |
| 1 | 19010-MCV-R11 | RADIATOR | 1 |
| 19011-MCV-N10 | SEAL, RADIATOR SIDE | ||
| 2 | 19014-KEA-003 | NUT, SETTING | 2 |
| 19015-MCV-R11 | SHROUD | ||
| 1 | 19020-MCF-013 | FAN, COOLING | 1 |
| 1 | 19030-MCH-003 | MOTOR ASSY., FAN | 1 |
| 1 | 19032-MCV-N10 | GRILLE, RADIATOR | 1 |
| 19041-MCV-N10 | COVER, RADIATOR (UPPER) | ||
| 1 | 19043-MCV-N10 | COVER, R. RADIATOR SIDE | 1 |
| 1 | 19044-MCV-N10 | COVER, L. RADIATOR SIDE | 1 |
| 1 | 19037-GEE-710 | CAP, RADIATOR | 1 |
| 1 | 19045-MCV-N10 | STAY, RADIATOR COVER | 1 |
| 3 | 19051-KA3-830 | RUBBER, RADIATOR MOUNTING | 3 |
| 5 | 19052-MN8-000 | COLLAR, RADIATOR MOUNTING | 5 |
| 1 | 19046-PAA-A00 | LABEL, RADIATOR CAP | 1 |
| 1 | 19101-MCV-R10 | TANK, RADIATOR RESERVE | 1 |
| 19105-MCV-R10 | COVER, RESERVE TANK | ||
| 1 | 19105-MG8-000 | CAP ASSY., RESERVE TANK | 1 |
| 1 | 19106-MCH-003 | NECK ASSY., FILLER | 1 |
| 1 | 19111-MCV-R10 | STAY, FR. RESERVE TANK (UPPER) | 1 |
| 1 | 19112-MCV-R10 | STAY, RR. RESERVE TANK (UPPER) | 1 |
| 1 | 19113-MCV-R10 | STAY, RESERVE TANK (LOWER) | 1 |
| 1 | 19114-MCV-R10 | STAY, RADIATOR RESERVE TANK | 1 |
| 19115-MCV-R10 | CASE, RADIATOR RESERVE TANK | ||
| 1 | 19116-MCH-010 | HOSE, RADIATOR (UPPER) | 1 |
| 1 | 19116-MCV-R10 | RUBBER, RESERVE TANK | 1 |
| 1 | 19117-MCH-010 | HOSE, RADIATOR (LOWER) | 1 |
| 1 | 19118-MCH-000 | HOSE, FR. OUTLET WATER | 1 |
| 1 | 19119-MCH-010 | HOSE, RR. OUTLET WATER | 1 |
| 1 | 19121-MCH-000 | HOSE, THERMOBODY | 1 |
| 1 | 19300-MCH-A00 | THERMOSTAT ASSY. | 1 |
| 1 | 19305-KV3-010 | RUBBER, THERMOSTAT | 1 |
| 19311-MCH-315 | CASE, THERMOSTAT | ||
| 1 | 19313-MCH-315 | COVER, THERMOSTAT | 1 |
| 2 | 19507-MAT-000 | CLAMP, RADIATOR HOSE | 2 |
| 2 | 19509-MM5-003 | CLAMP, RADIATOR HOSE | 2 |
| 2 | 19516-GAG-003 | CLAMP, HOSE (30-37MM) | 2 |
| 4 | 19516-ML7-691 | CLAMP, HOSE (24-32MM) | 4 |
| 1 | 37760-MT2-003 | SWITCH ASSY., THERMO | 1 |
| 1 | 37870-MBG-003 | SENSOR ASSY., WATER TEMPERATURE | 1 |
| 3 | 61103-430-000 | RUBBER, FR. FENDER MOUNTING | 3 |
| 4 | 90021-MZ1-000 | BOLT, SPECIAL (6X18) | 4 |
| 4 | 90029-888-000 | BOLT, FLANGE (6X16) (CT200) | 4 |
| 2 | 90105-MM4-000 | SCREW, PAN (6X10) | 2 |
| 1 | 90106-KY2-701 | SCREW, PAN (6X11) | 1 |
| 2 | 90111-MZ0-000 | SCREW, SPECIAL (5X10) | 2 |
| 4 | 90315-MK3-003 | NUT, SERRATE (5MM) | 4 |
| 1 | 90454-MC7-000 | WASHER, SPECIAL (12MM) | 1 |
| 2 | 90501-GN5-830 | COLLAR (8.5X7) | 2 |
| 1 | 91302-PF0-003 | O-RING (26.9X2.4) (NOK) | 1 |
| 1 | 91304-KG8-000 | O-RING (27X2.4) | 1 |
| 1 | 91304-KG8-003 | O-RING (27X2.4) | 1 |
| 1 | 91307-PH7-660 | O-RING (13.5X1.4) | 1 |
| 1 | 91307-611-000 | O-RING (13.5X1.4) | 1 |
| 4 | 93401-06012-08 | BOLT-WASHER (6X12) | 4 |
| 2 | 93500-05008-0A | SCREW, PAN (5X8) | 2 |
| 1 | 94103-06700 | WASHER, PLAIN (6MM) | 1 |
| 2 | 95002-02120 | CLIP, TUBE (B12) | 2 |
| 1 | 95002-50000 | CLIP, TUBE (C9) | 1 |
| 1 | 95005-50003-30M | BULK HOSE, VACUUM (5X3000) (5X980) | 1 |
| 1 | 95005-75001-20M | BULK HOSE (7.3X1000) | 1 |
| 2 | 95011-61000 | RUBBER A, STAND STOPPER | 2 |
| 2 | 95701-06010-00 | BOLT, FLANGE (6X10) | 2 |
| 2 | 95701-06012-07 | BOLT, FLANGE (6X12) | 2 |
| 1 | 95701-06012-08 | BOLT, FLANGE (6X12) | 1 |
| 4 | 95701-06016-08 | BOLT, FLANGE (6X16) | 4 |
| 2 | 95701-06025-00 | BOLT, FLANGE (6X25) | 2 |
| 2 | 95701-06025-07 | BOLT, FLANGE (6X25) | 2 |
| 1 | 95701-06028-07 | BOLT, FLANGE (6X28) | 1 |
| 2 | 17523-MEM-670 | TRIM, FUEL TANK | 2 |
| 19046-MCV-N10 | COVER SET, RADIATOR (LOWER) |
