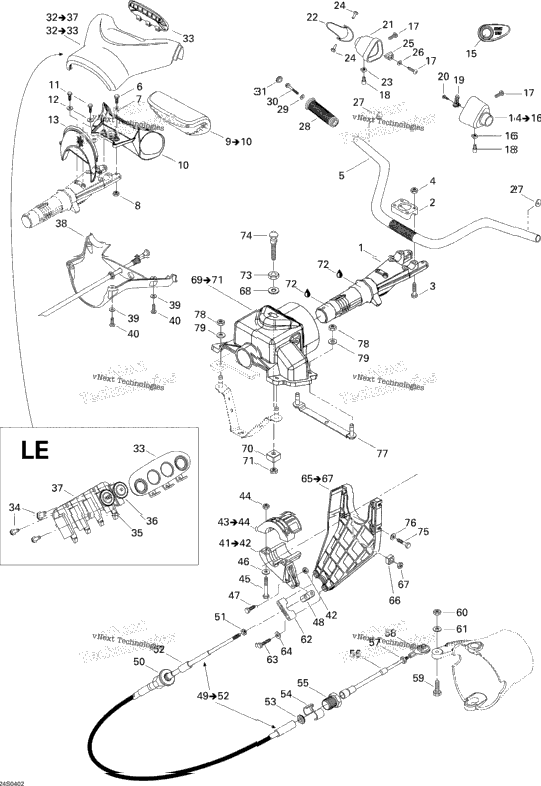

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 277000562400 | Steering Stem | ||
| 277000142 | STEERING CLAMP | ||
| 4 | 207085060 | Hex. Screw M8 X 50 | 4 |
| 4 | 232581600 | Hex. Elastic Nut M8 | 4 |
| 277000824 | Handle Bar | ||
| 2 | 207063060 | Hex. Screw M6 X 30 | 2 |
| 2 | 234061600 | Stainless, Flat Washer M6 | 2 |
| 2 | 232561600 | Hex. Elastic Stop Nut M6 | 2 |
| 277001093 | Handle Pad Includes 9 to 10 | ||
| 277001239 | Handle Pad, Blue Jay Includes 9 to 10 | ||
| 277000687 | Handle Bar Pad Support | ||
| 2 | 211000036 | HEX. FLANGED SCREW 1/4-20 X 1/2 | 2 |
| 2 | 234062600 | Flat Washer M6, Stainless | 2 |
| 1 | 277000549 | PLATE | 1 |
| 277000869 | LH HANDLE HOUSING ASS'Y Includes Items 14 to 16 | ||
| 277000306 | Switch Knob | ||
| 1 | 232860600 | SQUARE NUT M6 | 1 |
| 4 | 209630960 | PHILLIPS SCREW M3.9 X 9.5 | 4 |
| 2 | 250000036 | Socket Head Screw M6 X 16 | 2 |
| 277000845 | Retainer Plate | ||
| 1 | 209631360 | SCREW-TAPP.PAN HD.PH.DIN.7981C-A2 | 1 |
| 1 | 277000872 | THROTTLE HOUSING ASS'Y | 1 |
| 1 | 277001107 | Throttle Handle | 1 |
| 2 | 277000381 | PIN | 2 |
| 2 | 293450153 | INSERT | 2 |
| 2 | 234051600 | Flat Washer M5, Stainless | 2 |
| 2 | 277000554 | Handle Grip Insert | 2 |
| 2 | 295500691 | HANDLE GRIP KIT, BLACK | 2 |
| 2 | 250000002 | Hex. Screw M6 X 30, Scotch Grip | 2 |
| 2 | 277000203 | Black, Cap | 2 |
| 277000753 | Upper Steering Cover Ass’Y Includes 32 to 37 | ||
| 277000833 | Upper Steering Cover Includes 32 to 33 | ||
| 277000823 | Steering Plate STD | ||
| 1 | 277000688 | RETAINER PLATE LE | 1 |
| 3 | 241140060 | Screw K40 X 10 LE | 3 |
| 293000079 | Mode Knob LE | ||
| 293000080 | «Set» Knob LE | ||
| 277000563 | Switch Support LE | ||
| 277000808 | Lower Steering Cover | ||
| 4 | 234051600 | Flat Washer M5, Stainless | 4 |
| 4 | 241141660 | Hex. Flange Screw K40 X 16 | 4 |
| 277000518 | Steering Stem Arm Includes Items 41 to 42 | ||
| 1 | 232561600 | Hex. Elastic Stop Nut M6 | 1 |
| 277000519 | Arm Thrust Includes Items 43 to 44 | ||
| 2 | 207162560 | Hex. Screw M6 X 25 | 2 |
| 1 | 211000081 | Hex. Screw M6 X 30 | 1 |
| 1 | 277001180 | Ball Joint | 1 |
| 1 | 277001010 | Steering Cable Includes Items 49 to 52 | 1 |
| 1 | 277000782 | Ajustment Knob | 1 |
| 1 | 211100056 | Hex. Nut 1/4"-28 | 1 |
| 1 | 277000441 | Terminal Wiper | 1 |
| 1 | 293830063 | Rubber Washer | 1 |
| 2 | 277000783 | Half-Ring | 2 |
| 1 | 277000784 | Steering Cable Lock | 1 |
| 1 | 277000775 | Ball Joint | 1 |
| 1 | 207063560 | Hex. Screw M6 X 35 | 1 |
| 1 | 234061600 | Stainless, Flat Washer M6 | 1 |
| 1 | 277000162 | Support Thrust | 1 |
| 2 | 207065060 | Hex. Screw M6 X 50 | 2 |
| 277000516 | CABLE SUPPORT Includes Items 65 to 67 | ||
| 3 | 269500108 | Nut Housing | 3 |
| 5 | 232561600 | Hex. Elastic Stop Nut M6 | 5 |
| 1 | 234002600 | Flat Washer 10 mm, Stainless | 1 |
| 1 | 277000515 | Steering Support Includes Items 69 to 71 | 1 |
| 271000598 | NUT HOUSING ASS'Y | ||
| 1 | 232501600 | HEX. ELASTIC NUT M10 | 1 |
| 293550010 | Synthetic Grease, 400 G | ||
| 1 | 232100600 | Hex. Jam Nut M10 | 1 |
| 1 | 291000689 | LATCH STUD | 1 |
| 3 | 207162060 | Hex. Forming Screw M6 X 20 | 3 |
| 3 | 234061600 | Stainless, Flat Washer M6 | 3 |
| 277001000 | Steering Support | ||
| 2 | 232581600 | Hex. Elastic Nut M8 | 2 |
| 2 | 234081600 | Stainless, Flat Washer 8 mm | 2 |
