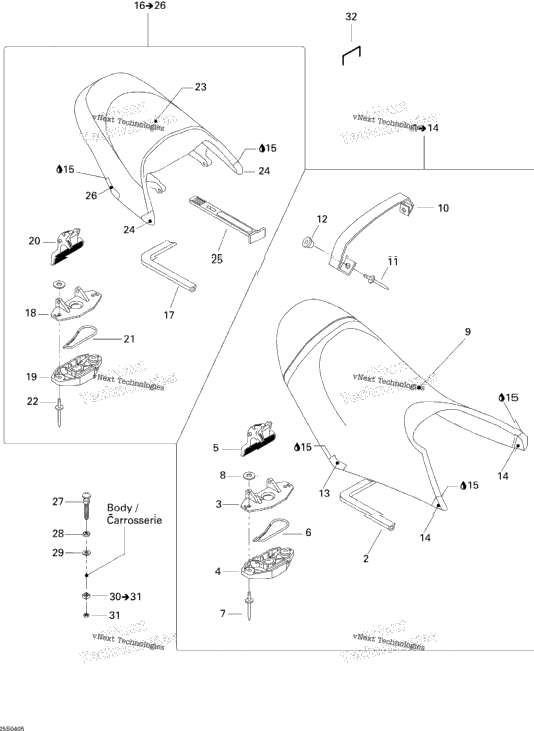

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 269001050 | Front Seat Ass'y, Silver WAKE / Includes 1 to 15 | ||
| 269001066 | Front Seat Ass'y, Clay STD / Includes 1 to 15 | ||
| 1 | 219704366 | Was 293200062 Seal | 1 |
| 1 | 269700076 | Latch Cover | 1 |
| 1 | 269000015 | Latch Base | 1 |
| 1 | 269700077 | Latch Lever | 1 |
| 269700017 | Latch Spring | ||
| 293150074 | RIVET 1/4 X 5/8 | ||
| 2 | 234061600 | Stainless, Flat Washer M6 | 2 |
| 269001051 | Front Seat Cover & Foam, Silver | ||
| 269001068 | Front Seat Cover & Foam, Clay | ||
| 269001081 | Seat Strap, Silver | ||
| 269001089 | Seat Strap, Clay | ||
| 2 | 293150078 | Pop Rivet | 2 |
| 2 | 293720067 | Grommet | 2 |
| 269001082 | RH Seat Corner, Silver | ||
| 269001090 | RH Seat Corner, Clay | ||
| 269001083 | LH Seat Corner, Silver | ||
| 269001091 | LH Seat Corner, Clay | ||
| 269001084 | RH Front Seat Corner, Silver | ||
| 269001092 | RH Front Seat Corner, Clay | ||
| 269001085 | LH Front Seat Corner, Silver | ||
| 269001093 | LH Front Seat Corner, Clay | ||
| 1 | 219704463 | Était Was 413705800 Loctite 414 , 29.5 c.c | 1 |
| 269001059 | Rear Seat Ass'y, Silver WAKE / Includes 16 to 26 | ||
| 269001069 | Rear Seat Ass'y, Clay STD / Includes 16 to 26 | ||
| 269001060 | Rear Seat Cover & Foam, Silver | ||
| 269001070 | Rear Seat Cover & Foam, Clay | ||
| 269001086 | RH Seat Corner, Silver | ||
| 269001094 | RH Seat Corner (Earthern Clay) | ||
| 269001087 | LH Seat Corner, Silver | ||
| 269001095 | LH Seat Corner (Earthern Clay) | ||
| 1 | 269500408 | Strap | 1 |
| 269001088 | SEAT CORNER | ||
| 269001096 | Seat Corner (Earthern Clay) | ||
| 1 | 291000945 | SEAT STUD | 1 |
| 1 | 232100600 | Hex. Jam Nut M10 | 1 |
| 1 | 234002600 | Flat Washer 10 mm, Stainless | 1 |
| 271000598 | NUT HOUSING ASS'Y Includes 31 to 32 | ||
| 1 | 232501600 | HEX. ELASTIC NUT M10 | 1 |
| 293730005 | Staple |
