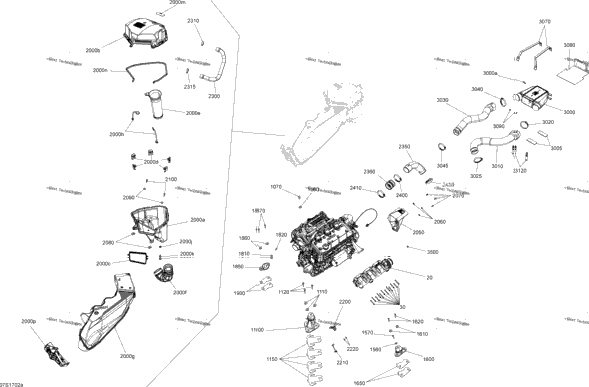

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 274001553 | Engine Exhaust Manifold | 1 |
| 1 | 274001553 | Engine Exhaust Manifold | 1 |
| 12 | 420641198 | Torx Flange Screw M6 X 45 | 12 |
| 12 | 420641198 | Torx Flange Screw M6 X 45 | 12 |
| 1 | 234082600 | Flat Washer 8 mm, Stainless | 1 |
| 1 | 234082600 | Flat Washer 8 mm, Stainless | 1 |
| 1 | 207382560 | Hex. Screw M8 X 25, Scotch Grip | 1 |
| 1 | 207382560 | Hex. Screw M8 X 25, Scotch Grip | 1 |
| 1 | 270000886 | Rubber Mount | 1 |
| 1 | 270000886 | Rubber Mount | 1 |
| 3 | 250200018 | Cone Washer | 3 |
| 3 | 250200018 | Cone Washer | 3 |
| 3 | 250000782 | Hexagonal Head Cap Screw M8 X 45 | 3 |
| 3 | 250000782 | Hexagonal Head Cap Screw M8 X 45 | 3 |
| 4 | 270000770 | Shim 1.3 mm | 4 |
| 4 | 270000770 | Shim 1.3 mm | 4 |
| 1 | 270000882 | Rubber Mount | 1 |
| 1 | 270000882 | Rubber Mount | 1 |
| 2 | 250200018 | Cone Washer | 2 |
| 2 | 250200018 | Cone Washer | 2 |
| 2 | 250000782 | Hexagonal Head Cap Screw M8 X 45 | 2 |
| 2 | 250000782 | Hexagonal Head Cap Screw M8 X 45 | 2 |
| 2 | 270000762 | Shim 1.3 mm | 2 |
| 2 | 270000762 | Shim 1.3 mm | 2 |
| 273000250 | AIR SILENCER LOW | ||
| 273000250 | AIR SILENCER LOW | ||
| 1 | 273000249 | Air Silencer Upper | 1 |
| 1 | 273000249 | Air Silencer Upper | 1 |
| 293250190 | SEAL | ||
| 5 | 269501718 | Clip | 5 |
| 1 | 273000359 | Intake Hose | 1 |
| 273000257 | CONNECTOR HOSE Engine 1503 NA 4-TEC | ||
| 273000348 | Hose Engine 1503 HO 4-TEC | ||
| 273000253 | INTAKE TUBE | ||
| 2 | 269501299 | Strap | 2 |
| 293720064 | GROMMET | ||
| 275500454 | CHECK VALVE | ||
| 1 | 219903177 | Air Silencer Notice Decal | 1 |
| 293200123 | NEOPRENE SEAL | ||
| 273000271 | DEFLECTOR | ||
| 270000735 | AIR BOX SUPPORT Engine 1503 HO 4-TEC | ||
| 270000791 | AIR BOX SUPPORT Engine 1503 NA 4-TEC | ||
| 3 | 234062600 | Flat Washer M6, Stainless | 3 |
| 3 | 207361660 | Hex. Screw M6 X 16, Scotch Grip | 3 |
| 2 | 420942108 | Panel Nut M6 X 1 | 2 |
| 2 | 234062600 | Flat Washer M6, Stainless | 2 |
| 2 | 207362560 | Hex. Screw M6 X 25, Scotch Grip | 2 |
| 273000260 | AIR BOX BRACKET | ||
| 1 | 273000344 | Strap | 1 |
| 2 | 207361260 | Hex. Screw M6 X 12, Scotch Grip | 2 |
| 270000948 | FORMED HOSE | ||
| 1 | 293650051 | Tridon Gear Clamp | 1 |
| 273000327 | HOSE INTAKE Engine 1503 NA 4-TEC | ||
| 1 | 273000277 | Intake Fitting Engine 1503 NA 4-TEC | 1 |
| 1 | 293650179 | Tridon Clamp Engine 1503 NA 4-TEC | 1 |
| 1 | 293650179 | Tridon Clamp | 1 |
| 293250190 | SEAL | ||
| 5 | 269501718 | Clip | 5 |
| 1 | 273000359 | Intake Hose | 1 |
| 273000257 | CONNECTOR HOSE Engine 1503 NA 4-TEC | ||
| 273000348 | Hose Engine 1503 HO 4-TEC | ||
| 273000253 | INTAKE TUBE | ||
| 2 | 269501299 | Strap | 2 |
| 293720064 | GROMMET | ||
| 275500454 | CHECK VALVE | ||
| 1 | 219903177 | Air Silencer Notice Decal | 1 |
| 293200123 | NEOPRENE SEAL | ||
| 273000271 | DEFLECTOR | ||
| 270000735 | AIR BOX SUPPORT Engine 1503 HO 4-TEC | ||
| 270000791 | AIR BOX SUPPORT Engine 1503 NA 4-TEC | ||
| 3 | 234062600 | Flat Washer M6, Stainless | 3 |
| 3 | 207361660 | Hex. Screw M6 X 16, Scotch Grip | 3 |
| 2 | 420942108 | Panel Nut M6 X 1 | 2 |
| 2 | 234062600 | Flat Washer M6, Stainless | 2 |
| 2 | 207362560 | Hex. Screw M6 X 25, Scotch Grip | 2 |
| 273000260 | AIR BOX BRACKET | ||
| 1 | 273000344 | Strap | 1 |
| 2 | 207361260 | Hex. Screw M6 X 12, Scotch Grip | 2 |
| 270000948 | FORMED HOSE | ||
| 1 | 293650051 | Tridon Gear Clamp | 1 |
| 273000327 | HOSE INTAKE Engine 1503 NA 4-TEC | ||
| 1 | 273000277 | Intake Fitting Engine 1503 NA 4-TEC | 1 |
| 1 | 293650179 | Tridon Clamp Engine 1503 NA 4-TEC | 1 |
| 1 | 293650179 | Tridon Clamp | 1 |
| 1 | 276000397 | Intercooler Engine 1503 HO 4-TEC | 1 |
| 1 | 271001942 | Anode Zinc Engine 1503 HO 4-TEC | 1 |
| 293830180 | PAD-RUBBER Engine 1503 HO 4-TEC | ||
| 1 | 273000361 | Formed Hose Engine 1503 HO 4-TEC | 1 |
| 1 | 293650244 | Tridon Gear Clamp Engine 1503 HO 4-TEC | 1 |
| 1 | 293650179 | Tridon Clamp Engine 1503 HO 4-TEC | 1 |
| 1 | 273000362 | Formed Hose Engine 1503 HO 4-TEC | 1 |
| 2 | 293850093 | Fuel Tank Strap Engine 1503 HO 4-TEC | 2 |
| 293830146 | RUBBER PAD Engine 1503 HO 4-TEC | ||
| 2 | 293730016 | Black, Dart Engine 1503 HO 4-TEC | 2 |
| 270000946 | HOLDING STRAP | ||
| 1 | 293750002 | Tie Wrap 142 mm | 1 |
