Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|

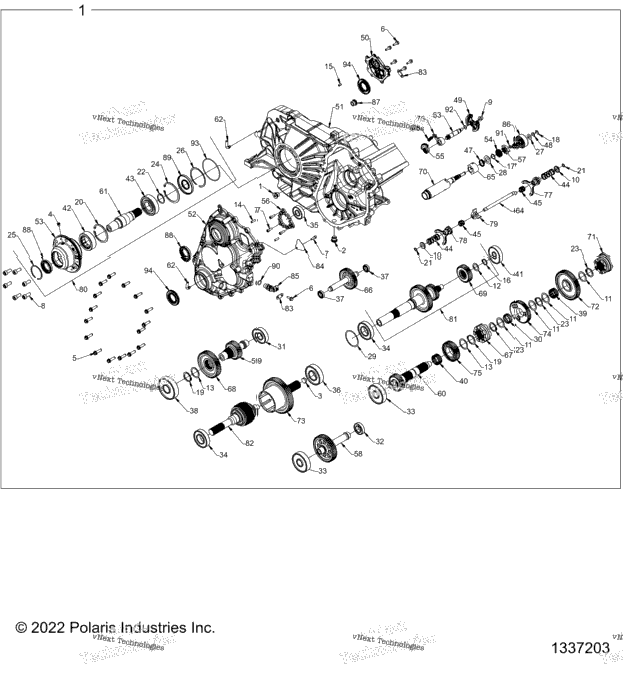

| 1 | 1337203 | ASM-GEARCASE,LIMT,COMPLETE,2P | 1 |
| 1 | 3234756 | SOCKET HEAD W/ MAG PLUG 18 MM X | 1 |
| 1 | 3236578 | PLUG-EXPANSION,20 X 7 | 1 |
| 1 | 3236579 | PLUG-HOLLOW HEX 5/16-24 | 1 |
| 16 | 3234898 | HEX HEAD FLANGE SCREW 8MMX1.25M | 16 |
| 6 | 3235206 | SCREW | 6 |
| 4 | 3235332 | SOCKET HEAD SCREW, 6 MM X 1 MM | 4 |
| 6 | 3236580 | SCREW-BUTTON,M10X1.5X25 | 6 |
| 1 | 3235210 | HEXFLANGE NUT, NYLON, 8 MM X 1. | 1 |
| 2 | 3234091 | CUP WASHER | 2 |
| 4 | 3235211 | WASHER | 4 |
| 1 | 3236581 | WASHER 22.7 X 32 X 1.5 | 1 |
| 2 | 3236582 | WASHER-35.3 X 44 X 1.5 | 2 |
| 2 | 3234330 | PIN, DOWEL, 6 X 20 | 2 |
| 1 | 7043746 | SPRING-SLOTTED PIN,6MM | 1 |
| 1 | 7710434 | SNAP RING | 1 |
| 1 | 3233045 | RETAINING RING | 1 |
| 1 | 3233834 | RETAINING RING | 1 |
| 2 | 3233364 | RETAINING RING | 2 |
| 1 | 3236619 | RING-RETAINER,BASIC,INT,72 | 1 |
| 2 | 3234090 | RETAINING RING | 2 |
| 7710917 | RING, RETAINING EXTERNAL | ||
| 3 | 3235214 | RETAINING RING | 3 |
| 1 | 7710912 | RET-RING,SHO80 | 1 |
| 1 | 3236700 | RING-RETAINING,KLM-58,130466 | 1 |
| 7710918 | RING, RETAINING KLM-80 | ||
| 1 | 3234642 | THRUST WASHER, .446 X .88 X .02 | 1 |
| 1 | 3235883 | SPACER, 19.4 X 34.0 X 2 | 1 |
| 1 | 3236585 | SHIM-70 OD,62 ID | 1 |
| 1 | 3233014 | NEEDLE BEARING | 1 |
| 1 | 3233020 | BEARING | 1 |
| 1 | 3233305 | BALL BEARING | 1 |
| 2 | 3235539 | BEARING-BALL 6405 C3 25X80X21 | 2 |
| 2 | 3234065 | BALL BEARNING | 2 |
| 1 | 3236587 | BALL BEARING | 1 |
| 1 | 3235099 | BALL BEARING (35X80X21) | 1 |
| 2 | 3235807 | BALL BEARING, 17 X 30 X 7 | 2 |
| 1 | 3236588 | BEARING-BALL,6406 C3,30X90X23 | 1 |
| 1 | 3236589 | BEARING-NEEDLE,32 X 37 X 17 | 1 |
| 1 | 3236734 | BEARING-NEEDLE,35X40X17 | 1 |
| 1 | 3236590 | BEARING-BALL,6403 C3,17X62X17 | 1 |
| 1 | 3236591 | BEARING-ROLLER,RNU 2207 | 1 |
| 1 | 3236592 | BEARING-DGB 6307CO | 1 |
| 2 | 3234078 | COMPRESSION SPRING | 2 |
| 2 | 3234089 | COMPRESSION SPRING | 2 |
| 1 | 3234578 | COMPRESSION DETENT SPRING | 1 |
| 1 | 3235885 | SPRING TORSION | 1 |
| 1 | 3235327 | SPRING WASHER | 1 |
| 1 | 3236593 | PULLEY-SHIFT | 1 |
| 1 | 3235809 | COVER-SECTOR GEARS,MACH | 1 |
| 1 | 3236594 | CASE-MACH | 1 |
| 1 | 3236716 | COVER-MACH | 1 |
| 1 | 3236596 | HOUSING-MACH,PTO | 1 |
| 1 | 3233839 | SECTOR GEAR, 16 TOOTH | 1 |
| 1 | 3233832 | SECTOR GEAR, 31 TOOTH CUT TO 11 | 1 |
| 1 | 3235456 | PARK PLATE | 1 |
| 1 | 3236638 | STAR-DETENT | 1 |
| 1 | 3236597 | SHAFT-IDLER,51T | 1 |
| 1 | 3236598 | SHAFT-IDLER,31T | 1 |
| 1 | 3236600 | SHAFT-REVERSE,29T | 1 |
| 5142333 | SHAFT, PTO | ||
| 2 | 3234230 | TUBE-VENT,90-1/4 HOSE | 2 |
| 1 | 3235238 | SHIFT SHAFT | 1 |
| 1 | 3235542 | SHIFT RAIL, SHAFT | 1 |
| 1 | 3235983 | PARK CAM | 1 |
| 1 | 3236603 | SHAFT-REVERSE,53T | 1 |
| 1 | 3236735 | ENGAGEMENT DOG,6-FACE | 1 |
| 1 | 3236604 | GEAR-IDLER,49T | 1 |
| 1 | 3236605 | GEAR-LOW,37T | 1 |
| 1 | 3236606 | DRUM-SHIFT,MACH | 1 |
| 1 | 3236607 | DOG-SHIFT,PARK | 1 |
| 1 | 3236608 | GEAR-LOW,68T | 1 |
| 1 | 3236610 | GEAR-OUTPUT,67T | 1 |
| 1 | 3236758 | GEAR-REVERSE,56T | 1 |
| 1 | 3236757 | GEAR-HIGH,44T | 1 |
| 1 | 3235452 | ROLLER PAWL | 1 |
| 1 | 3236611 | SUBASM-SHIFT,FORK | 1 |
| 1 | 3236612 | SUBASM-SHIFT,FORK | 1 |
| 1 | 3236736 | SUBASSEMBLY-SHIFT,SHIFT COLLAR | 1 |
| 1 | 3236733 | ASM-PTO | 1 |
| 1 | 3236770 | SHAFT-INPUT,39T-61T | 1 |
| 1 | 3239506 | SUBASM-PTL | 1 |
| 2 | 3235350 | BRKT-MOUNT(430592) | 2 |
| 3239507 | DEFLECTOR, OIL | ||
| 1 | 4013908 | K-SPEED SENSOR | 1 |
| 1 | 7662468 | SWITCH-ROTARY 2 PIN RESISTIVE | 1 |
| 2 | 3234755 | PLUG, M18 X 1.5 | 2 |
| 2 | 3236617 | SEAL-VITON,LIP,DBL,SHIELD,FLG | 2 |
| 1 | 3236618 | SEAL-35 X 80 X 8 | 1 |
| 1 | 3233840 | O-RING | 1 |
| 1 | 3233836 | O-RING | 1 |
| 1 | 3233828 | O-RING | 1 |
| 1 | 3236615 | O-RING-2,153 | 1 |
| 2 | 3236616 | SEAL-LIP,TRIPLE,VITON,35X62X8 | 2 |
