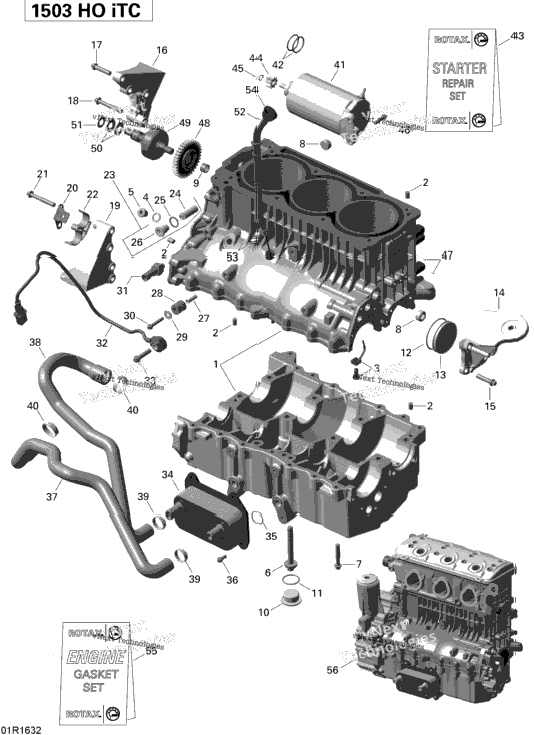

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 420893166 | Engine Block Ass'y 1503 Plasma Includes 1 to 9 | 1 |
| 4 | 420632010 | Center Pin 8 X 12 | 4 |
| 3 | 420956778 | Oil Hole Adaptor | 3 |
| 1 | 420250015 | Washer, Copper | 1 |
| 1 | 420841923 | Plug Screw M12 | 1 |
| 8 | 420641120 | Torx Flange Screw M10 X 82 | 8 |
| 15 | 420641208 | Hex. Flange Screw M8 X 45 | 15 |
| 2 | 420641317 | Plug Screw M20 X 1.5 | 2 |
| 1 | 420232482 | Needle Bushing | 1 |
| 8 | 420641171 | Plug Screw M30 X 1.5 Includes 10 to 11 | 8 |
| 8 | 420631300 | O-Ring DIN 3771-28X2.6n NBR70 Cylinder Block Plug Screws | 8 |
| 1 | 420430405 | O-Ring | 1 |
| 1 | 420660110 | Plug Cover | 1 |
| 420811792 | FRONT ENGINE BRACKET | ||
| 4 | 420641188 | Torx Flange Screw M8 X 35 | 4 |
| 420811787 | ENGINE BRACKET PTO, EXHAUST | ||
| 2 | 420641188 | Torx Flange Screw M8 X 35 | 2 |
| 2 | 420641213 | Torx Flange Screw M8 X 55 | 2 |
| 1 | 420811782 | Engine Bracket PTO, Intake | 1 |
| 1 | 420851740 | Retaining Plate | 1 |
| 4 | 420641213 | Torx Flange Screw M8 X 55 | 4 |
| 1 | 420660290 | Hose Bracket | 1 |
| 1 | 420236259 | Chain Tensioner With Screw Includes 23 to 26 | 1 |
| XXXX | Not Available As Spare Part - Chain Tensioner | ||
| 1 | 420430623 | Gasket Ring | 1 |
| XXXX | Not Available As Spare Part - Plug Screw M16 X 1.5 | ||
| 2 | 420847971 | Spacer | 2 |
| 2 | 420660090 | Rubber Bracket | 2 |
| 2 | 420827968 | Flat Washer M6 | 2 |
| 2 | 420641258 | Torx Flange Screw M6 X 35 | 2 |
| 1 | 420256916 | Oil Pressure Switch | 1 |
| 1 | 420664031 | Noise Sensor | 1 |
| 1 | 420641188 | Torx Flange Screw M8 X 35 | 1 |
| 1 | 420888852 | Oil Radiator | 1 |
| 2 | 420250055 | O-Ring | 2 |
| 4 | 420641048 | Torx Flange Screw M6 X 16 | 4 |
| 1 | 420922798 | Formed Hose | 1 |
| 1 | 420922792 | Formed Hose | 1 |
| 2 | 420851661 | Oetiker Clamp | 2 |
| 2 | 420851673 | Gear Clamp | 2 |
| 1 | 420888995 | Electric Starter Ass'y Includes 41 to 42 | 1 |
| 2 | 420631310 | O-Ring | 2 |
| 1 | 420881340 | Carbon Brush Set | 1 |
| 1 | 420834522 | Starter Gear, 9 Teeth | 1 |
| 1 | 420845600 | Retaining Ring | 1 |
| 2 | 420641238 | Torx Flange Screw M6 X 25 | 2 |
| 2 | 420249073 | Grooved Pin | 2 |
| 1 | 420889872 | Friction Clutch | 1 |
| 1 | 420890639 | Bendix Starter | 1 |
| 2 | 420238300 | Spring Washer | 2 |
| 1 | 420827261 | Thrust Washer | 1 |
| 1 | 420956944 | Oil Level Tube Includes 52 to 53 | 1 |
| 2 | 420950810 | O-Ring | 2 |
| 1 | 420956933 | Oil Level Gauge | 1 |
| 1 | 420889773 | Engine Gasket Set | 1 |
| 420150375 | ENGINE LONG BLOCK, 1503 HO ETC | ||
| 1 | 421000719 | REBUILT - Long Block 1503 Plasma | 1 |
| 1 | 421000720 | REBUILT - LONG BASIC BLOCK 1503 PLASMA | 1 |
