Интерактивное демо базы запчастей
Просматривайте запчасти для ATV, мотоциклов, снегоходов, водных моторов и другой техники по марке, году и модели. Каталог доступен для покупки в виде базы данных SQL с изображениями или для аренды.

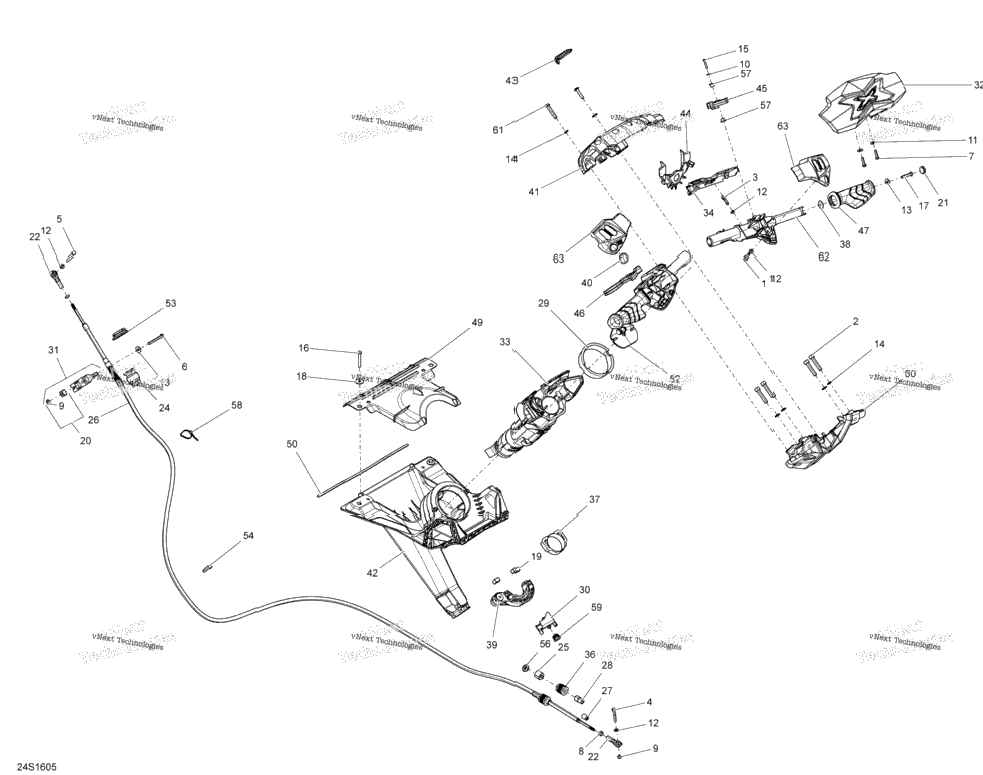

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 2 | 205061660 | Socket Screw M6 X 16 | 2 |
| 205084060 | SOCKET HEAD SCREW M8 X 40 | ||
| 4 | 205562060 | Socket Head Screw M6 X 20, Scotch Grip | 4 |
| 1 | 207063560 | Hex. Screw M6 X 35 | 1 |
| 2 | 207163560 | Hex. Screw M6 X 35 | 2 |
| 1 | 207064060 | Hex. Screw M6 X 40 | 1 |
| 2 | 207165060 | Hex. Screw M6 X 50 | 2 |
| 2 | 211000023 | Hex. Screw 10-14 X 7/8” | 2 |
| 2 | 211100056 | Hex. Nut 1/4"-28 | 2 |
| 4 | 232561200 | Elastic Stop Nut M6, Brass | 4 |
| 2 | 234042600 | Flat Washer 4 mm, Stainless | 2 |
| 2 | 234052600 | Flat Washer 5 mm, Stainless | 2 |
| 8 | 234061600 | Stainless Flat Washer M6 | 8 |
| 6 | 234062600 | Flat Washer M6, Stainless | 6 |
| 8 | 234080600 | Flat Washer M8, Stainless | 8 |
| 2 | 241142560 | Hex. Flange Screw K40 X 25 | 2 |
| 4 | 245064560 | Hex Cap Screw M6X1.0X45 S.Grip | 4 |
| 2 | 250000002 | Hex. Screw M6 X 30, Scotch Grip | 2 |
| 4 | 250200022 | Flat Washer M6.6 X 22 | 4 |
| 2 | 269500252 | M6 Nut Housing Ass'y | 2 |
| 4 | 269501166 | Nut Housing Ass'y | 4 |
| 2 | 277000203 | Black, Cap | 2 |
| 2 | 277000775 | Ball Joint | 2 |
| 1 | 277000782 | Ajustment Knob | 1 |
| 2 | 277001527 | Half Ring | 2 |
| 1 | 277001578 | Steering Cable Ass'y | 1 |
| 2 | 277001582 | Wiper Rod | 2 |
| 2 | 277001583 | End Piece | 2 |
| 1 | 277001653 | Wear Ring | 1 |
| 1 | 277001654 | Spacer | 1 |
| 1 | 277001655 | Thrust Support Ass'y | 1 |
| 1 | 277001683 | Handle Pad | 1 |
| 1 | 277001685 | Steering Column | 1 |
| 1 | 277001688 | Upper Housing RH | 1 |
| 277001686 | LH UPPER HOUSING | ||
| 1 | 277001729 | Steering Cable Lock | 1 |
| 1 | 277001741 | Wear Ring | 1 |
| 2 | 277001863 | Insert Grip Handle | 2 |
| 1 | 277001872 | Steering Arm Support Ass'y | 1 |
| 1 | 277001887 | Red, Knob Switch | 1 |
| 277001909 | FRONT EXTENSION BLOC | ||
| 1 | 277001913 | Steering Support Ass'y | 1 |
| 277001919 | AESTHETIC CAP | ||
| 277001920 | RADIO FREQUENCY KEY SUPPORT | ||
| 1 | 277001944 | Throttle Handle | 1 |
| 1 | 277001945 | Reverse Handle | 1 |
| 1 | 277001946 | Deep Black, RH Handle Grip | 1 |
| 1 | 277001958 | Deep Black, LH Handle Grip | 1 |
| 1 | 293000117 | Deflector | 1 |
| 293250008 | GASKET PAC = 1.0m | ||
| 1 | 293720086 | Grommet | 1 |
| 1 | 293720090 | Cable Grommet | 1 |
| 1 | 293750008 | Tie Wrap 368 mm | 1 |
| 1 | 293830063 | Rubber Washer | 1 |
| 4 | 293900091 | Bushing | 4 |
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
| 1 | 517302716 | Cap | 1 |
| 277001926 | REAR EXTENSION BLOCK | ||
| 4 | 250000845 | Torx-Button M/S M8 X 40 Stlss S.Gri | 4 |
| 1 | 277001965 | Housing LH | 1 |
| 277001966 | HOUSING RH | ||
| 1 | 277001718 | RH Housing Cover | 1 |
| 277001794 | LH HOUSING COVER |
