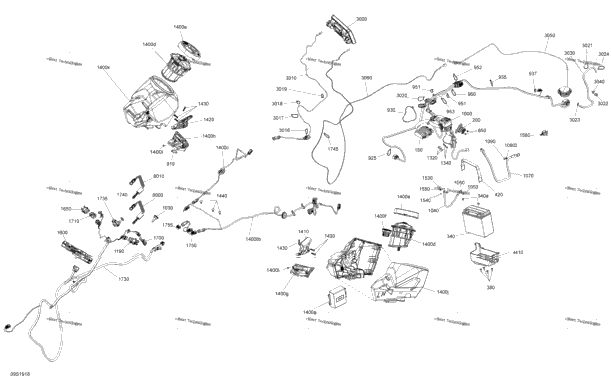

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 710001103 | Voltage Regulator | 1 |
| 1 | 278003012 | Starter Relay | 1 |
| 1 | 296000441 | Battery Ass'y, 18 Amperes Except Australia/Brazil | 1 |
| 515179099 | Battery Ass'y, 18 Amperes Brazil | ||
| 830201279 | Battery Ass'y, 18 Amperes Australia | ||
| 830201282 | Battery Ass'y, 18 Amperes Australia | ||
| 1 | 250000282 | Battery Bolt Kit | 1 |
| 4 | 293150123 | Pop Rivet 3/16" | 4 |
| 1 | 278003473 | Battery Support | 1 |
| 1 | 293850095 | Fuel Tank Strap | 1 |
| 2 | 232561200 | Elastic Stop Nut M6, Brass | 2 |
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
| 1 | 293750008 | Tie Wrap 368 mm | 1 |
| 1 | 293750047 | Tie Rap, 533 mm | 1 |
| 1 | 293750002 | Tie Wrap 142 mm | 1 |
| 2 | 414115200 | Tie-Rap 180 mm | 2 |
| 1 | 278003720 | Wiring Harness Main | 1 |
| 1 | 269502324 | USB Plug | 1 |
| 1 | 278003451 | Ground Battery Cable | 1 |
| 1 | 207361260 | Hex. Screw M6 X 12, Scotch Grip | 1 |
| 1 | 234061600 | Stainless Flat Washer M6 | 1 |
| 1 | 278003369 | Starter Cable | 1 |
| 1 | 232561200 | Elastic Stop Nut M6, Brass | 1 |
| 1 | 278002284 | LH Throttle Sensor | 1 |
| 3 | 207361260 | Hex. Screw M6 X 12, Scotch Grip | 3 |
| 3 | 234061600 | Stainless Flat Washer M6 | 3 |
| 1 | 278003464 | Amplifier With Standard Sound System | 1 |
| 1 | 278003497 | Amplifier Harness With Standard Sound System | 1 |
| 1 | 278003462 | Speaker Harness With Standard Sound System | 1 |
| 2 | 278003463 | Speaker With Standard Sound System | 2 |
| 2 | 278003466 | Speaker Grille With Standard Sound System | 2 |
| 1 | 278003465 | Audio Control With Standard Sound System | 1 |
| 1 | 278003616 | Deep Black, LH Protective Grille With Standard Sound System | 1 |
| 1 | 278003617 | Deep Black, RH Protective Grille With Standard Sound System | 1 |
| 2 | 211000023 | Hex. Screw 10-14 X 7/8” With Standard Sound System | 2 |
| 1 | 278003735 | LH Speaker Enclosure Ass'y With Standard Sound System | 1 |
| 1 | 278003736 | RH Speaker Enclosure Ass'y With Standard Sound System | 1 |
| 1 | 278003489 | LH Bracket With Standard Sound System | 1 |
| 1 | 278003518 | RH Bracket With Standard Sound System | 1 |
| 6 | 250001007 | Screw Torx M6.81 X 30 With Standard Sound System | 6 |
| 1 | 293730011 | Black, Dart | 1 |
| 2 | 293730011 | Black, Dart With Standard Sound System | 2 |
| 3 | 278003564 | Retainer | 3 |
| 1 | 278003432 | Full Size Multifunction Mono Gauge | 1 |
| 1 | 278002283 | Throttle Position Sensor | 1 |
| 1 | 278003726 | LH Switch Keypad | 1 |
| 1 | 278003474 | RH Switch Keypad | 1 |
| 1 | 278003712 | Wiring Harness Handlebar | 1 |
| 1 | 515178225 | DESS Switch, RFID | 1 |
| 1 | 278002963 | Safety Nut (DESS Switch) | 1 |
| 1 | 414115200 | Tie-Rap 180 mm Canada/USA | 1 |
| 1 | 278003684 | Multiple Accessory Harness With Standard Sound System | 1 |
| 1 | 278003734 | Connectors Support With Standard Sound System | 1 |
| 1 | 295100801 | Echosounder Ass'y | 1 |
| 1 | 278003673 | Echosounder Power Supply Harness | 1 |
| 1 | 219704389 | Polyurethane Hose 4000MM Long | 1 |
| 1 | 293730040 | Mount Dart | 1 |
| 1 | 278003613 | Echosounder Transducer | 1 |
| 1 | 278003613 | Echosounder Transducer Includes 3050 TO 3050a | 1 |
| 1 | 292002166 | Transducer Seal Not shown | 1 |
| 1 | 278003683 | Transducer Harness | 1 |
| 1 | 278003401 | Safety Lanyard Ass'y, Learning / RFID | 1 |
| 1 | 278003400 | Safety Lanyard Ass'y, RFID | 1 |
