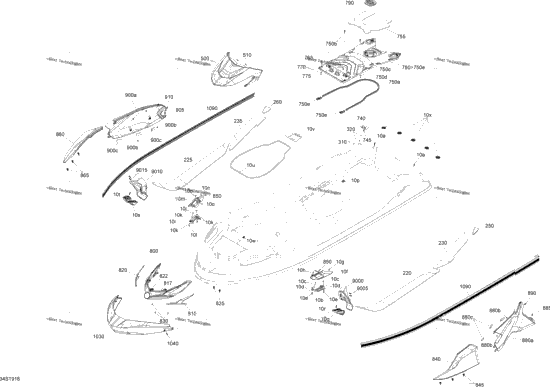

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 2 | 250001008 | Screw-Pastite Torx Cone HD M6 81 X 30 | 2 |
| 1 | 291004559 | LH Cleat | 1 |
| 2 | 207083560 | Hex. Screw M8 X 35 | 2 |
| 4 | 234081600 | Stainless, Flat Washer 8 mm | 4 |
| 2 | 232581200 | Hex. Elastic Nut M8 Brass | 2 |
| 1 | 291004661 | LH Shell Cleat | 1 |
| 1 | 293730011 | Black, Dart | 1 |
| 2 | 211000023 | Hex. Screw 10-14 X 7/8” | 2 |
| 1 | 291004720 | RH Cleat | 1 |
| 1 | 291004719 | RH Shell Cleat | 1 |
| 24 | 291004813 | Housing Nut M6 | 24 |
| 1 | 291004714 | LH Support | 1 |
| 3 | 250001008 | Screw-Pastite Torx Cone HD M6 81 X 30 | 3 |
| 1 | 291004715 | RH Support | 1 |
| 1 | 293250401 | Gasket | 1 |
| 1 | 293250451 | Gasket | 1 |
| 1 | 293750025 | Tie-Rap Mount | 1 |
| 5 | 293450363 | Insert M8 | 5 |
| 1 | 291005044 | Anti Slip Mat FRT LH | 1 |
| 1 | 291005045 | Anti Slip Mat FRT RH | 1 |
| 1 | 291004514 | LH Rear Carpet | 1 |
| 1 | 291004515 | RH Rear Carpet | 1 |
| 1 | 291004516 | LH Anti-Skid Pad | 1 |
| 1 | 291004517 | RH Anti-Skid Pad | 1 |
| 2 | 293150016 | Rivet 1/8" | 2 |
| 2 | 293000014 | Black, Snap Cap | 2 |
| 1 | 291005023 | Olive Night, Hood | 1 |
| 2 | 250001087 | Flange Screw Plastite #10, 14 X 7/8" | 2 |
| 1 | 291004941 | Hose Protector | 1 |
| 1 | 291004462 | Access Cover Ass'y Includes 750 TO 750e | 1 |
| 1 | 219704366 | Was 293200062 Seal | 1 |
| 2 | 291004611 | STUD | 2 |
| 2 | 234062600 | Flat Washer M6, Stainless | 2 |
| 2 | 232561200 | Elastic Stop Nut M6, Brass | 2 |
| 2 | 291004717 | Seal | 2 |
| 1 | 291004668 | Black, Mat Cover | 1 |
| 13 | 250000827 | Screw-Torx Truss Cone HD.M6X50 | 13 |
| 1 | 291004481 | Access Cap Ass'y | 1 |
| 1 | 291004454 | Black, Front Grille | 1 |
| 1 | 291005038 | Mango Orange, Trim LH | 1 |
| 1 | 211100002 | Push Nut | 1 |
| 1 | 291005039 | Mango Orange, Trim RH | 1 |
| 2 | 293730071 | Dard | 2 |
| 3 | 211000023 | Hex. Screw 10-14 X 7/8” | 3 |
| 1 | 291005041 | Flint Grey, Body Panel Front LH | 1 |
| 3 | 293730071 | Dard | 3 |
| 1 | 291005040 | Flint Grey, RH Front Body Panel | 1 |
| 1 | 291005042 | Flint Frey, LH Central Body Panel | 1 |
| 2 | 293830005 | Rubber Bumper | 2 |
| 3 | 278003618 | Stopper | 3 |
| 1 | 250001007 | Screw Torx M6.81 X 30 | 1 |
| 1 | 293150230 | Tuflok Plastic Rivet | 1 |
| 1 | 291005043 | Flint Frey, RH Central Body Panel | 1 |
| 1 | 291004452 | Front Bumper | 1 |
| 4 | 250001007 | Screw Torx M6.81 X 30 | 4 |
| 291004468 | Bumper 2775±25mm | ||
| 1 | 291004455 | LH Side Grille Without Sound System | 1 |
| 2 | 250001007 | Screw Torx M6.81 X 30 Without Sound System | 2 |
| 1 | 291004456 | RH Side Grille Without Sound System | 1 |
