Интерактивное демо базы запчастей
Просматривайте запчасти для ATV, мотоциклов, снегоходов, водных моторов и другой техники по марке, году и модели. Каталог доступен для покупки в виде базы данных SQL с изображениями или для аренды.

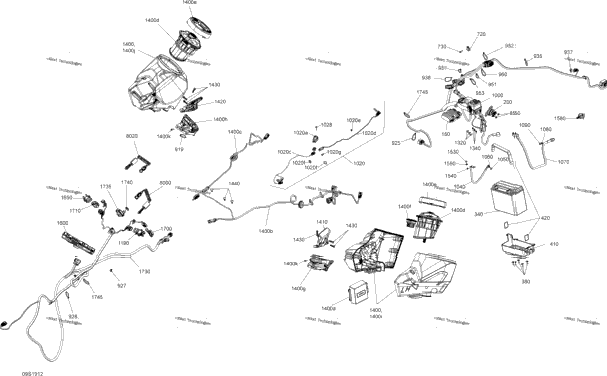

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 710001103 | Voltage Regulator | 1 |
| 1 | 278003012 | Starter Relay | 1 |
| 1 | 296000441 | Battery Ass'y, 18 Amperes Except Australia/Brazil | 1 |
| 515179099 | Battery Ass'y, 18 Amperes Brazil | ||
| 830201279 | Battery Ass'y, 18 Amperes Australia | ||
| 830201282 | Battery Ass'y, 18 Amperes Australia | ||
| 1 | 250000282 | Battery Bolt Kit | 1 |
| 4 | 293150123 | Pop Rivet 3/16" | 4 |
| 1 | 278003473 | Battery Support | 1 |
| 1 | 293850095 | Fuel Tank Strap | 1 |
| 1 | 293650257 | Hose Clamp | 1 |
| 1 | 250000287 | Flange Torx Screw K40 X 16 | 1 |
| 2 | 232561200 | Elastic Stop Nut M6, Brass | 2 |
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
| 1 | 293750047 | Tie Rap, 533 mm | 1 |
| 1 | 293750002 | Tie Wrap 142 mm | 1 |
| 1 | 293750008 | Tie Wrap 368 mm | 1 |
| 2 | 414115200 | Tie-Rap 180 mm | 2 |
| 1 | 278003708 | Wiring Harness Main | 1 |
| 1 | 295100710 | USB Charger Cable Ass'y Includes 1020 TO 1020g | 1 |
| XXXX | Not Available As Spare Part - USB Charger Not available seperately | ||
| XXXX | Not Available As Spare Part - USB Charger Cable Not available seperately | ||
| XXXX | Not Available As Spare Part - USB Cable Not available seperately | ||
| 1 | 293750027 | Tie-Rap 206 mm | 1 |
| 1 | 515178223 | Clip Connector | 1 |
| 1 | 250000399 | Hexagonal Cap Screw M6 X35 | 1 |
| 1 | 278003451 | Ground Battery Cable | 1 |
| 1 | 207361260 | Hex. Screw M6 X 12, Scotch Grip | 1 |
| 1 | 234061600 | Stainless Flat Washer M6 | 1 |
| 1 | 278003369 | Starter Cable | 1 |
| 1 | 232561200 | Elastic Stop Nut M6, Brass | 1 |
| 1 | 278002284 | LH Throttle Sensor | 1 |
| 3 | 207361260 | Hex. Screw M6 X 12, Scotch Grip | 3 |
| 3 | 234061600 | Stainless Flat Washer M6 | 3 |
| 1 | 278003464 | Amplifier | 1 |
| 1 | 278003497 | Amplifier Harness | 1 |
| 1 | 278003462 | Speaker Harness | 1 |
| 2 | 278003463 | Speaker | 2 |
| 2 | 278003466 | Speaker Grille | 2 |
| 1 | 278003465 | Audio Control | 1 |
| 1 | 278003616 | Deep Black, LH Protective Grille | 1 |
| 1 | 278003617 | Deep Black, RH Protective Grille | 1 |
| 1 | 278003735 | LH Speaker Enclosure Ass'y | 1 |
| 1 | 278003736 | RH Speaker Enclosure Ass'y | 1 |
| 2 | 211000023 | Hex. Screw 10-14 X 7/8” | 2 |
| 1 | 278003489 | LH Bracket | 1 |
| 1 | 278003518 | RH Bracket | 1 |
| 6 | 250001007 | Screw Torx M6.81 X 30 | 6 |
| 1 | 293730011 | Black, Dart | 1 |
| 2 | 293730011 | Black, Dart | 2 |
| 3 | 278003564 | Retainer | 3 |
| 1 | 278003432 | Full Size Multifunction Mono Gauge | 1 |
| 1 | 278002283 | Throttle Position Sensor | 1 |
| 1 | 278003726 | LH Switch Keypad | 1 |
| 1 | 278003474 | RH Switch Keypad | 1 |
| 1 | 278003712 | Wiring Harness Handlebar | 1 |
| 1 | 515178225 | DESS Switch, RFID | 1 |
| 1 | 278002963 | Safety Nut (DESS Switch) | 1 |
| 1 | 414115200 | Tie-Rap 180 mm Except International | 1 |
| 1 | 278003401 | Safety Lanyard Ass'y, Learning / RFID | 1 |
| 1 | 278003402 | Safety Lanyard Ass'y, RFID | 1 |
