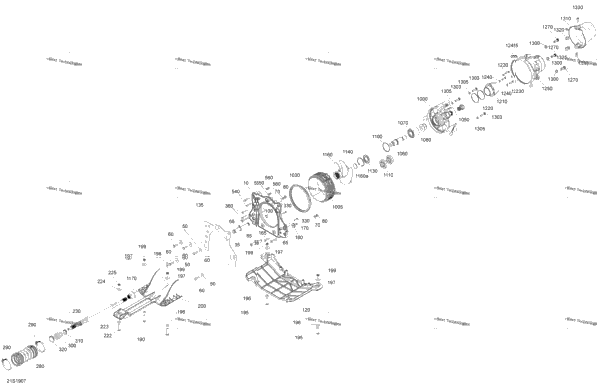

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 271001956 | Anodized Pump Support | 1 |
| 1 | 271001956 | Anodized Pump Support | 1 |
| 1 | 271001818 | Water Straight Fitting, In | 1 |
| 1 | 271001818 | Water Straight Fitting, In | 1 |
| 5 | 279000336 | Flat Washer | 5 |
| 5 | 279000336 | Flat Washer | 5 |
| 5 | 207382560 | Hex. Screw M8 X 25, Scotch Grip | 5 |
| 5 | 207382560 | Hex. Screw M8 X 25, Scotch Grip | 5 |
| 2 | 250000230 | Hex. Screw M8 X 40, Scotch Grip | 2 |
| 2 | 250000230 | Hex. Screw M8 X 40, Scotch Grip | 2 |
| 2 | 234081600 | Stainless, Flat Washer 8 mm | 2 |
| 2 | 234081600 | Stainless, Flat Washer 8 mm | 2 |
| 2 | 232581200 | Hex. Elastic Nut M8 Brass | 2 |
| 2 | 232581200 | Hex. Elastic Nut M8 Brass | 2 |
| 1 | 271001817 | Water Straght Fitting, Out | 1 |
| 1 | 271001817 | Water Straght Fitting, Out | 1 |
| 1 | 293300006 | O-Ring | 1 |
| 1 | 293300006 | O-Ring | 1 |
| 1 | 271001840 | Riding Plate | 1 |
| 1 | 271001958 | Gasket | 1 |
| 1 | 271001920 | Anode Zinc | 1 |
| 1 | 207363560 | Screw Hex. M6 X 35, Scotch Grip | 1 |
| 1 | 232561200 | Elastic Stop Nut M6, Brass | 1 |
| 2 | 207184060 | Hex. Screw M8 X 40 | 2 |
| 4 | 293050001 | Flat Washer M8.5 x 18 | 4 |
| 4 | 279000336 | Flat Washer | 4 |
| 1 | 293000105 | Cap Plug | 1 |
| 4 | 232581200 | Hex. Elastic Nut M8 Brass | 4 |
| 1 | 271002011 | Pump Grate | 1 |
| 1 | 207184060 | Hex. Screw M8 X 40 | 1 |
| 1 | 293050001 | Flat Washer M8.5 x 18 | 1 |
| 1 | 279000336 | Flat Washer | 1 |
| 1 | 232581200 | Hex. Elastic Nut M8 Brass | 1 |
| 1 | 271002072 | Drive Shaft | 1 |
| 1 | 271001921 | Bellow | 1 |
| 2 | 293650279 | Clamp Gear 50-70 MM | 2 |
| 1 | 271001922 | Protector Sleeve | 1 |
| 1 | 509000442 | Oeticker Gear Clamp, 25.6-706R | 1 |
| 1 | 509000181 | Oetiker Gear Clamp | 1 |
| 2 | 211000023 | Hex. Screw 10-14 X 7/8” | 2 |
| 2 | 207363560 | Screw Hex. M6 X 35, Scotch Grip | 2 |
| 2 | 234061600 | Stainless Flat Washer M6 | 2 |
| 2 | 232561200 | Elastic Stop Nut M6, Brass | 2 |
| 1 | 267000856 | Impeller Housing | 1 |
| 1 | 267000925 | Wear Ring | 1 |
| 1 | 293200134 | Neoprene Seal | 1 |
| 1 | 267000282 | Plug | 1 |
| 1 | 267000581 | Impeller Shaft | 1 |
| 1 | 267000583 | Conical Bearing | 1 |
| 1 | 250100104 | Elastic Flange Nut M20 | 1 |
| 1 | 293300090 | O-Ring | 1 |
| 2 | 271002071 | Seal | 2 |
| 1 | 293200089 | Oil Seal | 1 |
| 1 | 293370038 | Circlip | 1 |
| 1 | 267000948 | Impeller Ass'y Includes 1160 To 1160a | 1 |
| 1 | 293300044 | O-Ring | 1 |
| 1 | 267000829 | Boot Impeller | 1 |
| 1 | 267000769 | Impeller Cover | 1 |
| 2 | 293300096 | O-Ring | 2 |
| 3 | 205562560 | Socket Head Screw M6 X 25, Scotch Grip | 3 |
| 3 | 234061600 | Stainless Flat Washer M6 | 3 |
| 1 | 267000782 | Siphon Tube | 1 |
| 1 | 267000909 | Venturi | 1 |
| 3 | 250000526 | Hex. Screw M8 X 30, Scotch Grip | 3 |
| 3 | 234080600 | Flat Washer M8, Stainless | 3 |
| 1 | 267000705 | Nozzle | 1 |
| 1 | 293900007 | Venturi Bushing | 1 |
| 1 | 293900010 | Plastic Bushing | 1 |
| 2 | 268000141 | Socket Head Screw M8 X 13 | 2 |
| 1 | 271001840 | Riding Plate | 1 |
| 1 | 271001958 | Gasket | 1 |
| 1 | 271001920 | Anode Zinc | 1 |
| 1 | 207363560 | Screw Hex. M6 X 35, Scotch Grip | 1 |
| 1 | 232561200 | Elastic Stop Nut M6, Brass | 1 |
| 2 | 207184060 | Hex. Screw M8 X 40 | 2 |
| 4 | 293050001 | Flat Washer M8.5 x 18 | 4 |
| 4 | 279000336 | Flat Washer | 4 |
| 1 | 293000105 | Cap Plug | 1 |
| 4 | 232581200 | Hex. Elastic Nut M8 Brass | 4 |
| 1 | 271002011 | Pump Grate | 1 |
| 1 | 207184060 | Hex. Screw M8 X 40 | 1 |
| 1 | 293050001 | Flat Washer M8.5 x 18 | 1 |
| 1 | 279000336 | Flat Washer | 1 |
| 1 | 232581200 | Hex. Elastic Nut M8 Brass | 1 |
| 1 | 271002072 | Drive Shaft | 1 |
| 1 | 271001921 | Bellow | 1 |
| 2 | 293650279 | Clamp Gear 50-70 MM | 2 |
| 1 | 271001922 | Protector Sleeve | 1 |
| 1 | 509000442 | Oeticker Gear Clamp, 25.6-706R | 1 |
| 1 | 509000181 | Oetiker Gear Clamp | 1 |
| 2 | 211000023 | Hex. Screw 10-14 X 7/8” | 2 |
| 2 | 207363560 | Screw Hex. M6 X 35, Scotch Grip | 2 |
| 2 | 234061600 | Stainless Flat Washer M6 | 2 |
| 2 | 232561200 | Elastic Stop Nut M6, Brass | 2 |
| 1 | 267000856 | Impeller Housing | 1 |
| 1 | 267000925 | Wear Ring | 1 |
| 1 | 293200134 | Neoprene Seal | 1 |
| 1 | 267000282 | Plug | 1 |
| 1 | 267000581 | Impeller Shaft | 1 |
| 1 | 267000583 | Conical Bearing | 1 |
| 1 | 250100104 | Elastic Flange Nut M20 | 1 |
| 1 | 293300090 | O-Ring | 1 |
| 2 | 271002071 | Seal | 2 |
| 1 | 293200089 | Oil Seal | 1 |
| 1 | 293370038 | Circlip | 1 |
| 1 | 267000948 | Impeller Ass'y Includes 1160 To 1160a | 1 |
| 1 | 293300044 | O-Ring | 1 |
| 1 | 267000829 | Boot Impeller | 1 |
| 1 | 267000769 | Impeller Cover | 1 |
| 2 | 293300096 | O-Ring | 2 |
| 3 | 205562560 | Socket Head Screw M6 X 25, Scotch Grip | 3 |
| 3 | 234061600 | Stainless Flat Washer M6 | 3 |
| 1 | 267000782 | Siphon Tube | 1 |
| 1 | 267000909 | Venturi | 1 |
| 3 | 250000526 | Hex. Screw M8 X 30, Scotch Grip | 3 |
| 3 | 234080600 | Flat Washer M8, Stainless | 3 |
| 1 | 267000705 | Nozzle | 1 |
| 1 | 293900007 | Venturi Bushing | 1 |
| 1 | 293900010 | Plastic Bushing | 1 |
| 2 | 268000141 | Socket Head Screw M8 X 13 | 2 |
