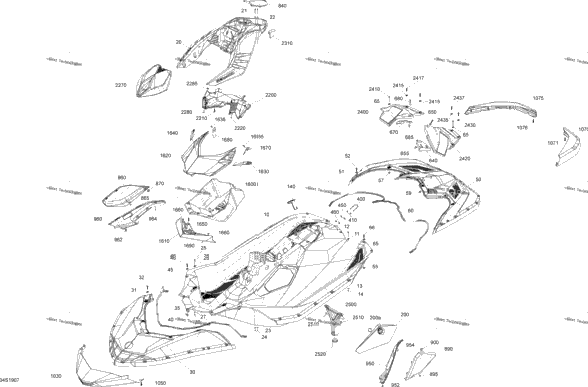

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 291004646 | Deep Black, Mid Deck | ||
| 10 | 291003880 | Oval Washer | 10 |
| 10 | 250000708 | Screw Torx M6 X 50 | 10 |
| 10 | 234062600 | Flat Washer M6, Stainless | 10 |
| 10 | 232561200 | Elastic Stop Nut M6, Brass | 10 |
| 1 | 291005057 | Console Front | 1 |
| 2 | 250000708 | Screw Torx M6 X 50 | 2 |
| 2 | 250200150 | Flat Washer M6, Stainless | 2 |
| 2 | 234062600 | Flat Washer M6, Stainless | 2 |
| 2 | 232561200 | Elastic Stop Nut M6, Brass | 2 |
| 2 | 291003880 | Oval Washer | 2 |
| 1 | 291004581 | Bright White, Front Deck Model B-352 Gulfstream Blue | 1 |
| 1 | 291004725 | Yellow, Front Deck Model B-408 Reef Blue | 1 |
| 1 | 291004727 | Deep Black, Front Deck Model B-407 Mango Orange | 1 |
| 1 | 291004863 | Orange, Front Deck Package TRIXX Model B-101 Can-Am Red | 1 |
| 1 | 291004978 | Quetzal Green, Front Deck Package TRIXX Model B-357 Manta Green | 1 |
| 12 | 291003880 | Oval Washer | 12 |
| 12 | 250001007 | Screw Torx M6.81 X 30 | 12 |
| 5 | 291003793 | Insert | 5 |
| 1 | 293250341 | Seal Joint | 1 |
| 5 | 291003880 | Oval Washer | 5 |
| 5 | 250001007 | Screw Torx M6.81 X 30 | 5 |
| 1 | 291004586 | Bright White, Rear Deck Model B-352 Gulfstream Blue | 1 |
| 1 | 291004728 | Yellow, Rear Deck Model B-408 Reef Blue | 1 |
| 1 | 291004730 | Deep Black, Rear Deck Model B-407 Mango Orange | 1 |
| 1 | 291004864 | Orange, Rear Deck Package TRIXX Model B-101 Can-Am Red | 1 |
| 1 | 291004979 | Quetzal Green, Rear Deck Package TRIXX Model B-357 Manta Green | 1 |
| 16 | 291003880 | Oval Washer | 16 |
| 16 | 250001007 | Screw Torx M6.81 X 30 | 16 |
| 4 | 291003793 | Insert Except Package TRIXX | 4 |
| 2 | 291003793 | Insert Package TRIXX | 2 |
| 2 | 269500252 | M6 Nut Housing Ass'y Package TRIXX | 2 |
| 4 | 291003793 | Insert Package TRIXX | 4 |
| 1 | 293250340 | Seal Joint | 1 |
| 6 | 291003880 | Oval Washer | 6 |
| 6 | 250001007 | Screw Torx M6.81 X 30 | 6 |
| 4 | 250001007 | Screw Torx M6.81 X 30 | 4 |
| 1 | 291003390 | Deep Black, Rear Access Cover | 1 |
| 1 | 291004155 | Deep Black, Front Access Cover Includes 200 TO 200a | 1 |
| 1 | 293300121 | O-Ring | 1 |
| 1 | 292000933 | U-Clamp | 1 |
| 2 | 293050001 | Flat Washer M8.5 x 18 | 2 |
| 2 | 234082600 | Flat Washer 8 mm, Stainless | 2 |
| 2 | 232581200 | Hex. Elastic Nut M8 Brass | 2 |
| 1 | 291003883 | Deep Black, LH Rear Panel Trim | 1 |
| 1 | 291004545 | Black, Rear Support LH | 1 |
| 1 | 250001007 | Screw Torx M6.81 X 30 | 1 |
| 1 | 291003793 | Insert | 1 |
| 1 | 291003884 | Deep Black, RH Rear Panel Trim | 1 |
| 1 | 291004546 | Black, RH Rear Support | 1 |
| 1 | 291003378 | Deep Black, Glove Box Cover | 1 |
| 1 | 291004526 | Red Knee Pads RH Package TRIXX Model B-101 Can-Am Red | 1 |
| 1 | 291004731 | Reef Blue, RH Knee Pads Model B-408 Reef Blue | 1 |
| 1 | 291004732 | Manta Green, RH Knee Pads Package TRIXX Model B-357 Manta Green | 1 |
| 1 | 291004733 | Gulfstream Blue, RH Knee Pads Model B-352 Gulfstream Blue | 1 |
| 1 | 291004734 | Mango Orange, RH Knee Pads Model B-407 Mango Orange | 1 |
| 1 | 293830005 | Rubber Bumper | 1 |
| 1 | 705000321 | Oval Washer | 1 |
| 1 | 291004528 | Red Knee Pads LH Package TRIXX Model B-101 Can-Am Red | 1 |
| 1 | 291004735 | Reef Blue, LH Knee Pads Model B-408 Reef Blue | 1 |
| 1 | 291004736 | Manta Green, LH Knee Pads Package TRIXX Model B-357 Manta Green | 1 |
| 1 | 291004737 | Gulfstream Blue, LH Knee Pads Model B-352 Gulfstream Blue | 1 |
| 1 | 291004738 | Mango Orange, LH Knee Pads Model B-407 Mango Orange | 1 |
| 1 | 291004524 | Bright White, LH Panel Trim Package TRIXX Model Can-Am Red | 1 |
| 1 | 291004576 | LH Panel Trim Package TRIXX Model B-357 Manta Green | 1 |
| 1 | 293150230 | Tuflok Plastic Rivet | 1 |
| 1 | 211000023 | Hex. Screw 10-14 X 7/8” | 1 |
| 1 | 291004525 | Bright White, RH Panel Trim Package TRIXX Model Can-Am Red | 1 |
| 1 | 291004577 | Deep Black, RH Panel Trim Package TRIXX Model B-357 Manta Green | 1 |
| 1 | 291004567 | Front Bumper | 1 |
| 1 | 291004568 | Black, LH Rear Bumper Package 2UP IBR | 1 |
| 4 | 250001007 | Screw Torx M6.81 X 30 Package 2UP IBR | 4 |
| 1 | 291004569 | Black, RH Rear Bumper Package 2UP IBR | 1 |
| 1 | 295100504 | Storage Bin Kit Package CONVENIENT | 1 |
| 1 | 295100553 | Front Deflector Kit Package CONVENIENT | 1 |
| 1 | 269800472 | LH Retaining Strap Package CONVENIENT | 1 |
| 1 | 269800498 | RH Retaining Strap Package CONVENIENT | 1 |
| 5 | 250001007 | Screw Torx M6.81 X 30 Package CONVENIENT | 5 |
| 2 | 250001007 | Screw Torx M6.81 X 30 Package CONVENIENT | 2 |
| 2 | 293830005 | Rubber Bumper Package CONVENIENT | 2 |
| 1 | 269800541 | LH Hook Package CONVENIENT | 1 |
| 1 | 269800542 | RH Hook Package CONVENIENT | 1 |
| 6 | 269800662 | Rubber Bumper Package CONVENIENT | 6 |
| 1 | 291004575 | Black, Inferior Cover | 1 |
| 2 | 250001007 | Screw Torx M6.81 X 30 | 2 |
| 2 | 211000023 | Hex. Screw 10-14 X 7/8” | 2 |
| 1 | 291004592 | Gulfstream Blue, Front Trim Model B-352 Gulfstream Blue | 1 |
| 1 | 291004594 | Dragon Red, Front Trim Package TRIXX Model B-101 Can-Am Red | 1 |
| 1 | 291004739 | Yellow, Front Trim Model B-408 Reef Blue | 1 |
| 1 | 291004741 | Orange Mango, Frontal Trim Model B-407 Mango Orange | 1 |
| 1 | 291004981 | Manta Green, Frontal Trim Package TRIXX Model B-357 Manta Green | 1 |
| 1 | 250000829 | Torx-Truss M/S Stlss M6 X 20 | 1 |
| 1 | 269500252 | M6 Nut Housing Ass'y | 1 |
| 1 | 291003702 | Cap | 1 |
| 1 | 291004539 | Can-Am Red, RH Footrest Ass'y Package TRIXX | 1 |
| 1 | 250000708 | Screw Torx M6 X 50 Package TRIXX | 1 |
| 3 | 291003880 | Oval Washer Package TRIXX | 3 |
| 2 | 250001007 | Screw Torx M6.81 X 30 Package TRIXX | 2 |
| 1 | 291004540 | Black, LH Footrest Ass'y Package TRIXX | 1 |
| 1 | 291003440 | Rear Support | 1 |
| 2 | 291003793 | Insert | 2 |
| 1 | 291003694 | Rear Support Mount | 1 |
