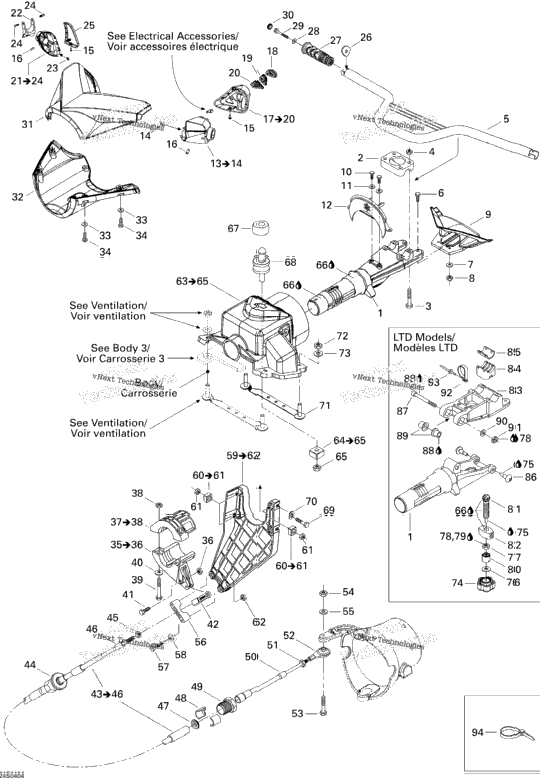

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 277000562400 | Steering Stem | ||
| 277000758400 | Steering Stem LTD Models | ||
| 277000142 | STEERING CLAMP | ||
| 4 | 207085060 | Hex. Screw M8 X 50 | 4 |
| 207087060 | HEX. SCREW M8 X 70 LTD Models | ||
| 4 | 232581600 | Hex. Elastic Nut M8 | 4 |
| 277001012 | Handle Bar | ||
| 277001132 | Handle Bar LTD Models | ||
| 2 | 207063060 | Hex. Screw M6 X 30 | 2 |
| 2 | 234061600 | Stainless, Flat Washer M6 | 2 |
| 2 | 232561600 | Hex. Elastic Stop Nut M6 | 2 |
| 277001100 | Handle Pad Metalic Silver (M-519) | ||
| 277001241 | Handle Pad, Pearl Blue LTD Models | ||
| 2 | 211000036 | HEX. FLANGED SCREW 1/4-20 X 1/2 | 2 |
| 2 | 234062600 | Flat Washer M6, Stainless | 2 |
| 1 | 277000549 | PLATE | 1 |
| 277000766 | Plate, Black LTD Models | ||
| 1 | 277000954 | Housing Ass'y Includes 13 To 14 | 1 |
| 1 | 232860600 | SQUARE NUT M6 | 1 |
| 1 | 209630960 | PHILLIPS SCREW M3.9 X 9.5 | 1 |
| 2 | 250000036 | Socket Head Screw M6 X 16 | 2 |
| 277001103 | Housing Cover Ass’Y Includes 17 To 20 | ||
| 277001308 | Housing Cover Ass’Y LTD Models, Includes 17 To 20 | ||
| 1 | 278001713 | Stop Knob | 1 |
| 278001714 | MODE KNOB | ||
| 1 | 278001715 | SET KNOB | 1 |
| 1 | 277000995 | Throttle Housing Ass’Y Includes 21 To 24 | 1 |
| 1 | 277001107 | Throttle Handle | 1 |
| 2 | 277000381 | PIN | 2 |
| 277001102 | Throttle Housing Cover | ||
| 277001129 | Throttle Housing Cover LTD Models | ||
| 2 | 277000554 | Handle Grip Insert | 2 |
| 2 | 277001162 | Handle Grip, Yellow | 2 |
| 2 | 277001243 | Handle Grip, Pearl Blue LTD Models | 2 |
| 2 | 250000002 | Hex. Screw M6 X 30, Scotch Grip | 2 |
| 2 | 277000203 | Black, Cap | 2 |
| 1 | 277000952 | UPPER STEERING COVER, BLACK | 1 |
| 277001098 | Upper Steering Cover, Earth Gray LTD Models | ||
| 1 | 277001145 | LOWER STEERING COVER, BLACK | 1 |
| 277001099 | Lower Steering Cover, Earth Gray LTD Models | ||
| 6 | 234051600 | Flat Washer M5, Stainless | 6 |
| 6 | 241141660 | Hex. Flange Screw K40 X 16 | 6 |
| 277000518 | Steering Stem Arm Includes 35 To 36 | ||
| 1 | 232561600 | Hex. Elastic Stop Nut M6 | 1 |
| 277000519 | Arm Thrust Includes 37 To 38 | ||
| 2 | 207162560 | Hex. Screw M6 X 25 | 2 |
| 1 | 211000081 | Hex. Screw M6 X 30 | 1 |
| 1 | 277001180 | Ball Joint | 1 |
| 277000949 | Steering Cable Ass’Y Includes 43 To 46 | ||
| 1 | 277000782 | Ajustment Knob | 1 |
| 1 | 211100056 | Hex. Nut 1/4"-28 | 1 |
| 1 | 277000441 | Terminal Wiper | 1 |
| 1 | 293830063 | Rubber Washer | 1 |
| 2 | 277000783 | Half-Ring | 2 |
| 1 | 277000784 | Steering Cable Lock | 1 |
| 1 | 277000775 | Ball Joint | 1 |
| 1 | 207063560 | Hex. Screw M6 X 35 | 1 |
| 1 | 234061600 | Stainless, Flat Washer M6 | 1 |
| 1 | 277000162 | Support Thrust | 1 |
| 2 | 207065060 | Hex. Screw M6 X 50 | 2 |
| 277000516 | CABLE SUPPORT Includes 59 To 62 | ||
| 3 | 269500252 | M6 Nut Housing Ass'y Includes 60 To 61 | 3 |
| 3 | 232061600 | Hex. Nut M6 | 3 |
| 5 | 232561600 | Hex. Elastic Stop Nut M6 | 5 |
| 1 | 277000898 | Steering Support Includes 63 To 65 | 1 |
| 271001115 | Nut Housing Ass’Y Includes 64 To 65 | ||
| 1 | 232001600 | HEX. NUT M10 | 1 |
| 293550010 | Synthetic Grease, 400 G | ||
| 1 | 293830078 | RUBBER PAD | 1 |
| 291001420 | Latch Stud | ||
| 3 | 207162060 | Hex. Forming Screw M6 X 20 | 3 |
| 3 | 234061600 | Stainless, Flat Washer M6 | 3 |
| 1 | 277001072 | STEERING SUPPORT | 1 |
| 2 | 232581600 | Hex. Elastic Nut M8 | 2 |
| 2 | 234081600 | Stainless, Flat Washer 8 mm | 2 |
| 1 | 277000764 | ADJUSTER HANDLE LTD Models | 1 |
| 1 | 293800060 | Loctite 243, 10 ml LTD Models | 1 |
| 1 | 234082600 | Flat Washer 8 mm, Stainless LTD Models | 1 |
| 1 | 232180600 | Hex. Jam Nut M8 LTD Models | 1 |
| 1 | 293800005 | Loctite 271, 10 ml LTD Models | 1 |
| 1 | 219704458 | Was 293800041 Loctite Primer 7649 LTD Models | 1 |
| 277000786 | Stopper Bushing LTD Models | ||
| 1 | 211000145 | ADJUSTER SCREW LTD Models | 1 |
| 1 | 277000761 | BLOCK LTD Models | 1 |
| 277000901 | Steering Support LTD Models | ||
| 1 | 277000762 | STOPPER LTD Models | 1 |
| 1 | 293830098 | RUBBER PAD LTD Models | 1 |
| 2 | 277000763 | THREADED PIVOT LTD Models | 2 |
| 1 | 250000004 | SOCKET HEAD SCREW M10 X 73 SCOTCH GRIP LTD Models | 1 |
| 219704461 | LUBRICANT LOCTITE LB 8150 236ML LTD Models | ||
| 2 | 277000844 | SUPPORT BUSHING LTD Models | 2 |
| 1 | 234001600 | Flat Washer 10 mm, Stainless LTD Models | 1 |
| 1 | 232100600 | Hex. Jam Nut M10 LTD Models | 1 |
| 293750021 | CLAMP TIE LTD Models | ||
| 1 | 293150008 | Pop Rivet 3/16" LTD Models | 1 |
| 2 | 293750008 | Tie Wrap 368 mm | 2 |
