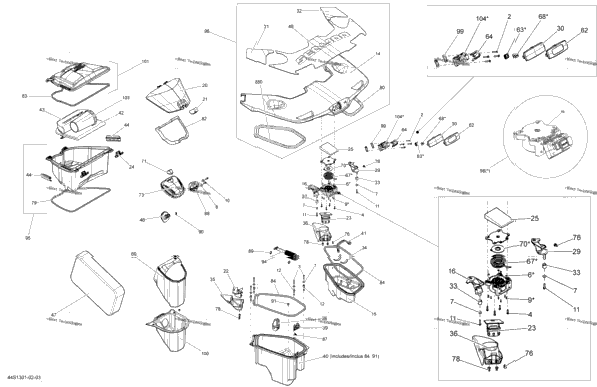

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 205364560 | SOCKET SCREW HEAD M6 X 45 | ||
| 4 | 205463560 | Socket Head Screw M6 X 35 | 4 |
| 4 | 211000023 | Hex. Screw 10-14 X 7/8” | 4 |
| 4 | 234032600 | Flat Washer M3, Stainless | 4 |
| 6 | 234062600 | Flat Washer M6, Stainless | 6 |
| 2 | 234082600 | Flat Washer 8 mm, Stainless | 2 |
| 6 | 241731260 | Oval Philipp Screw KA30 x 12 | 6 |
| 2 | 243162060 | Hex. Flange Screw M6.81 x 20 | 2 |
| 2 | 243162560 | Hex. Flange Screw M6.81 X 25, Plastite | 2 |
| 4 | 250100150 | Expansion Nut M6 X 1 | 4 |
| 1 | 264000034 | Rear Platform Ass'y | 1 |
| 1 | 264000002 | RH Rear Tray | 1 |
| 264000003 | LH PIVOT SUPPORT | ||
| 1 | 264000090 | Glove Door, Antracite | 1 |
| 1 | 264000016 | Tinted Black Glove Door | 1 |
| 1 | 264000091 | Black, Latch | 1 |
| 1 | 264000020 | LH Latch | 1 |
| 1 | 264000021 | RH Latch | 1 |
| 2 | 264000024 | Latch | 2 |
| 1 | 264000025 | Platform Foam | 1 |
| 264000032 | RH PIVOT SUPPORT | ||
| 264000033 | REAR REWIND CAP | ||
| 264000040 | ANTI SLIP MAT_DECK FL | ||
| 264000041 | ANTI SLIP MAT_DECK FR | ||
| 264000042 | SPACER | ||
| 264000043 | TRAY PAD | ||
| 264000055 | LH LATCH BASE, BLACK | ||
| 264000056 | RH LATCH BASE, BLACK | ||
| 1 | 264000092 | Stiffener | 1 |
| 264000093 | STIFFENER | ||
| 1 | 264000097 | LH Tray | 1 |
| 1 | 269500408 | Strap | 1 |
| 1 | 269501744 | Drybag, 10 L | 1 |
| 269501318 | ANCHOR SANDBAG | ||
| 2 | 269501609 | Clip | 2 |
| 279000196 | CABLE GROMMET | ||
| 280000493 | Cover GTX iS LTD | ||
| 1 | 291002585 | Rear Platform Carpet | 1 |
| 291002725 | REAR REWIND FRAME | ||
| 291002726 | BUTTON | ||
| 291002727 | UNDER CAM | ||
| 219704363 | ROPE 3/16 3000MM LONG | ||
| 1 | 291002754 | Button Cap | 1 |
| 291002761 | PROTECTION LINER | ||
| 291002762 | INSIDE COVER | ||
| 291002793 | SEA-DOO DECAL | ||
| 291002814 | REMOVABLE CASE ASS'Y | ||
| 2 | 293150089 | Tuflok Plastic Rivet | 2 |
| 4 | 293150123 | Pop Rivet 3/16" | 4 |
| 1 | 219704374 | Gasket 1000Mm Long | 1 |
| 1 | 219704375 | Was 293250186 Gasket | 1 |
| 1 | 293250204 | Gasket | 1 |
| 293250210 | NEOPRENE SEAL | ||
| 1 | 219704378 | Gasket 3000Mm Long | 1 |
| 1 | 293730006 | Black, Dart | 1 |
| 1 | 293730056 | Bracket | 1 |
| 2 | 293750001 | Tie Wrap 94 mm | 2 |
| 1 | 293750002 | Tie Wrap 142 mm | 1 |
| 1 | 293830005 | Rubber Bumper | 1 |
| 1 | 264000099 | Shock Ass'y | 1 |
| 1 | 264000087 | Storage Bin Ass'y | 1 |
| 1 | 291003022 | Retractable Rope Ass'y | 1 |
| 291002755 | DOUBLE CAGE NUT ASS'Y | ||
| 264000031 | GLOVE BOX ASS'Y | ||
| 1 | 264000009 | Storage Bin Cover Ass'y | 1 |
| 1 | 295100330 | Safety Kit | 1 |
| 291003023 | JAM CLEAT SYSTEM ASS'Y |
