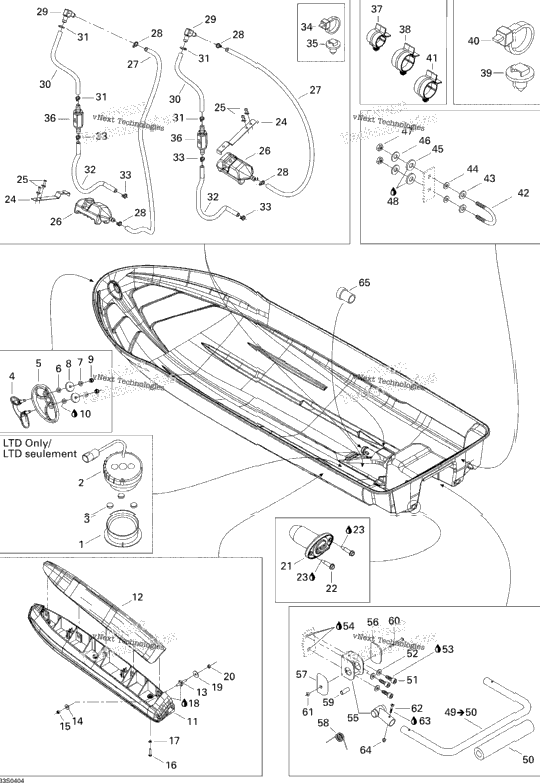

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 292000925 | DEPTH SENDER BASE | ||
| 278001787 | DEPTH SENDER | ||
| 293550035 | Gel Pad | ||
| 1 | 292000708 | Bow Eye Ass'y, Black | 1 |
| 1 | 292000977 | Bow-eye, Blue LTD Models | 1 |
| 1 | 292000453 | Shell, Black | 1 |
| 292000976 | Shell, Blue LTD Models | ||
| 2 | 234081600 | Stainless, Flat Washer 8 mm | 2 |
| 2 | 250200011 | Flat Washer 8 mm, Stainless | 2 |
| 2 | 293830037 | Rubber Washer | 2 |
| 2 | 232581600 | Hex. Elastic Nut M8 | 2 |
| 1 | 296000309 | Silicone Sealant 51388, 300 ml | 1 |
| 1 | 292000818 | RH SPONSON | 1 |
| 292000816 | LH SPONSON | ||
| 1 | 292000815 | RH SPONSON COVER | 1 |
| 1 | 292000817 | LH SPONSON COVER | 1 |
| 293450227 | THREADED INSERT | ||
| 10 | 234062600 | Flat Washer M6, Stainless | 10 |
| 10 | 232561600 | Hex. Elastic Stop Nut M6 | 10 |
| 211000037 | Phillips Screw 10-14 X 7/8” | ||
| 3 | 234051600 | Flat Washer M5, Stainless | 3 |
| 250200046 | Flat Washer M6 | ||
| 2 | 292000897 | Drain Plug | 2 |
| 4 | 211000023 | Hex. Screw 10-14 X 7/8” | 4 |
| 2 | 292000398 | LH SPRING CLIP | 2 |
| 4 | 293150037 | Avdel Rivet 3/16" | 4 |
| 292000688 | Bailer Screen | ||
| 2 | 219704412 | Polyurethane Hose 8 MM 3000MM Long | 2 |
| 4 | 293750001 | Tie Wrap 94 mm | 4 |
| 2 | 293710057 | ELBOW FITTING 90 | 2 |
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
| 1 | 293730018 | Mount Dart | 1 |
| 276000093 | Check Valve | ||
| 275500528 | Hose Retainer | ||
| 1 | 275500527 | Cable Retainer | 1 |
| 4 | 293730018 | Mount Dart | 4 |
| 4 | 414115200 | Tie-Rap 180 mm | 4 |
| 3 | 275500526 | Retainer LTD Models | 3 |
| 2 | 292000933 | U-Clamp | 2 |
| 4 | 293050001 | Flat Washer M8.5 x 18 | 4 |
| 4 | 234081100 | Flat Washer 8 mm, Nylon | 4 |
| 293830107 | RUBBER WASHER | ||
| 4 | 250200011 | Flat Washer 8 mm, Stainless | 4 |
| 4 | 232581600 | Hex. Elastic Nut M8 | 4 |
| 292000778 | Stair Tube Ass’Y Includes 49 to 50 | ||
| 1 | 292000781 | PROTECTIVE SLEEVE | 1 |
| 6 | 250000076 | Socket Head Screw M6 X 25, Scotch Grip | 6 |
| 6 | 234061600 | Stainless, Flat Washer M6 | 6 |
| 1 | 219704460 | Was 293800066 Sealant Loctite 5900, 300 ml | 1 |
| 292000539 | Support Ass’Y | ||
| 292000540 | RH Support Cap | ||
| 292000548 | LH Support Cap | ||
| 2 | 292000541 | RECALL SPRING | 2 |
| 292000542 | Plastic Tube | ||
| 211000186 | Phillips Screw | ||
| 2 | 212000005 | NUT-STOP ELASTIC MS-17830 | 2 |
| 2 | 205063560 | Socket Head Screw M6 X 35 | 2 |
| 1 | 293800060 | Loctite 243, 10 ml | 1 |
| 2 | 232361600 | Nut M6 | 2 |
| 1 | 292000975 | HULL INSERT, 41 MM | 1 |
