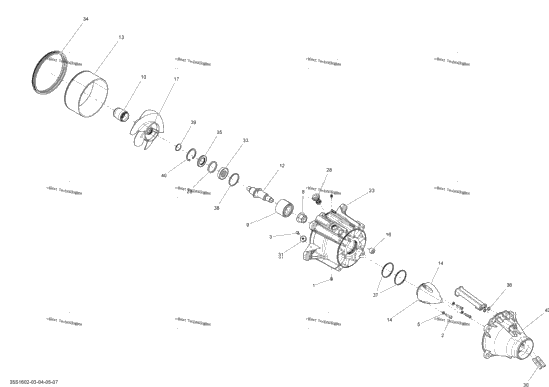

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 2 | 204100269 | Hex. Screw 10-32 X 3/8", Stainless | 2 |
| 2 | 204100269 | Hex. Screw 10-32 X 3/8", Stainless | 2 |
| 3 | 205562560 | Socket Head Screw M6 X 25, Scotch Grip | 3 |
| 3 | 205562560 | Socket Head Screw M6 X 25, Scotch Grip | 3 |
| 1 | 207361660 | Hex. Screw M6 X 16, Scotch Grip | 1 |
| 1 | 207361660 | Hex. Screw M6 X 16, Scotch Grip | 1 |
| 3 | 234061600 | Stainless Flat Washer M6 | 3 |
| 3 | 234061600 | Stainless Flat Washer M6 | 3 |
| 1 | 250100104 | Elastic Flange Nut M20 | 1 |
| 1 | 250100104 | Elastic Flange Nut M20 | 1 |
| 1 | 267000900 | Angled Bearing | 1 |
| 1 | 267000900 | Angled Bearing | 1 |
| 1 | 267000206 | Impeller Boot | 1 |
| 1 | 267000206 | Impeller Boot | 1 |
| XXXX | Not Available As Spare Part - Impeller Boot | ||
| XXXX | Not Available As Spare Part - Impeller Boot | ||
| 1 | 267000388 | Impeller Shaft | 1 |
| 1 | 267000388 | Impeller Shaft | 1 |
| 1 | 267000419 | Wear Ring | 1 |
| 1 | 267000419 | Wear Ring | 1 |
| XXXX | Not Available As Spare Part - Wear Ring | ||
| XXXX | Not Available As Spare Part - Wear Ring | ||
| 1 | 267000428 | Impeller Cover | 1 |
| 1 | 267000428 | Impeller Cover | 1 |
| 1 | 267000469 | Black, Plastic Plug | 1 |
| 1 | 267000469 | Black, Plastic Plug | 1 |
| 1 | 267000532 | Stainless Impeller Ass'y | 1 |
| 1 | 267000532 | Stainless Impeller Ass'y | 1 |
| XXXX | Not Available As Spare Part - Stainless Impeller Ass'y | ||
| XXXX | Not Available As Spare Part - Stainless Impeller Ass'y | ||
| 1 | 267000852 | Impeller Housing | 1 |
| 1 | 267000852 | Impeller Housing | 1 |
| 2 | 267000282 | Plug | 2 |
| 2 | 267000282 | Plug | 2 |
| 1 | 271001393 | Spacer | 1 |
| 1 | 271001393 | Spacer | 1 |
| 2 | 271001885 | Siphon Tube | 2 |
| 2 | 271001885 | Siphon Tube | 2 |
| 1 | 271001920 | Anode Zinc | 1 |
| 1 | 271001920 | Anode Zinc | 1 |
| 1 | 293200086 | Oil Seal | 1 |
| 1 | 293200087 | Neoprene Seal | 1 |
| 1 | 293200089 | Oil Seal | 1 |
| 1 | 293200086 | Oil Seal | 1 |
| 1 | 293200087 | Neoprene Seal | 1 |
| 1 | 293200089 | Oil Seal | 1 |
| 2 | 293300013 | O-Ring | 2 |
| 2 | 293300086 | O-Ring | 2 |
| 1 | 293300090 | O-Ring | 1 |
| 1 | 293300114 | O-Ring | 1 |
| 1 | 293370038 | Circlip | 1 |
| XXXX | Not Available As Spare Part - Venturi | ||
| 1 | 267000864 | Venturi | 1 |
