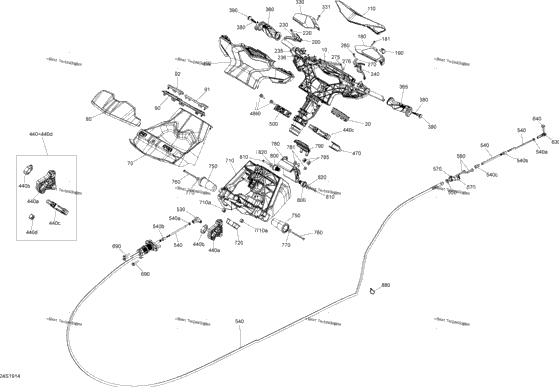

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 277001979 | Steering Column | 1 |
| 1 | 277001874 | Wear Ring | 1 |
| 1 | 277001980 | Cluster Support | 1 |
| 1 | 277001981 | Deep Black, Cluster Support Cover | 1 |
| 1 | 705011286 | Speed Indicator Bezel | 1 |
| 1 | 705012349 | Deep Black, LH Trim Gauge | 1 |
| 1 | 705012351 | Deep Black, RH Trim Gauge | 1 |
| 1 | 277001988 | Deep Black, Steering Pad | 1 |
| 1 | 277001983 | Deep Black, LH Housing Cover | 1 |
| 1 | 211000023 | Hex. Screw 10-14 X 7/8” | 1 |
| 1 | 277002052 | Stop/Start Button | 1 |
| 1 | 277001944 | Throttle Handle | 1 |
| 1 | 234052600 | Flat Washer 5 mm, Stainless | 1 |
| 2 | 241142560 | Hex. Flange Screw K40 X 25 | 2 |
| 2 | 234042600 | Flat Washer 4 mm, Stainless | 2 |
| 1 | 277001945 | Reverse Handle | 1 |
| 1 | 277002067 | RH Housing Cover | 1 |
| 1 | 277001946 | Deep Black, RH Handle Grip | 1 |
| 1 | 277001958 | Deep Black, LH Handle Grip | 1 |
| 2 | 250001007 | Screw Torx M6.81 X 30 | 2 |
| 2 | 277000203 | Black, Cap | 2 |
| 1 | 277001985 | Steering Cover | 1 |
| 1 | 295501183 | Steering Arm Kit Includes 440 TO 440d | 1 |
| XXXX | Not Available As Spare Part - Arm Steering Not available seperately | ||
| XXXX | Not Available As Spare Part - Bushing Steering Not available seperately | ||
| XXXX | Not Available As Spare Part - Arm Not available seperately | ||
| 2 | 269501166 | Nut Housing Ass'y | 2 |
| 1 | 277001654 | Spacer | 1 |
| 2 | 250000399 | Hexagonal Cap Screw M6 X35 | 2 |
| 1 | 277002085 | C Clamp | 1 |
| 1 | 277002011 | End Fitting | 1 |
| 1 | 277001989 | Steering Cable Includes 540 TO 540c | 1 |
| 2 | 211100056 | Hex. Nut 1/4"-28 | 2 |
| 2 | 277001582 | Wiper Rod | 2 |
| 2 | 277001583 | End Piece | 2 |
| 1 | 293830063 | Rubber Washer | 1 |
| 2 | 277001856 | Ring Halves | 2 |
| 1 | 277000775 | Ball Joint | 1 |
| 1 | 250000970 | Hex Sems Screw M6X35 | 1 |
| 1 | 277001993 | Steering Support Ass'y Includes 710 TO 710a | 1 |
| 1 | 277001741 | Wear Ring | 1 |
| 2 | 277001605 | Steering Support Pivot | 2 |
| 2 | 207168060 | Hex Screw M6 X 80 | 2 |
| 2 | 234062600 | Flat Washer M6, Stainless | 2 |
| 1 | 277001996 | Adjustment Handle | 1 |
| 2 | 293830005 | Rubber Bumper | 2 |
| 1 | 277002010 | Lock | 1 |
| 2 | 277001652 | Pivot | 2 |
| 2 | 207064060 | Hex. Screw M6 X 40 | 2 |
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
