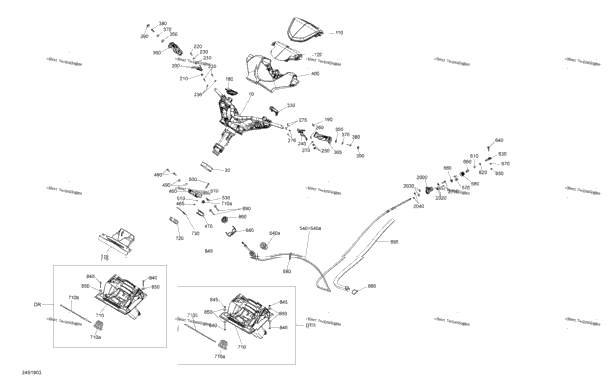

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 277001963 | Steering Column | 1 |
| 1 | 277001653 | Wear Ring | 1 |
| 1 | 277001904 | Black Steering Pad | 1 |
| 1 | 277002096 | Trim Steering Column Manta Green | 1 |
| 1 | 277001921 | Handle Bar Foam | 1 |
| 1 | 277001860 | Housing Cover LH | 1 |
| 1 | 277001887 | Red, Knob Switch | 1 |
| 1 | 277001944 | Throttle Handle | 1 |
| 2 | 293900091 | Bushing | 2 |
| 1 | 241142560 | Hex. Flange Screw K40 X 25 | 1 |
| 1 | 234042600 | Flat Washer 4 mm, Stainless | 1 |
| 2 | 241142560 | Hex. Flange Screw K40 X 25 | 2 |
| 2 | 234042600 | Flat Washer 4 mm, Stainless | 2 |
| 1 | 277001945 | Reverse Handle | 1 |
| 1 | 277001755 | Housing Cover RH | 1 |
| 2 | 277001863 | Insert Grip Handle | 2 |
| 1 | 277001946 | Deep Black, RH Handle Grip | 1 |
| 1 | 277001958 | Deep Black, LH Handle Grip | 1 |
| 2 | 234062600 | Flat Washer M6, Stainless | 2 |
| 2 | 250000002 | Hex. Screw M6 X 30, Scotch Grip | 2 |
| 2 | 277000203 | Black, Cap | 2 |
| 1 | 277001969 | Steering Cover | 1 |
| 1 | 277002019 | Support Ass'y | 1 |
| 1 | 232561200 | Elastic Stop Nut M6, Brass | 1 |
| 1 | 277001654 | Spacer | 1 |
| 2 | 207163560 | Hex. Screw M6 X 35 | 2 |
| 1 | 207064060 | Hex. Screw M6 X 40 | 1 |
| 2 | 234061600 | Stainless Flat Washer M6 | 2 |
| 1 | 277001180 | Ball Joint | 1 |
| 1 | 277001578 | Steering Cable Ass'y Includes 540 To 540d | 1 |
| 1 | 277000782 | Ajustment Knob | 1 |
| 1 | 293830063 | Rubber Washer | 1 |
| 2 | 277001527 | Half Ring | 2 |
| 1 | 277001729 | Steering Cable Lock | 1 |
| 1 | 277001582 | Wiper Rod | 1 |
| 1 | 211100056 | Hex. Nut 1/4"-28 | 1 |
| 1 | 277000775 | Ball Joint | 1 |
| 1 | 207663560 | Hex. Screw M6 X 35 | 1 |
| 1 | 277001583 | End Piece | 1 |
| 1 | 234061600 | Stainless Flat Washer M6 | 1 |
| 1 | 277001655 | Thrust Support Ass'y | 1 |
| 2 | 207165060 | Hex. Screw M6 X 50 | 2 |
| 1 | 277001971 | Support Ass'y Includes 710 To 710b | 1 |
| 1 | 517302716 | Cap | 1 |
| 293250008 | GASKET PAC = 1.0m | ||
| 1 | 293000116 | Deflector | 1 |
| 1 | 277001741 | Wear Ring | 1 |
| 4 | 245064560 | Hex Cap Screw M6X1.0X45 S.Grip Package SE B-357 Manta Green | 4 |
| 4 | 245064560 | Hex Cap Screw M6X1.0X45 S.Grip Package SE, B-414 Metalic Blue Long Beach | 4 |
| 4 | 232561200 | Elastic Stop Nut M6, Brass Package SE, B-414 Metalic Blue Long Beach | 4 |
| 4 | 250200022 | Flat Washer M6.6 X 22 Package SE B-357 Manta Green | 4 |
| 8 | 250200022 | Flat Washer M6.6 X 22 Package SE, B-414 Metalic Blue Long Beach | 8 |
| 1 | 293720090 | Cable Grommet | 1 |
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
| 1 | 293750008 | Tie Wrap 368 mm | 1 |
| 1 | 276000470 | Shield Corrugated 22MM - 1100MM | 1 |
| 1 | 277001881 | Cable Adaptor Ass'y | 1 |
| 2 | 207063060 | Hex. Screw M6 X 30 | 2 |
| 2 | 250200114 | Sealing Washer | 2 |
| 2 | 232561200 | Elastic Stop Nut M6, Brass | 2 |
