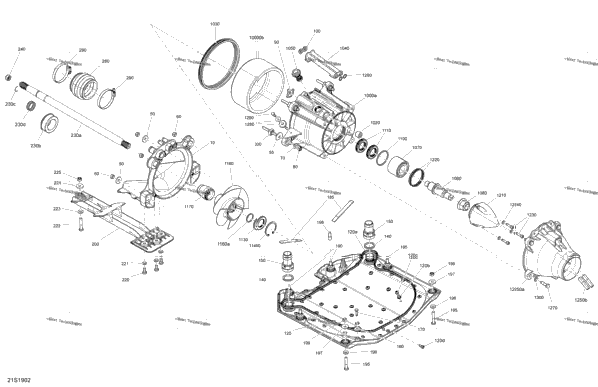

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 271001964 | Pump Support | 1 |
| 4 | 250300046 | Square Stud | 4 |
| 2 | 279000336 | Flat Washer Package STD | 2 |
| 2 | 279000326 | Flat Washer EXCEPT Package STD | 2 |
| 4 | 232581200 | Hex. Elastic Nut M8 Brass | 4 |
| 4 | 293050001 | Flat Washer M8.5 x 18 | 4 |
| 1 | 271002029 | Reducer, Green | 1 |
| 2 | 293250084 | Watertight Seal | 2 |
| 1 | 271001860 | Riding Plate Ass'y Includes 120 to 120d | 1 |
| 1 | 293250235 | Seal | 1 |
| 16 | 250200114 | Sealing Washer | 16 |
| 40 | 250000384 | Torx Screw M6 X 14 | 40 |
| 1 | 250500005 | Socket Drain Plug M6 X 12 | 1 |
| 2 | 293300121 | O-Ring | 2 |
| 2 | 293710166 | Straight Fitting | 2 |
| 1 | 271001920 | Anode Zinc | 1 |
| 1 | 250000965 | Hex Screw M6 X 20 | 1 |
| 2 | 219704372 | Was 293250087 Gasket | 2 |
| 2 | 250000782 | Hexagonal Head Cap Screw M8 X 45 Package STD | 2 |
| 2 | 250000812 | Hexagonal Head Cap Screw M8 X 75 EXCEPT Package STD | 2 |
| 4 | 250000782 | Hexagonal Head Cap Screw M8 X 45 | 4 |
| 6 | 293050001 | Flat Washer M8.5 x 18 | 6 |
| 6 | 279000336 | Flat Washer Package STD | 6 |
| 1 | 293000105 | Cap Plug EXCEPT Package STD | 1 |
| 6 | 232581200 | Hex. Elastic Nut M8 Brass Package STD | 6 |
| 1 | 271001969 | Pump Grate | 1 |
| 3 | 207381660 | Hex. Screw M8 X 16, Scotch Grip | 3 |
| 3 | 234081600 | Stainless, Flat Washer 8 mm | 3 |
| 1 | 250000782 | Hexagonal Head Cap Screw M8 X 45 | 1 |
| 1 | 293050001 | Flat Washer M8.5 x 18 | 1 |
| 1 | 279000336 | Flat Washer Package STD | 1 |
| 1 | 232581200 | Hex. Elastic Nut M8 Brass Package STD | 1 |
| 1 | 271002004 | Drive Shaft | 1 |
| 1 | 295501177 | Carbon Ring Kit | 1 |
| 1 | 271001575 | C-Clip | 1 |
| 2 | 293300044 | O-Ring | 2 |
| 1 | 272000173 | Drive Shaft Plug | 1 |
| 1 | 271001933 | Bellow | 1 |
| 2 | 293650079 | Norma Clamp | 2 |
| 1 | 271002018 | Impeller Housing | 1 |
| 1 | 267000419 | Wear Ring | 1 |
| 1 | 267000469 | Black, Plastic Plug | 1 |
| 1 | 293200087 | Neoprene Seal | 1 |
| 1 | 271000785 | Water Outlet | 1 |
| 1 | 267000282 | Plug | 1 |
| 1 | 267000388 | Impeller Shaft | 1 |
| 1 | 267000900 | Angled Bearing | 1 |
| 1 | 250100104 | Elastic Flange Nut M20 | 1 |
| 1 | 293300090 | O-Ring | 1 |
| 2 | 271002071 | Seal | 2 |
| 1 | 293200089 | Oil Seal | 1 |
| 1 | 293370038 | Circlip | 1 |
| 1 | 267000940 | Impeller Ass'y Includes 1160 to 1160a | 1 |
| 1 | 293300044 | O-Ring | 1 |
| 1 | 267000206 | Impeller Boot | 1 |
| 1 | 267000428 | Impeller Cover | 1 |
| 2 | 293300086 | O-Ring | 2 |
| 3 | 205562560 | Socket Head Screw M6 X 25, Scotch Grip | 3 |
| 3 | 234061600 | Stainless Flat Washer M6 | 3 |
| 1 | 267000864 | Venturi | 1 |
| 2 | 271001885 | Siphon Tube | 2 |
| 2 | 293300013 | O-Ring | 2 |
| 4 | 234081600 | Stainless, Flat Washer 8 mm | 4 |
