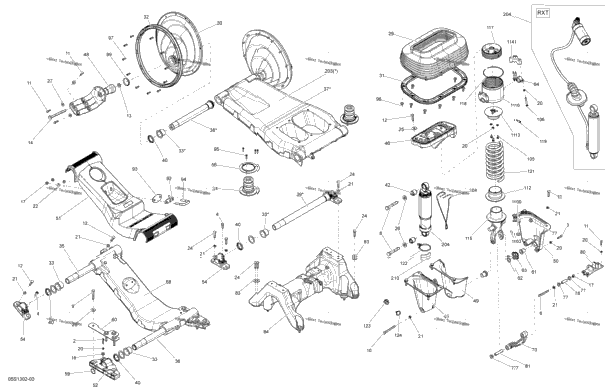

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 2 | 205562060 | Socket Head Screw M6 X 20, Scotch Grip | 2 |
| 13 | 205562560 | Socket Head Screw M6 X 25, Scotch Grip | 13 |
| 4 | 205582060 | Socket Head Screw M8 X 20, Scotch Grip | 4 |
| 1 | 207086060 | HEX. SCREW M8 X 60 | 1 |
| 207227060 | HEX. SCREW M12 X 70, SCOTCH GRIP | ||
| 8 | 207285060 | Hex. Screw M8 X 50, Scotch Grip | 8 |
| 207287560 | HEX. SCREW M8 X 75, SCOTCH GRIP | ||
| 1 | 207362060 | Hex. Screw M6 X 20, Scotch Grip | 1 |
| 1 | 207383060 | Hex. Screw M8 X 30, Scotch Grip | 1 |
| 2 | 211200051 | Flat Washer | 2 |
| 2 | 230201060 | Hex. Screw M10 X 110, Scotch Grip | 2 |
| 4 | 232581200 | Hex. Elastic Nut M8 Brass | 4 |
| 2 | 234001600 | Flat Washer 10 mm, Stainless | 2 |
| 1 | 234061600 | Stainless Flat Washer M6 | 1 |
| 1 | 234080600 | Flat Washer M8, Stainless | 1 |
| 2 | 234081600 | Stainless, Flat Washer 8 mm | 2 |
| 8 | 234082600 | Flat Washer 8 mm, Stainless | 8 |
| 8 | 250000526 | Hex. Screw M8 X 30, Scotch Grip | 8 |
| 8 | 250200011 | Flat Washer 8 mm, Stainless | 8 |
| 250200053 | FLAT WASHER M12 | ||
| 12 | 250200115 | Flat Washer M6 | 12 |
| 279000008 | CENTRAL BELLOWS | ||
| 2 | 279000009 | Lateral Bellows | 2 |
| 1 | 279000010 | Retaining Plate | 1 |
| 2 | 279000011 | Retaining Ring | 2 |
| 4 | 279000019 | Bushing | 4 |
| 279000193 | RUBBER BUMPER | ||
| 279000031 | PIVOT TUBE | ||
| 279000033 | PIVOT TUBE | ||
| 279000000 | FRONT ARM ASS'Y | ||
| 279000038 | PIVOT TUBE | ||
| 279000041 | PIVOT TUBE | ||
| 279000047 | RUBBER BUMPER | ||
| 2 | 279000051 | Bushing | 2 |
| 279000055 | SHOCK LOWER HOLDER | ||
| 1 | 279000057 | Shock Upper Holder | 1 |
| 279000065 | Footrest | ||
| 279000070 | LH SPRING HOLDER | ||
| 279000074 | RH SPRING HOLDER | ||
| 279000080 | REAR ARM MOULDING | ||
| 279000083 | LH REAR BASE | ||
| 279000087 | RH REAR BASE | ||
| 279000089 | LH CLAMP | ||
| 279000092 | RH CLAMP | ||
| 2 | 279000115 | Retaining Ring | 2 |
| 279000100 | RETAINING RING | ||
| 279000114 | RETAINING PLATE | ||
| 279000103 | BUSHING | ||
| 279000104 | O-RING | ||
| 279000105 | BUSHING | ||
| 279000106 | CLAMP | ||
| 279000001 | REAR ARM ASS'Y | ||
| 279000157 | SPRING ALIGNMENT ARM | ||
| 279000137 | BUSHING | ||
| 279000138 | SPACER | ||
| 279000155 | BRACKET | ||
| 279000153 | SPACER | ||
| 8 | 279000164 | Flat Washer | 8 |
| 279000167 | FRONT ARM BASE | ||
| 1 | 291002351 | Hook | 1 |
| 1 | 291001386 | Black, Finition Plate | 1 |
| 1 | 292000933 | U-Clamp | 1 |
| 6 | 293150005 | Pop Rivet 3/16" | 6 |
| 10 | 293150123 | Pop Rivet 3/16" | 10 |
| 24 | 293150176 | Pop Rivet 3/16" | 24 |
| 2 | 293650199 | Oetiker Gear Clamp | 2 |
| 1 | 293730040 | Mount Dart | 1 |
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
| 1 | 708200118 | Retaining Cable | 1 |
| 3 | 207361260 | Hex. Screw M6 X 12, Scotch Grip | 3 |
| 4 | 207364560 | Hex. Screw M6 x 45, Scotch Grip | 4 |
| 279000182 | LOWER SPRING PROTECTOR | ||
| 1 | 279000183 | Upper Spring Protector | 1 |
| 279000206 | E-COAT SPACER | ||
| 279000188 | LOWER SPRING PROTECTOR | ||
| 1 | 279000189 | Upper Spring Holder | 1 |
| 279000191 | UPPER SPRING HOLDER | ||
| 1 | 279000198 | Retaining Ring | 1 |
| 279000205 | PLUNGER | ||
| 279000219 | PAINTED SPRING | ||
| 1 | 293750053 | Tie Rap 300mm | 1 |
| 279000213 | Grommet | ||
| 1 | 293750002 | Tie Wrap 142 mm | 1 |
| 1 | 279000126 | Shock Absorber | 1 |
| 1 | 219704368 | Seal Tray 1000Mm Long | 1 |
