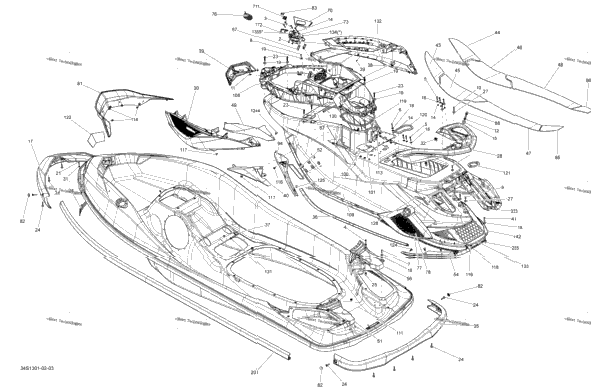

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 205364060 | SOCKET HEAD SCREW M6 X 40 | ||
| 205364560 | SOCKET SCREW HEAD M6 X 45 | ||
| 16 | 205463560 | Socket Head Screw M6 X 35 | 16 |
| 6 | 207063060 | Hex. Screw M6 X 30 | 6 |
| 8 | 207162560 | Hex. Screw M6 X 25 | 8 |
| 2 | 207361660 | Hex. Screw M6 X 16, Scotch Grip | 2 |
| 7 | 207362060 | Hex. Screw M6 X 20, Scotch Grip | 7 |
| 2 | 207363560 | Screw Hex. M6 X 35, Scotch Grip | 2 |
| 211000106 | HEX. FORMING SCREW M6 X 16 | ||
| 1 | 232100600 | Hex. Jam Nut M10 | 1 |
| 1 | 232561200 | Elastic Stop Nut M6, Brass | 1 |
| 1 | 234002600 | Flat Washer 10 mm, Stainless | 1 |
| 1 | 291003836 | Front Bumper | 1 |
| 36 | 234062600 | Flat Washer M6, Stainless | 36 |
| 8 | 234082600 | Flat Washer 8 mm, Stainless | 8 |
| 291003872 | Lateral Bumper | ||
| 9 | 241142560 | Hex. Flange Screw K40 X 25 | 9 |
| 6 | 241731260 | Oval Philipp Screw KA30 x 12 | 6 |
| 10 | 243163560 | Plastite Hex. Screw M6.8 X 35 | 10 |
| 11 | 250000399 | Hexagonal Cap Screw M6 X35 | 11 |
| 16 | 250100150 | Expansion Nut M6 X 1 | 16 |
| 9 | 250200022 | Flat Washer M6.6 X 22 | 9 |
| 1 | 291004621 | Black, Rear Handle | 1 |
| 269501797 | FRONT GRID | ||
| 291003505 | LH Front Moulding Ass'y GTX S | ||
| 9 | 234042600 | Flat Washer 4 mm, Stainless | 9 |
| 1 | 271001732 | Elastic Nut M10 Housing | 1 |
| 279000214 | REAR PIVOT ASS'Y | ||
| 291002818 | DECK NOSE | ||
| 1 | 291002592 | Rear Bumber | 1 |
| 291003818 | MID JOINT | ||
| 293000112 | Double Cap | ||
| 4 | 211100002 | Push Nut | 4 |
| 16 | 241141660 | Hex. Flange Screw K40 X 16 | 16 |
| XXX | Not Available As Spare Parts Except GTX iS LTD | ||
| XXX | Not Available As Spare Parts GTX iS LTD | ||
| 291002607 | ANTI SLIP MAT FL | ||
| 1 | 291002608 | RH Front Carpet | 1 |
| 291003463 | LH CENTER FRONT CARPET | ||
| 291003464 | RH CENTER FRONT CARPET | ||
| 291003465 | LH CENTER REAR CARPET | ||
| 291003466 | RH CENTER REAR CARPET | ||
| 291003515 | LH UPPER BODY CAP COVER GTX S | ||
| 291003516 | RH UPPER BODY CAP COVER GTX S | ||
| 1 | 291002658 | LH Rear Grille | 1 |
| 291002694 | LH FOOTREST COVER | ||
| 291002695 | RH FOOTREST COVER | ||
| 291002696 | LH REAR SCRAPER JOINT | ||
| 291002697 | RH REAR SCRAPER JOINT | ||
| 291002698 | RH REAR GRILL | ||
| 291002755 | DOUBLE CAGE NUT ASS'Y | ||
| 291002756 | FRONT REWINDER CAP Except GTX iS | ||
| 291002726 | BUTTON | ||
| 291002727 | UNDER CAM | ||
| 291002729 | ROPE GUIDE | ||
| 219704363 | ROPE 3/16 3000MM LONG | ||
| 291002739 | LH LATERAL REAR TRIM | ||
| 1 | 291002741 | RH Lateral Rear Trim | 1 |
| 1 | 291002740 | LH Rear Side Grille | 1 |
| 1 | 291002742 | RH Rear Side Grille | 1 |
| 1 | 291003081 | Body Deflector | 1 |
| 4 | 291002744 | Bumber Cap | 4 |
| 1 | 291002754 | Button Cap | 1 |
| 291002762 | INSIDE COVER | ||
| 291002775 | ANTI SLIP MAT REAR L | ||
| 291002776 | ANTI SLIP MAT REAR R | ||
| 1 | 291002778 | Module Stifner | 1 |
| 1 | 291002784 | Seat Stud | 1 |
| 1 | 291002837 | LH Front Scraper Joint | 1 |
| 291002838 | RH FRONT SCRAPER JOINT | ||
| 291002865 | SEAT PIVOT | ||
| 291003416 | UPPER REINFORCEMENT GTX S | ||
| 291003306 | LOWER CENTRAL REINFORCEMENT | ||
| 1 | 291003680 | Front Module | 1 |
| 1 | 291003462 | Upper Body Ass'y | 1 |
| 2 | 293000014 | Black, Snap Cap | 2 |
| 4 | 293150186 | Pop Rivet 3/16 | 4 |
| 1 | 293150123 | Pop Rivet 3/16" | 1 |
| 1 | 293250185 | Lip Seal | 1 |
| 293250200 | NEOPRENE SEAL | ||
| 293250205 | LIP SEAL | ||
| 293250209 | LIP SEAL | ||
| 293250231 | GASKET | ||
| 10 | 293730006 | Black, Dart | 10 |
| 2 | 293730010 | Black Dart | 2 |
| 3 | 293830005 | Rubber Bumper | 3 |
| 2 | 219704372 | Was 293250087 Gasket | 2 |
| 1 | 219704353 | Was 271000110 Protection Trim | 1 |
| 1 | 572051500 | Cap | 1 |
| 291003502 | RH FRONT MOULDING ASS'Y GTX S | ||
| 291002763 | DECK EXTENSION ASS'Y | ||
| 1 | 291003022 | Retractable Rope Ass'y | 1 |
| 291003023 | JAM CLEAT SYSTEM ASS'Y |
