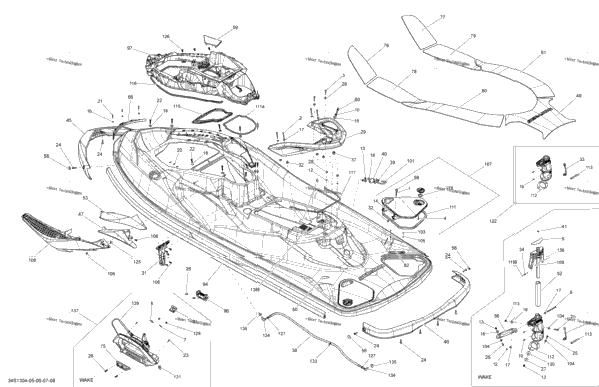

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 4 | 205063060 | Socket Head Screw M6 X 30 | 4 |
| 4 | 207065560 | Hex. Screw M6 x 55 | 4 |
| 2 | 207164060 | Hex. Screw M6 X 40 | 2 |
| 2 | 211000023 | Hex. Screw 10-14 X 7/8” | 2 |
| 1 | 219903137 | Warning Label | 1 |
| 219903184 | CAUTION ENGINE OIL | ||
| XXX | Not Available As Spare Parts | ||
| 1 | 230060060 | Hex. Screw M6 X 100 | 1 |
| 1 | 232100600 | Hex. Jam Nut M10 | 1 |
| 1 | 232561200 | Elastic Stop Nut M6, Brass | 1 |
| 1 | 232581200 | Hex. Elastic Nut M8 Brass | 1 |
| 4 | 233161600 | Hex. Flange Nut M6 | 4 |
| 1 | 234002600 | Flat Washer 10 mm, Stainless | 1 |
| 3 | 234042600 | Flat Washer 4 mm, Stainless | 3 |
| 6 | 234062600 | Flat Washer M6, Stainless | 6 |
| 1 | 234082600 | Flat Washer 8 mm, Stainless | 1 |
| 4 | 241141360 | Hex. Flange Screw K40 X 13 | 4 |
| 1 | 241141660 | Hex. Flange Screw K40 X 16 | 1 |
| 3 | 241142560 | Hex. Flange Screw K40 X 25 | 3 |
| 8 | 243163560 | Plastite Hex. Screw M6.8 X 35 | 8 |
| 11 | 250000287 | Flange Torx Screw K40 X 16 | 11 |
| 11 | 250000399 | Hexagonal Cap Screw M6 X35 | 11 |
| 6 | 250000452 | Torx Screw M8 X 40, Stainless | 6 |
| 4 | 250000466 | Torx Screw Plastite M6 | 4 |
| 2 | 250200011 | Flat Washer 8 mm, Stainless | 2 |
| 4 | 250200022 | Flat Washer M6.6 X 22 | 4 |
| 1 | 291004622 | Black Rear Handle | 1 |
| 1 | 269002162 | Mounting Case Absorber | 1 |
| 6 | 269501166 | Nut Housing Ass'y | 6 |
| 1 | 269501651 | Ball Spring | 1 |
| 1 | 271001732 | Elastic Nut M10 Housing | 1 |
| 275000267 | Hose 11.6mm - 1100mm | ||
| 1 | 291002351 | Hook | 1 |
| 1 | 291001386 | Black, Finition Plate | 1 |
| 1 | 291001519 | Bumper Plug, Black | 1 |
| 1 | 291003836 | Front Bumper | 1 |
| 1 | 291002592 | Rear Bumber | 1 |
| 291003192 | RH Seat Pad, Black | ||
| 291003193 | LH Seat Pad, Black | ||
| 1 | 291002625 | Rear Plat-Form Carpet | 1 |
| 1 | 291002626 | LH Nonskid | 1 |
| 291003515 | LH UPPER BODY CAP COVER RXT, GTX | ||
| 291003516 | RH UPPER BODY CAP COVER RXT, GTX | ||
| 4 | 291002744 | Bumber Cap | 4 |
| 291002756 | FRONT REWINDER CAP | ||
| 1 | 291002784 | Seat Stud | 1 |
| 291002818 | DECK NOSE | ||
| XXX | Not Available As Spare Parts WAKE | ||
| 1 | 291003580 | LH Front Carpet RXT, GTX, RXT-X | 1 |
| 291003581 | ANTI SLIP MAT FR RXT, GTX, RXT-X | ||
| 1 | 291003458 | LH Center Carpet RXT, GTX, RXT-X | 1 |
| 291003459 | RH CENTER CARPET RXT, GTX, RXT-X | ||
| 1 | 291003460 | LH Rear Carpet RXT, GTX, RXT-X | 1 |
| 1 | 291003461 | RH Rear Carpet RXT, GTX, RXT-X | 1 |
| 291002937 | RH NONSKID | ||
| 1 | 291002980 | Latch | 1 |
| 291003872 | Lateral Bumper | ||
| 1 | 291003582 | Upper Anchorage | 1 |
| 1 | 291003680 | Front Module | 1 |
| 2 | 291003688 | Rubber Bumper | 2 |
| 1 | 292000933 | U-Clamp | 1 |
| 2 | 293000014 | Black, Snap Cap | 2 |
| 6 | 293050001 | Flat Washer M8.5 x 18 | 6 |
| 2 | 293150016 | Rivet 1/8" | 2 |
| 11 | 293150123 | Pop Rivet 3/16" | 11 |
| 1 | 291003686 | LH Access Cover | 1 |
| 291003687 | RH ACCESS COVER | ||
| 291003509 | RH FRONT COVER ASS'Y RXT | ||
| 291003512 | LH FRONT COVER ASS'Y RXT | ||
| 1 | 219704367 | Was 293200133 Neoprene Seal | 1 |
| 293250200 | NEOPRENE SEAL | ||
| 293250220 | Seal | ||
| 296000342 | SEAL | ||
| 1 | 219704378 | Gasket 3000Mm Long | 1 |
| 2 | 293300121 | O-Ring | 2 |
| 2 | 293350062 | Ball 1/4" | 2 |
| 4 | 293730006 | Black, Dart | 4 |
| 3 | 293730010 | Black Dart | 3 |
| 2 | 293750001 | Tie Wrap 94 mm | 2 |
| 2 | 293830005 | Rubber Bumper | 2 |
| 2 | 293830037 | Rubber Washer | 2 |
| 2 | 293830119 | Rubber Buffer | 2 |
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
| 2 | 414523600 | Elbow Fitting | 2 |
| 2 | 513033435 | Grommet | 2 |
| 291002947 | LOWER DECK ASS'Y |
