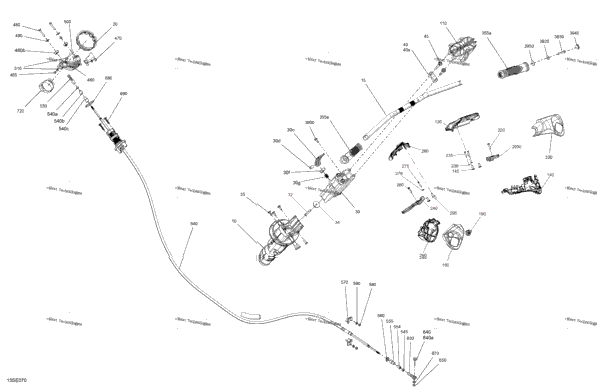

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 277002263 | Steering Column | 1 |
| 1 | 277002204 | Dazzling Blue, Handlebar | 1 |
| 1 | 277001874 | Wear Ring | 1 |
| 1 | 277002253 | Handlebar Rise Block Adjust Ass'y Includes 30 to 30g | 1 |
| 1 | 277002094 | Anodized Lock Lever | 1 |
| 1 | 506153052 | Lever Pin | 1 |
| 1 | 506153045 | Compression Bloc | 1 |
| 1 | 506152820 | Spring | 1 |
| 1 | 205583060 | Socket Head Screw M8 X 30, Scotch Grip | 1 |
| 1 | 250200188 | Flat Washer M8.4 x 40 | 1 |
| 6 | 250000922 | Torx Truss Screw M6 X 16 | 6 |
| 2 | 506152751 | Steering Support Includes 40 to 40a | 2 |
| 1 | 506152751 | Steering Support | 1 |
| 4 | 250000834 | Hex. Screw Flange DIN.6921 S.Grip | 4 |
| 1 | 277002005 | Deep Black, Steering Pad | 1 |
| 1 | 277002040 | RH Upper Housing | 1 |
| 1 | 277002036 | RH Lower Housing | 1 |
| 2 | 250000922 | Torx Truss Screw M6 X 16 | 2 |
| 1 | 277002314 | LH Cover | 1 |
| 1 | 277002327 | Red Button Switch | 1 |
| 1 | 277002138 | Hand Lever Accelerator | 1 |
| 1 | 250001087 | Flange Screw Plastite #10, 14 X 7/8" | 1 |
| 2 | 241142560 | Hex. Flange Screw K40 X 25 | 2 |
| 2 | 234042600 | Flat Washer 4 mm, Stainless | 2 |
| 1 | 277001945 | Reverse Handle | 1 |
| 1 | 277002041 | LH Upper Housing | 1 |
| 1 | 277002035 | LH Lower Housing | 1 |
| 1 | 277002288 | RH Cover | 1 |
| 2 | 277002286 | Handlebar Grip | 2 |
| 1 | 277002179 | Support Ass'y Includes 460 to 460b | 1 |
| 2 | 269502544 | Nut Housing M6 | 2 |
| 1 | 233261200 | Nut Flange Elastic M6 | 1 |
| 1 | 277001654 | Spacer | 1 |
| 2 | 207163560 | Hex. Screw M6 X 35 | 2 |
| 2 | 234062600 | Flat Washer M6, Stainless | 2 |
| 1 | 207064060 | Hex. Screw M6 X 40 | 1 |
| 1 | 234061600 | Stainless Flat Washer M6 | 1 |
| 1 | 277001180 | Ball Joint | 1 |
| 1 | 277002065 | Steering Cable Includes 540 to 540c | 1 |
| 1 | 211100056 | Hex. Nut 1/4"-28 | 1 |
| 1 | 277001582 | Wiper Rod | 1 |
| 1 | 277001583 | End Piece | 1 |
| 1 | 293830063 | Rubber Washer | 1 |
| 2 | 277001856 | Ring Halves | 2 |
| 2 | 232561200 | Elastic Stop Nut M6, Brass | 2 |
| 2 | 234061600 | Stainless Flat Washer M6 | 2 |
| 1 | 277000775 | Ball Joint | 1 |
| 1 | 250000970 | Hex Sems Screw M6X35 Includes 640 to 640a | 1 |
| 1 | 250000969 | Hex Screw SEMS M6X35, SS | 1 |
| 1 | 232561200 | Elastic Stop Nut M6, Brass | 1 |
| 1 | 293300176 | O-Ring | 1 |
| 2 | 250000879 | Plastite Torx Screw M6.81X30 | 2 |
| 1 | 277002318 | Wear Ring | 1 |
| 1 | 250000922 | Torx Truss Screw M6 X 16 | 1 |
| 2 | 250000002 | Hex. Screw M6 X 30, Scotch Grip | 2 |
| 2 | 277000203 | Black, Cap | 2 |
| 2 | 277001863 | Insert Grip Handle | 2 |
