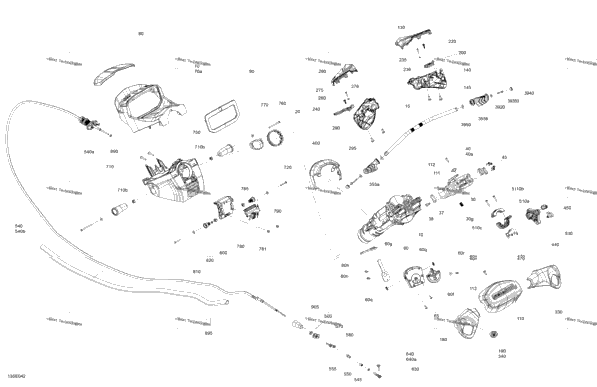

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 277002298 | Steering Column | 1 |
| 1 | 277002175 | Neon Yellow, Handlebar | 1 |
| 1 | 277001874 | Wear Ring | 1 |
| 1 | 277002376 | Handlebar Adjust Ass'y Includes 30 to 30g | 1 |
| 1 | 506152820 | Spring | 1 |
| 2 | 277002313 | Plate | 2 |
| 4 | 205583060 | Socket Head Screw M8 X 30, Scotch Grip | 4 |
| 2 | 506152751 | Steering Support Includes 40 to 40a | 2 |
| 1 | 506152751 | Steering Support | 1 |
| 4 | 250000834 | Hex. Screw Flange DIN.6921 S.Grip | 4 |
| 1 | 506153422 | Damper Includes 60 to 60r | 1 |
| 1 | 277002226 | Suspension Adjuster | 1 |
| 1 | 277002300 | Central Arm | 1 |
| 1 | 277002375 | Upper Arm | 1 |
| 10 | 250001237 | Socket Head Screw M4 X 16 | 10 |
| 2 | 250200114 | Sealing Washer | 2 |
| 1 | 234042600 | Flat Washer 4 mm, Stainless | 1 |
| 2 | 250000922 | Torx Truss Screw M6 X 16 | 2 |
| 1 | 277002417 | Gauge Support Includes 70 to 70a | 1 |
| 1 | 277002198 | Gauge Support | 1 |
| 1 | 277002160 | Cluster Cover | 1 |
| 1 | 705015381 | Speed Gauge Trim | 1 |
| 1 | 277002330 | Deep Black / Lava Grey, Steering Pad | 1 |
| 1 | 277002377 | Steering Pad Spacer | 1 |
| 1 | 250001116 | Screw-Torx Truss Cone Head M6X25 | 1 |
| 1 | 277002040 | RH Upper Housing | 1 |
| 1 | 277002036 | RH Lower Housing | 1 |
| 1 | 277002314 | LH Cover | 1 |
| 1 | 277002327 | Red Button Switch | 1 |
| 1 | 277002138 | Hand Lever Accelerator | 1 |
| 1 | 250001087 | Flange Screw Plastite #10, 14 X 7/8" | 1 |
| 2 | 241142560 | Hex. Flange Screw K40 X 25 | 2 |
| 2 | 234042600 | Flat Washer 4 mm, Stainless | 2 |
| 1 | 277001945 | Reverse Handle | 1 |
| 1 | 277002041 | LH Upper Housing | 1 |
| 1 | 277002035 | LH Lower Housing | 1 |
| 1 | 277002316 | RH Cover | 1 |
| 1 | 277002320 | Button Switch | 1 |
| 1 | 277001958 | Deep Black, LH Handle Grip | 1 |
| 1 | 277001946 | Deep Black, RH Handle Grip | 1 |
| 1 | 277002296 | Steering Column Trim | 1 |
| 1 | 295501183 | Steering Arm Kit | 1 |
| 1 | 277001654 | Spacer | 1 |
| 1 | 277001987 | Arm | 1 |
| 2 | 250000399 | Hexagonal Cap Screw M6 X35 | 2 |
| 1 | 277002085 | C Clamp | 1 |
| 1 | 277002119 | End Fitting Cable | 1 |
| 1 | 277001989 | Steering Cable Includes 540 to 540b | 1 |
| 1 | 211100056 | Hex. Nut 1/4"-28 | 1 |
| 1 | 277001582 | Wiper Rod | 1 |
| 1 | 277001583 | End Piece | 1 |
| 1 | 293830063 | Rubber Washer | 1 |
| 2 | 277001856 | Ring Halves | 2 |
| 1 | 277000775 | Ball Joint | 1 |
| 1 | 250000970 | Hex Sems Screw M6X35 Includes 640 to 640a | 1 |
| 1 | 250000969 | Hex Screw SEMS M6X35, SS | 1 |
| 1 | 277002307 | Steering Column Support Ass'y Includes 710 to 710b | 1 |
| 2 | 269502544 | Nut Housing M6 | 2 |
| 1 | 277002318 | Wear Ring | 1 |
| 2 | 277001605 | Steering Support Pivot | 2 |
| 2 | 207168060 | Hex Screw M6 X 80 | 2 |
| 2 | 234062600 | Flat Washer M6, Stainless | 2 |
| 1 | 277001996 | Adjustment Handle | 1 |
| 2 | 293830005 | Rubber Bumper | 2 |
| 1 | 277002010 | Lock | 1 |
| 2 | 277001652 | Pivot | 2 |
| 2 | 207064060 | Hex. Screw M6 X 40 | 2 |
| 1 | 276000520 | Sheath Corrugated 22MM - 1250MM | 1 |
| 1 | 277002150 | Rope Guide | 1 |
| 2 | 250000002 | Hex. Screw M6 X 30, Scotch Grip | 2 |
| 2 | 277000203 | Black, Cap | 2 |
| 2 | 277001863 | Insert Grip Handle | 2 |
