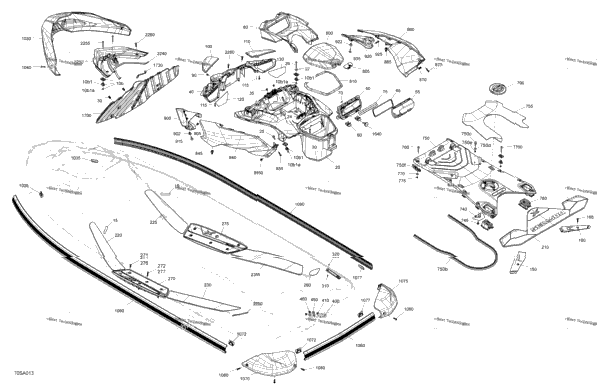

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 17 | 291004813 | Housing Nut M6 Includes 10b to 10b1a | 17 |
| 1 | 291004662 | Housing Nut Overmolded Includes 10b1 to 10b1a | 1 |
| 1 | 232561200 | Elastic Stop Nut M6, Brass | 1 |
| 2 | 291005381 | Decal | 2 |
| 1 | 291005315 | Console | 1 |
| 1 | 291004718 | Deep Black, Console Cap | 1 |
| 2 | 250000969 | Hex Screw SEMS M6X35, SS | 2 |
| 2 | 207165060 | Hex. Screw M6 X 50 | 2 |
| 2 | 250200022 | Flat Washer M6.6 X 22 | 2 |
| 3 | 250000828 | Screw Torx M6.81 X 30 | 3 |
| 2 | 293830005 | Rubber Bumper | 2 |
| 1 | 291005178 | Mirror Support | 1 |
| 1 | 291005122 | Deep Black, Storage Bin | 1 |
| 1 | 264000134 | Watertight Door | 1 |
| 2 | 269501718 | Clip | 2 |
| 1 | 293250412 | Gasket | 1 |
| 1 | 264000137 | Vent Membrane | 1 |
| 1 | 264000135 | Sealed Compartment Foam | 1 |
| 1 | 291005327 | Deep Black, Console Panel | 1 |
| 1 | 269502427 | Deep Black, LH Mirror Cover | 1 |
| 1 | 269502428 | Deep Black, RH Mirror Cover | 1 |
| 2 | 211000023 | Hex. Screw 10-14 X 7/8” | 2 |
| 1 | 269502274 | LH Mirror Glass | 1 |
| 1 | 269502276 | RH Mirror Glass | 1 |
| 1 | 291005127 | LH Spacer | 1 |
| 1 | 291005182 | RH Spacer | 1 |
| 2 | 250001008 | Screw-Pastite Torx Cone HD M6 81 X 30 | 2 |
| 1 | 291005465 | Rear Anti Slip Deck Mat Model Millenium Yellow | 1 |
| 1 | 291005577 | Rear Anti Slip Deck Mat Model Purple Potion | 1 |
| 1 | 291005466 | LH Front Anti SLip Mat Without sound system | 1 |
| 1 | 291005468 | LH Front Anti Slip Mat With standard sound system | 1 |
| 1 | 291005467 | RH Front Anti Slip Mat Without sound system | 1 |
| 1 | 291005469 | RH Front Anti Slip Mat With standard sound system | 1 |
| 1 | 291005470 | LH Rear Anti Slip Mat | 1 |
| 1 | 291005471 | RH Rear Anti Slip Mat | 1 |
| 1 | 291005325 | LH Rear Anti Slip Mar Footrest | 1 |
| 1 | 291005326 | RH Rear Anti Slip Mar Footrest | 1 |
| 1 | 291005608 | LH Footrest Ass'y | 1 |
| 1 | 250001171 | Plastite Torx Screw Cone HD.M6.81X2 | 1 |
| 5 | 250001008 | Screw-Pastite Torx Cone HD M6 81 X 30 | 5 |
| 1 | 291005609 | RH Footrest Ass'y | 1 |
| 2 | 293150016 | Rivet 1/8" | 2 |
| 2 | 293000014 | Black, Snap Cap | 2 |
| 1 | 292000933 | U-Clamp | 1 |
| 2 | 293050001 | Flat Washer M8.5 x 18 | 2 |
| 2 | 234082600 | Flat Washer 8 mm, Stainless | 2 |
| 2 | 232581200 | Hex. Elastic Nut M8 Brass | 2 |
| 1 | 291004941 | Hose Protector | 1 |
| 1 | 293730011 | Black, Dart | 1 |
| 1 | 291005189 | Access Cover Ass'y Includes 750 to 750f | 1 |
| 1 | 219704366 | Was 293200062 Seal | 1 |
| 2 | 291005183 | STUD | 2 |
| 2 | 234062600 | Flat Washer M6, Stainless | 2 |
| 2 | 232561200 | Elastic Stop Nut M6, Brass | 2 |
| 2 | 291004717 | Seal | 2 |
| 1 | 291005648 | Deep Black, Rear Mat | 1 |
| 12 | 250000827 | Screw-Torx Truss Cone HD.M6X50 | 12 |
| 2 | 295100858 | Linq Bases Kit | 2 |
| 1 | 291004481 | Access Cap Ass'y | 1 |
| 1 | 291005346 | Deep Black, Glove Box Cover | 1 |
| 1 | 264000091 | Black, Latch | 1 |
| 1 | 293250528 | Gasket | 1 |
| 1 | 291005328 | Iceland Grey, LH Front Body Panel Model Millenium Yellow | 1 |
| 1 | 291005573 | Manta Green, LH Front Body Panel Model Purple Potion | 1 |
| 1 | 293730071 | Dard | 1 |
| 1 | 293150230 | Tuflok Plastic Rivet | 1 |
| 1 | 250000828 | Screw Torx M6.81 X 30 | 1 |
| 1 | 291005329 | Iceland Gray, RH Front Body Panel Model Millenium Yellow | 1 |
| 1 | 291005575 | Manta Green, RH Front Body Panel Model Purple Potion | 1 |
| 1 | 291005330 | LH Front Grille Panel | 1 |
| 1 | 291003793 | Insert | 1 |
| 1 | 250000879 | Plastite Torx Screw M6.81X30 | 1 |
| 1 | 250000978 | Hexagonal Cap Screw M6 X 25 | 1 |
| 1 | 291005331 | RH Front Grille Panel | 1 |
| 1 | 291005082 | Bumper Front | 1 |
| 2 | 291005701 | Plastite Housing | 2 |
| 4 | 250000828 | Screw Torx M6.81 X 30 | 4 |
| 291005510 | Lateral Bumper | ||
| 1 | 291005083 | LH Rear Bumper Corner | 1 |
| 1 | 291005084 | RH Rear Bumper Corner | 1 |
| 6 | 250000828 | Screw Torx M6.81 X 30 | 6 |
| 1 | 269502324 | USB Plug | 1 |
| 1 | 291005587 | Separation Panel Ass'y | 1 |
| 1 | 269502111 | Holding Strap | 1 |
| 1 | 219704372 | Was 293250087 Gasket | 1 |
| 1 | 291005108 | Body Deflector | 1 |
| 2 | 250000827 | Screw-Torx Truss Cone HD.M6X50 | 2 |
