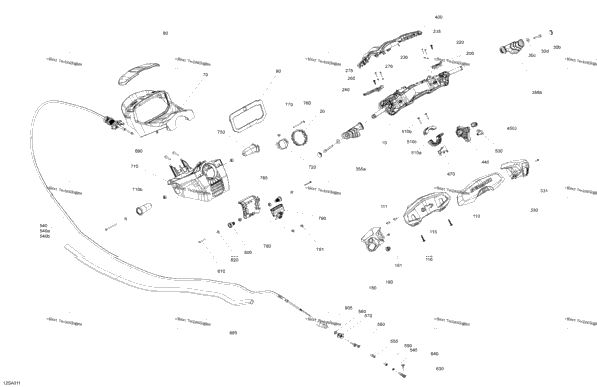

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 277002134 | Steering Column | 1 |
| 1 | 277001874 | Wear Ring | 1 |
| 2 | 277000203 | Black, Cap | 2 |
| 2 | 234062600 | Flat Washer M6, Stainless | 2 |
| 2 | 207364560 | Hex. Screw M6 x 45, Scotch Grip | 2 |
| 1 | 277001980 | Cluster Support Built Before Oct 2020 | 1 |
| 1 | 277002157 | Gauge Support Built Oct 2020 and up | 1 |
| 1 | 277001981 | Deep Black, Cluster Support Cover Built Before Oct 2020 | 1 |
| 1 | 277002160 | Cluster Cover Built Oct 2020 and up | 1 |
| 1 | 705011286 | Speed Indicator Bezel Built Before Oct 2020 | 1 |
| 1 | 705015381 | Speed Gauge Trim Built Oct 2020 and up | 1 |
| 1 | 705012349 | Deep Black, LH Trim Gauge Built Before Oct 2020 | 1 |
| 1 | 705012351 | Deep Black, RH Trim Gauge Built Before Oct 2020 | 1 |
| 1 | 277002025 | Deep Black, Steering Pad | 1 |
| 2 | 211000023 | Hex. Screw 10-14 X 7/8” | 2 |
| 1 | 277002034 | Dragon Red, Steering Pad Support | 1 |
| 2 | 250000828 | Screw Torx M6.81 X 30 | 2 |
| 1 | 277001983 | Deep Black, LH Housing Cover | 1 |
| 1 | 211000023 | Hex. Screw 10-14 X 7/8” | 1 |
| 1 | 277002052 | Stop/Start Button | 1 |
| 1 | 277002138 | Hand Lever Accelerator | 1 |
| 1 | 250001087 | Flange Screw Plastite #10, 14 X 7/8" | 1 |
| 2 | 241142560 | Hex. Flange Screw K40 X 25 | 2 |
| 2 | 234042600 | Flat Washer 4 mm, Stainless | 2 |
| 1 | 277001945 | Reverse Handle | 1 |
| 1 | 277002067 | RH Housing Cover | 1 |
| 1 | 277001958 | Deep Black, LH Handle Grip | 1 |
| 1 | 277001946 | Deep Black, RH Handle Grip | 1 |
| 1 | 277001985 | Steering Cover | 1 |
| 1 | 295501183 | Steering Arm Kit Included 440 to 450 | 1 |
| XXXX | Not Available As Spare Part - Arm Steering Kit | ||
| 1 | 277001654 | Spacer | 1 |
| 1 | 295501183 | Steering Arm Kit | 1 |
| 2 | 250000399 | Hexagonal Cap Screw M6 X35 | 2 |
| 1 | 277002085 | C Clamp | 1 |
| 1 | 277002119 | End Fitting Cable | 1 |
| 1 | 277001989 | Steering Cable Included 540 to 540b | 1 |
| 1 | 211100056 | Hex. Nut 1/4"-28 | 1 |
| 1 | 277001582 | Wiper Rod | 1 |
| 1 | 277001583 | End Piece | 1 |
| 1 | 293830063 | Rubber Washer | 1 |
| 2 | 277001856 | Ring Halves | 2 |
| 1 | 277000775 | Ball Joint | 1 |
| 1 | 250000970 | Hex Sems Screw M6X35 | 1 |
| 1 | 277001993 | Steering Support Ass'y Built Before Oct 2020 | 1 |
| 1 | 277002158 | Steering Column Support Ass'y Built Oct 2020 and up | 1 |
| 2 | 269502408 | Housing Nut M6 | 2 |
| 1 | 277001741 | Wear Ring | 1 |
| 2 | 277001605 | Steering Support Pivot | 2 |
| 2 | 207168060 | Hex Screw M6 X 80 | 2 |
| 1 | 277001996 | Adjustment Handle | 1 |
| 2 | 293830005 | Rubber Bumper | 2 |
| 1 | 277002010 | Lock | 1 |
| 2 | 277001652 | Pivot | 2 |
| 2 | 207064060 | Hex. Screw M6 X 40 | 2 |
| 1 | 276000520 | Sheath Corrugated 22MM - 1250MM | 1 |
| 1 | 277002150 | Rope Guide | 1 |
