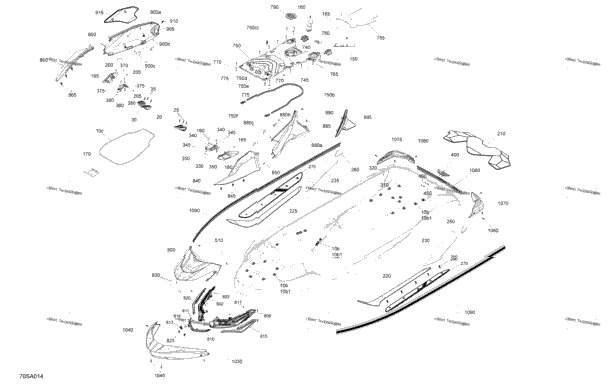

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 291004813 | Housing Nut M6 Includes 10b to 10b1a | 1 |
| 1 | 291004662 | Housing Nut Overmolded Includes 10b1 to 10b1a | 1 |
| 1 | 232561200 | Elastic Stop Nut M6, Brass | 1 |
| 1 | 293250401 | Gasket | 1 |
| 1 | 291004714 | LH Support | 1 |
| 3 | 250001008 | Screw-Pastite Torx Cone HD M6 81 X 30 | 3 |
| 1 | 291004715 | RH Support | 1 |
| 1 | 291005176 | LH Shim | 1 |
| 1 | 291005177 | RH Shim | 1 |
| 2 | 250001008 | Screw-Pastite Torx Cone HD M6 81 X 30 | 2 |
| 1 | 293250451 | Gasket | 1 |
| 1 | 291004661 | LH Shell Cleat | 1 |
| 1 | 293730011 | Black, Dart | 1 |
| 2 | 211000023 | Hex. Screw 10-14 X 7/8” | 2 |
| 1 | 291004719 | RH Shell Cleat | 1 |
| 1 | 291005077 | Rear Plat-Form Carpet | 1 |
| 1 | 291005649 | Rear Plat-Form Carpet | 1 |
| 1 | 291005349 | LH Front Anti Slip Mat | 1 |
| 1 | 291005348 | RH Front Anti Slip Mat | 1 |
| 1 | 291005353 | LH Rear Anti Slip Mat | 1 |
| 1 | 291005352 | RH Rear Anti Slip Mat | 1 |
| 1 | 291004516 | LH Anti-Skid Pad | 1 |
| 1 | 291004517 | RH Anti-Skid Pad | 1 |
| 1 | 291004470 | Deep Black, LH Footrest Ass'y | 1 |
| 1 | 291004469 | Deep Black, RH Footrest Ass'y | 1 |
| 5 | 250001008 | Screw-Pastite Torx Cone HD M6 81 X 30 | 5 |
| 2 | 293150016 | Rivet 1/8" | 2 |
| 2 | 293000014 | Black, Snap Cap | 2 |
| 1 | 291004559 | LH Cleat | 1 |
| 2 | 207083560 | Hex. Screw M8 X 35 | 2 |
| 4 | 234081600 | Stainless, Flat Washer 8 mm | 4 |
| 2 | 232581200 | Hex. Elastic Nut M8 Brass | 2 |
| 1 | 291004720 | RH Cleat | 1 |
| 1 | 291004597 | Cleat | 1 |
| 2 | 234082600 | Flat Washer 8 mm, Stainless | 2 |
| 1 | 291005579 | Deep Black, Hood | 1 |
| 2 | 250001087 | Flange Screw Plastite #10, 14 X 7/8" | 2 |
| 1 | 291004941 | Hose Protector | 1 |
| 1 | 291005189 | Access Cover Ass'y Includes 750 to 750f | 1 |
| 1 | 219704366 | Was 293200062 Seal | 1 |
| 2 | 291005183 | STUD | 2 |
| 2 | 234062600 | Flat Washer M6, Stainless | 2 |
| 2 | 232561200 | Elastic Stop Nut M6, Brass | 2 |
| 2 | 291004717 | Seal | 2 |
| 1 | 291004633 | Black/Grey, Mat Cover | 1 |
| 13 | 250000827 | Screw-Torx Truss Cone HD.M6X50 | 13 |
| 2 | 295100858 | Linq Bases Kit | 2 |
| 1 | 291004481 | Access Cap Ass'y | 1 |
| 1 | 291004942 | LH Grille Hood Ass'y Includes 800 to 800a | 1 |
| 1 | 291004943 | RH Grille Hood Ass'y Includes 802 to 802a | 1 |
| 1 | 291004550 | Black, Trim Front | 1 |
| 3 | 211100002 | Push Nut | 3 |
| 1 | 291004770 | Emblem X | 1 |
| 1 | 211100002 | Push Nut | 1 |
| 1 | 291005543 | Millenium Yellow, LH Trim | 1 |
| 1 | 291005545 | Manta Green, LH Trim | 1 |
| 5 | 211100002 | Push Nut | 5 |
| 1 | 291005544 | Millenium Yellow, RH Trim | 1 |
| 1 | 291005546 | Manta Green, RH Trim | 1 |
| 2 | 293730071 | Dard | 2 |
| 4 | 211000023 | Hex. Screw 10-14 X 7/8” | 4 |
| 1 | 291004676 | Iceland Grey, LH Front Body Panel | 1 |
| 3 | 293730071 | Dard | 3 |
| 1 | 291004775 | Iceland Grey, RH Front Body Panel | 1 |
| 1 | 291004781 | Iceland Grey, LH Central Body Panel Drilled | 1 |
| 1 | 291004556 | Iceland Grey, LH Central Body Panel Not shown | 1 |
| 2 | 293830005 | Rubber Bumper | 2 |
| 3 | 278003860 | Stopper | 3 |
| 1 | 250000828 | Screw Torx M6.81 X 30 | 1 |
| 1 | 293150230 | Tuflok Plastic Rivet | 1 |
| 1 | 291005488 | Millenium Yellow, LH Knee Pad Ass'y | 1 |
| 1 | 291005487 | Purple Potion, LH Knee Pad Ass'y | 1 |
| 1 | 291004784 | Iceland Gray, RH Central Body Panel | 1 |
| 1 | 291004558 | Iceland Grey, RH Central Body Panel Not shown | 1 |
| 1 | 291005489 | Millenium Yellow, RH Knee Pad Ass'y | 1 |
| 1 | 291005486 | Purple Potion, RH Knee Pad Ass'y | 1 |
| 1 | 291004452 | Front Bumper | 1 |
| 4 | 250000828 | Screw Torx M6.81 X 30 | 4 |
| 291004468 | Bumper 2775±25mm | ||
| 1 | 291004465 | LH Rear Bumper | 1 |
| 1 | 291004466 | RH Rear Bumper | 1 |
| 6 | 250000828 | Screw Torx M6.81 X 30 | 6 |
