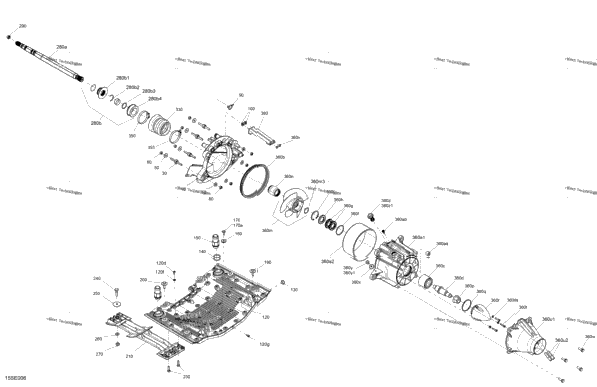

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 271001976 | Pump Support | 1 |
| 2 | 272000053 | Shim 0.3 mm Not Shown | 2 |
| 4 | 250300046 | Square Stud | 4 |
| 4 | 279000336 | Flat Washer | 4 |
| 4 | 232581200 | Hex. Elastic Nut M8 Brass | 4 |
| 4 | 293050001 | Flat Washer M8.5 x 18 | 4 |
| 1 | 271002033 | Gasket | 1 |
| 2 | 293250084 | Watertight Seal | 2 |
| 1 | 271002336 | Ride Plate Ass'y Includes 120 to 120g | 1 |
| 1 | 250000384 | Torx Screw M6 X 14 | 1 |
| 1 | 250200114 | Sealing Washer | 1 |
| 1 | 250500005 | Socket Drain Plug M6 X 12 | 1 |
| 2 | 293900007 | Venturi Bushing | 2 |
| 2 | 293300121 | O-Ring | 2 |
| 2 | 293710124 | Strait Fitting | 2 |
| 1 | 271001920 | Anode Zinc | 1 |
| 1 | 250000965 | Hex Screw M6 X 20 Includes 170 to 170a | 1 |
| 1 | 250000965 | Hex Screw M6 X 20 | 1 |
| 4 | 250000967 | Hex Sems Screw M8 X 30 | 4 |
| 2 | 250001268 | Screw Hex Sems S.Grip M10 X 30 | 2 |
| 1 | 271002159 | Intake Grate - Anodized | 1 |
| 2 | 250000968 | Hex Sems Screw M8 X 25 | 2 |
| 1 | 250001159 | Hexagonal Head Cap Screw M10 X 35 | 1 |
| 1 | 250200194 | Flat Washer | 1 |
| 1 | 250200193 | Washer Flat M10 | 1 |
| 1 | 232501200 | Elastic Stop Nut M10, Brass | 1 |
| 1 | 271002214 | Propeller Shaft | 1 |
| 1 | 295501243 | Rotary Ring Kit Includes 280b to 280b4 | 1 |
| 271002215 | Rotary Ring | ||
| 1 | 271001577 | C-Clip | 1 |
| 2 | 293300220 | O-Ring | 2 |
| 271002109 | Carbon Ring | ||
| 1 | 271002113 | Drive Shaft Plug | 1 |
| 1 | 271002194 | Bellow Ass'y | 1 |
| 1 | 293650279 | Clamp Gear 50-70 MM | 1 |
| 1 | 271002018 | Impeller Housing | 1 |
| 1 | 267000917 | Wear Ring | 1 |
| 1 | 271002395 | Pump Gasket | 1 |
| 1 | 271002182 | Angled Bearing | 1 |
| 1 | 267000388 | Impeller Shaft | 1 |
| 1 | 293300090 | O-Ring | 1 |
| 2 | 271002071 | Seal | 2 |
| 1 | 293200089 | Oil Seal | 1 |
| 1 | 293370038 | Circlip | 1 |
| 1 | 267001110 | Impeller Ass'y Includes 360m to 360m3 | 1 |
| 1 | 293300044 | O-Ring | 1 |
| 1 | 271002228 | Guard | 1 |
| 1 | 250100104 | Elastic Flange Nut M20 | 1 |
| 2 | 293300086 | O-Ring | 2 |
| 1 | 267000428 | Impeller Cover | 1 |
| 3 | 234061600 | Stainless Flat Washer M6 | 3 |
| 3 | 205562560 | Socket Head Screw M6 X 25, Scotch Grip | 3 |
| 1 | 271001999 | Venturi Anodized | 1 |
| 2 | 271002369 | Siphone Tube | 2 |
| 2 | 293300013 | O-Ring | 2 |
| 4 | 250000968 | Hex Sems Screw M8 X 25 | 4 |
| 1 | 250000965 | Hex Screw M6 X 20 Includes 360y to 360y1 | 1 |
| 1 | 267000282 | Plug Includes 360z to 360z1 | 1 |
| 1 | 267000282 | Plug | 1 |
| 1 | 267000469 | Black, Plastic Plug | 1 |
| 2 | 204100269 | Hex. Screw 10-32 X 3/8", Stainless | 2 |
| 1 | 271000785 | Water Outlet | 1 |
