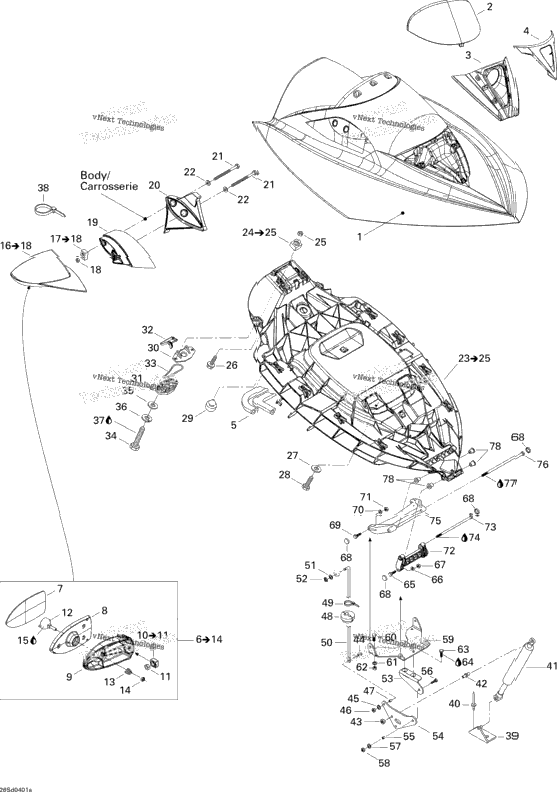

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 269501265 | Upper Luggage Cover, Black | ||
| 269501189 | Deflector | ||
| 269500994 | Lower Grille | ||
| 269500942 | Upper Grille | ||
| 1 | 219704365 | Was 293200017 Neoprene Seal | 1 |
| 269500685 | RH Mirror Ass’Y Includes 6 to 14 | ||
| 269500688 | LH Mirror Ass'y | ||
| 269500687 | RH Mirror | ||
| 269500788 | LH Mirror | ||
| 269500697 | Frame Mirror | ||
| 269500807 | Housing Support | ||
| 1 | 269500813 | Nut Housing Ass’Y Includes 10 to 11 | 1 |
| 1 | 232581600 | Hex. Elastic Nut M8 | 1 |
| 269500079 | MIRROR BALL JOINT | ||
| 1 | 269500453 | Mirror Spring | 1 |
| 1 | 232561600 | Hex. Elastic Stop Nut M6 | 1 |
| 293550010 | Synthetic Grease, 400 G | ||
| 269501072 | Mirror Shell Ass'y, Black Includes 16 to 18 | ||
| 1 | 269500813 | Nut Housing Ass’Y Includes 17 to 18 | 1 |
| 269501076 | RH Mirror Support, Black | ||
| 269501078 | LH Mirror Support, Black | ||
| 269500950 | RH Spacer | ||
| 269500951 | LH Spacer | ||
| 4 | 230082060 | HEX. SCREW M8 X 120 | 4 |
| 4 | 234082600 | Flat Washer 8 mm, Stainless | 4 |
| 269500952 | Lower Storage Cover Ass'y Includes 23 to 25 | ||
| 2 | 269500252 | M6 Nut Housing Ass'y Includes 24 to 25 | 2 |
| 1 | 232061600 | Hex. Nut M6 | 1 |
| 7 | 241141360 | Hex. Flange Screw K40 X 13 | 7 |
| 2 | 234062600 | Flat Washer M6, Stainless | 2 |
| 2 | 207362560 | Hex. Screw M6 X 25, Scotch Grip | 2 |
| 2 | 293830005 | Rubber Bumper | 2 |
| 1 | 269700076 | Latch Cover | 1 |
| 1 | 269000015 | Latch Base | 1 |
| 1 | 269700077 | Latch Lever | 1 |
| 269700017 | Latch Spring | ||
| 2 | 207063060 | Hex. Screw M6 X 30 | 2 |
| 2 | 234061600 | Stainless, Flat Washer M6 | 2 |
| 2 | 234161601 | Lock Washer Helical M6 | 2 |
| 1 | 293800060 | Loctite 243, 10 ml | 1 |
| 2 | 293750008 | Tie Wrap 368 mm INT | 2 |
| 1 | 291001618 | Shock Support | 1 |
| 2 | 293150037 | Avdel Rivet 3/16" | 2 |
| 1 | 269500937 | Gas Shock | 1 |
| 1 | 250300016 | Ball Head Stud | 1 |
| 1 | 207141660 | Hex. Screw M4 X 16 | 1 |
| 1 | 234041600 | Flat Washer 4 mm, Stainless | 1 |
| 1 | 232541600 | Elastic Stop Nut M4 | 1 |
| 1 | 269501130 | SPACER | 1 |
| 1 | 293720070 | CABLE GROMMET | 1 |
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
| 1 | 269500842 | ROD | 1 |
| 1 | 234061600 | Stainless, Flat Washer M6 | 1 |
| 293370005 | CIRCLIP 6 MM | ||
| 1 | 269500846 | SUPPORT LEVER | 1 |
| 269501132 | LEVER | ||
| 269501172 | SPACER | ||
| 1 | 207162060 | Hex. Forming Screw M6 X 20 | 1 |
| 1 | 234062600 | Flat Washer M6, Stainless | 1 |
| 269500934 | Pivot Support | ||
| 2 | 207162060 | Hex. Forming Screw M6 X 20 | 2 |
| 2 | 232561600 | Hex. Elastic Stop Nut M6 | 2 |
| 2 | 211000022 | HEX. SPECIAL SCREW M6 X 25 | 2 |
| 6 | 414436900 | Black Snap Cap | 6 |
| 1 | 269500935 | Front Arm | 1 |
| 1 | 230060060 | Hex. Screw M6 X 100 | 1 |
| 1 | 269501012 | Rear Arm | 1 |
| 1 | 230065060 | Hex. Screw M6 X 150 | 1 |
| 1 | 293800005 | Loctite 271, 10 ml | 1 |
| 4 | 269500706 | Sleeve | 4 |
