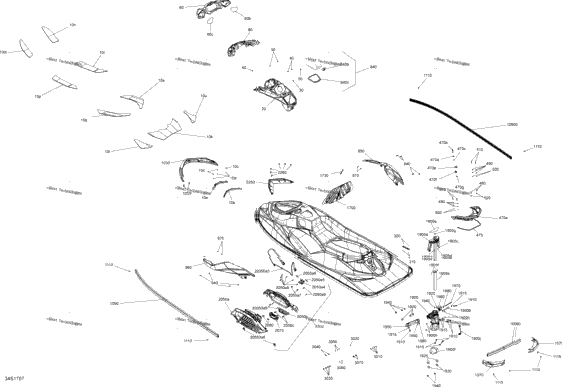

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 291003897 | Deck Nose | 1 |
| 3 | 241142560 | Hex. Flange Screw K40 X 25 | 3 |
| 3 | 234042600 | Flat Washer 4 mm, Stainless | 3 |
| 1 | 291003704 | Bumper Support | 1 |
| 1 | 291003096 | Swim Platform Carpet | 1 |
| 1 | 291003058 | Front Carpet LH | 1 |
| 1 | 291003059 | Front Carpet RH | 1 |
| 1 | 291003060 | Front Center Carpet LH | 1 |
| 1 | 291003329 | Rear Center Carpet LH | 1 |
| 1 | 291003061 | Front Center Carpet RH | 1 |
| 1 | 291003330 | Rear Center Carpet RH | 1 |
| 1 | 291003062 | Rear Carpet LH | 1 |
| 1 | 291003063 | Rear Carpet RH | 1 |
| 1 | 291004276 | Console | 1 |
| 1 | 293830005 | Rubber Bumper | 1 |
| 3 | 293150123 | Pop Rivet 3/16" | 3 |
| 3 | 293150186 | Pop Rivet 3/16 | 3 |
| 1 | 291004264 | Manta Green, Bezel Ass'y Includes 60 to 60c | 1 |
| 1 | 291003090 | Mirror RH, With Double-Face Tape | 1 |
| 1 | 291003091 | Mirror LH, With Double-Face Tape | 1 |
| 1 | 291004271 | Deep Black, Mirror Support | 1 |
| 2 | 293150016 | Rivet 1/8" | 2 |
| 2 | 293000014 | Black, Snap Cap | 2 |
| 1 | 291004627 | Manta Green, Rear Handle Ass'y | 1 |
| 1 | 291003877 | Stud Seat | 1 |
| 1 | 232100600 | Hex. Jam Nut M10 | 1 |
| 1 | 234002600 | Flat Washer 10 mm, Stainless | 1 |
| 1 | 269002125 | Seat Stud Spacer | 1 |
| 269002126 | SEAT STUD SUPPORT | ||
| 1 | 232501200 | Elastic Stop Nut M10, Brass | 1 |
| 1 | 219704378 | Gasket 3000Mm Long | 1 |
| 2 | 207065060 | Hex. Screw M6 X 50 | 2 |
| 8 | 234062600 | Flat Washer M6, Stainless | 8 |
| 4 | 232561200 | Elastic Stop Nut M6, Brass | 4 |
| 4 | 207164060 | Hex. Screw M6 X 40 | 4 |
| 2 | 250200022 | Flat Washer M6.6 X 22 | 2 |
| 1 | 269502140 | Deep Black, Glove Door Ass'y | 1 |
| 1 | 264000091 | Black, Latch | 1 |
| 1 | 293250236 | Gasket | 1 |
| 8 | 293730006 | Black, Dart | 8 |
| 269502169 | TRIM_HOOD RH B-400 | ||
| 269502170 | TRIM_HOOD LH B-400 | ||
| 4 | 211000023 | Hex. Screw 10-14 X 7/8” | 4 |
| 1 | 291004277 | Front Bumper | 1 |
| 2 | 250000399 | Hexagonal Cap Screw M6 X35 | 2 |
| 291004451 | Black, Side Bumper | ||
| 1 | 291004278 | Black, Corner Bumper | 1 |
| 1 | 291004279 | Black, Corner Bumper | 1 |
| 6 | 250000828 | Screw Torx M6.81 X 30 | 6 |
| 1 | 291004572 | Divider Ass'y | 1 |
| 1 | 269502111 | Holding Strap | 1 |
| 1 | 291002553 | Support Sub-Ass'y | 1 |
| 1 | 293250183 | Strap | 1 |
| 1 | 293250151 | Seal | 1 |
| 4 | 241141360 | Hex. Flange Screw K40 X 13 | 4 |
| 1 | 269501299 | Strap | 1 |
| 1 | 291002812 | Molded Handle | 1 |
| 291002642 | ALUMINUM POST | ||
| 1 | 269501651 | Ball Spring | 1 |
| 2 | 293350062 | Ball 1/4" | 2 |
| 1 | 219903137 | Warning Label | 1 |
| 2 | 293150167 | Type "U" Metallic Drive Screw | 2 |
| 1 | 291001519 | Bumper Plug, Black | 1 |
| 6 | 250000452 | Torx Screw M8 X 40, Stainless | 6 |
| 6 | 293050001 | Flat Washer M8.5 x 18 | 6 |
| 4 | 234082600 | Flat Washer 8 mm, Stainless | 4 |
| 2 | 293830037 | Rubber Washer | 2 |
| 2 | 250200011 | Flat Washer 8 mm, Stainless | 2 |
| 6 | 232581200 | Hex. Elastic Nut M8 Brass | 6 |
| 1 | 291002711 | Lateral Arm LH | 1 |
| 1 | 291002712 | Lateral Arm RH | 1 |
| 1 | 230060060 | Hex. Screw M6 X 100 | 1 |
| 2 | 234062600 | Flat Washer M6, Stainless | 2 |
| 1 | 232561200 | Elastic Stop Nut M6, Brass | 1 |
| 1 | 291003101 | Board Support Kit | 1 |
| 1 | 291002979 | Elastic Rope Ass'y | 1 |
| 1 | 291002980 | Latch | 1 |
| 1 | 219903228 | Warning WAKE | 1 |
| 1 | 219903240 | WAKE-PRO Decal | 1 |
| 2 | 293830005 | Rubber Bumper | 2 |
| 2 | 293830119 | Rubber Buffer | 2 |
| 11 | 250000287 | Flange Torx Screw K40 X 16 | 11 |
| 1 | 291002864 | Lower Anchorage | 1 |
| 2 | 250000466 | Torx Screw Plastite M6 | 2 |
| 1 | 291003104 | Upper Anchorage | 1 |
| 1 | 291004273 | Deep Black, Body Deflector | 1 |
| 4 | 250000287 | Flange Torx Screw K40 X 16 | 4 |
| 1 | 250000735 | Torx Screw K40 X 16 | 1 |
| 4 | 293150123 | Pop Rivet 3/16" | 4 |
| 2 | 207153060 | Hex. Flange Screw M5 X 30 | 2 |
| 3 | 211200035 | Flat Washer | 3 |
| 2 | 232551200 | Elastic Stop Nut 5 mm | 2 |
| 2 | 293150089 | Tuflok Plastic Rivet | 2 |
