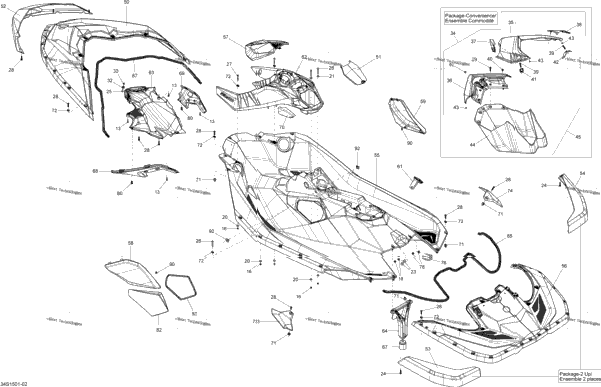

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 4 | 211000023 | Hex. Screw 10-14 X 7/8” | 4 |
| 14 | 232561200 | Elastic Stop Nut M6, Brass | 14 |
| 2 | 232581200 | Hex. Elastic Nut M8 Brass | 2 |
| 14 | 234062600 | Flat Washer M6, Stainless | 14 |
| 2 | 250200150 | Flat Washer M6, Stainless | 2 |
| 2 | 234082600 | Flat Washer 8 mm, Stainless | 2 |
| 8 | 250000709 | Torx Screw M6.81 X 30 Package-2 up | 8 |
| 1 | 250000711 | Torx Screw M6 X 20 | 1 |
| 12 | 250000708 | Screw Torx M6 X 50 | 12 |
| 2 | 250000708 | Screw Torx M6 X 50 | 2 |
| 48 | 250000709 | Torx Screw M6.81 X 30 | 48 |
| 1 | 269501166 | Nut Housing Ass'y Includes 33 | 1 |
| 1 | 232561200 | Elastic Stop Nut M6, Brass | 1 |
| 1 | 295100553 | Front Deflector Kit Package-Convenience, Includes 35 to 43 | 1 |
| XXXX | Not Available As Spare Part - Front Cover Package-Convenience | ||
| XXXX | Not Available As Spare Part - Front Deflector Package-Convenience | ||
| 1 | 269800472 | LH Retaining Strap Package-Convenience | 1 |
| 1 | 269800498 | RH Retaining Strap Package-Convenience | 1 |
| 7 | 250000709 | Torx Screw M6.81 X 30 Package-Convenience | 7 |
| 2 | 293830005 | Rubber Bumper Package-Convenience | 2 |
| 1 | 269800541 | LH Hook Package-Convenience | 1 |
| 1 | 269800542 | RH Hook Package-Convenience | 1 |
| 6 | 269800662 | Rubber Bumper Package-Convenience | 6 |
| XXXX | Not Available As Spare Part - Front Storage Package-Convenience | ||
| 1 | 295100504 | Storage Bin Kit Package-Convenience, Includes 35 to 44 | 1 |
| 291003377 | GREY FRONT DECK Model-Gray-White | ||
| 1 | 291003819 | Yellow Front Deck Model-Yellow-White | 1 |
| 1 | 291003820 | White Front Deck Model-White-White | 1 |
| 291003821 | MAGENTA FRONT DECK Model-Magenta-White | ||
| 1 | 291003822 | Orange Front Deck Model-Orange-White | 1 |
| 1 | 291003378 | Deep Black, Glove Box Cover | 1 |
| 1 | 291003379 | Front Bumper | 1 |
| 1 | 291003380 | LH Rear Bumper Package-2 up | 1 |
| 1 | 291003381 | RH Rear Bumper Package-2 up | 1 |
| 291003382 | Center Body | ||
| 291003383 | GREY REAR DECK Model-Gray-White | ||
| 1 | 291003823 | Yellow Rear Deck Model-Yellow-White | 1 |
| 1 | 291003824 | White Rear Deck Model-White-White | 1 |
| 291003825 | MAGENTA REAR DECK Model-Magenta-White | ||
| 1 | 291003826 | Orange Rear Deck Model-Orange-White | 1 |
| 291003386 | GREY TRIM Model-Gray-White | ||
| 1 | 291003827 | Yellow Trim Model-Yellow-White | 1 |
| 1 | 291003828 | White Trim Model-White-White | 1 |
| 291003829 | MAGENTA TRIM Model-Magenta-White | ||
| 291003830 | ORANGE TRIM Model-Orange-White | ||
| 1 | 291003387 | LH Knee Pads | 1 |
| 1 | 291003388 | RH Knee Pads | 1 |
| 1 | 291003390 | Deep Black, Rear Access Cover | 1 |
| 1 | 291003404 | Console | 1 |
| 1 | 291003439 | Cover | 1 |
| 1 | 291003440 | Rear Support | 1 |
| 1 | 291003694 | Rear Support Mount | 1 |
| 1 | 291003696 | LH Panel Trim | 1 |
| 1 | 291003697 | RH Panel Trim | 1 |
| 1 | 291003702 | Cap | 1 |
| 13 | 291003793 | Insert | 13 |
| 51 | 291003880 | Oval Washer | 51 |
| 1 | 291003883 | Deep Black, LH Rear Panel Trim | 1 |
| 1 | 291003884 | Deep Black, RH Rear Panel Trim | 1 |
| 1 | 292000933 | U-Clamp | 1 |
| 2 | 293050001 | Flat Washer M8.5 x 18 | 2 |
| 2 | 293150089 | Tuflok Plastic Rivet | 2 |
| 1 | 291004155 | Deep Black, Front Access Cover Includes 83 | 1 |
| 1 | 293300121 | O-Ring | 1 |
| 1 | 293250340 | Seal Joint | 1 |
| 1 | 293250341 | Seal Joint | 1 |
| 1 | 293830005 | Rubber Bumper | 1 |
| 2 | 705000321 | Oval Washer | 2 |
