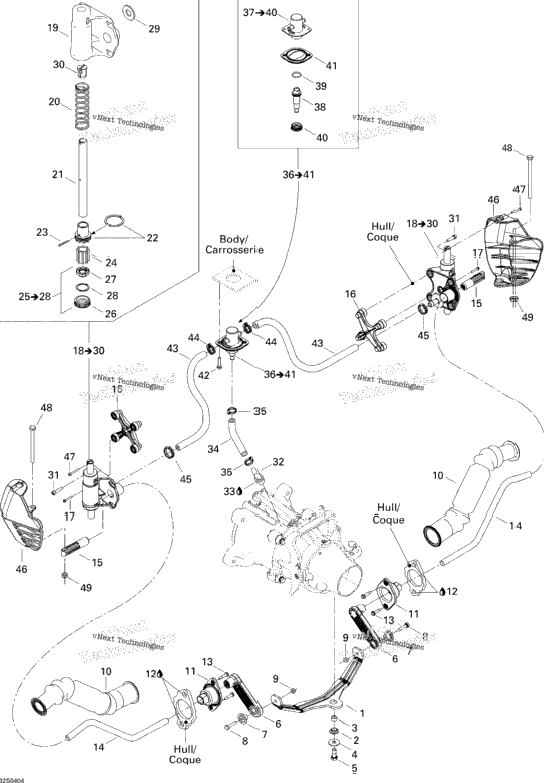

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 277000979 | U LEVER | 1 |
| 1 | 271000321 | Venturi Bushing | 1 |
| 1 | 277000980 | Bushing | 1 |
| 1 | 234082600 | Flat Washer 8 mm, Stainless | 1 |
| 250000150 | Hex. Screw M8 X 20, Scotch Grip | ||
| 2 | 265000013 | LEVER | 2 |
| 2 | 293900042 | FLANGED BUSHING | 2 |
| 2 | 207162560 | Hex. Screw M6 X 25 | 2 |
| 2 | 232561600 | Hex. Elastic Stop Nut M6 | 2 |
| 2 | 277001123 | Seal Tube | 2 |
| 2 | 277001164 | ROD GROMMET | 2 |
| 1 | 296000309 | Silicone Sealant 51388, 300 ml | 1 |
| 4 | 211000023 | Hex. Screw 10-14 X 7/8” | 4 |
| 1 | 277000976 | LH TIE ROD | 1 |
| 1 | 277001063 | RH TIE ROD | 1 |
| 2 | 265000014 | FITTING STABILISATOR | 2 |
| 2 | 277001177 | SUPPORT PLATE ASS'Y | 2 |
| 2 | 241142560 | Hex. Flange Screw K40 X 25 | 2 |
| XXXX | Not Available As Spare Part - Cylinder Support L.H. Ass'y Includes 18 To 30 | ||
| XXXX | Not Available As Spare Part - Cylinder Support R.H. Ass'y Includes 18 To 30 | ||
| 265000016 | LH Cylinder Support | ||
| 265000018 | RH Cylinder Support | ||
| 2 | 277000962 | SPRING | 2 |
| 2 | 277001091 | Pivot Rod | 2 |
| 2 | 277001080 | PISTON ASSY | 2 |
| 2 | 250400014 | Spring Pin | 2 |
| 2 | 277001168 | SPACER | 2 |
| 2 | 265000008 | COVER ASS?Y Includes 25 To 28 | 2 |
| 265000009 | Threaded Cover | ||
| 277000985 | WEAR RING | ||
| 277000986 | Split Ring | ||
| 2 | 293250119 | SEAL | 2 |
| 2 | 277001185 | LOCKING INSERT | 2 |
| 8 | 205562560 | Socket Head Screw M6 X 25, Scotch Grip | 8 |
| 271001298 | ELBOW ASSY | ||
| 1 | 219704455 | Was 293800018 Loctite 592, 50 ml | 1 |
| 276000101 | Formed Hose | ||
| 293650080 | Norma Clamp | ||
| 1 | 277001178 | VALVE ASSY Includes 36 To 41 | 1 |
| 277000999 | Valve Housing Includes 37 To 40 | ||
| XXXX | Not Available As Spare Part - Piston | ||
| 414542700 | O-Ring | ||
| 277000967 | Threaded Cover | ||
| 293250144 | Seal | ||
| 2 | 211000023 | Hex. Screw 10-14 X 7/8” | 2 |
| 1 | 219704394 | Was 276000001 Hose 12.5 mm | 1 |
| 2 | 293650130 | Clamp, Tridon | 2 |
| 2 | 293650123 | OETIKER CLAMP | 2 |
| 1 | 277001143 | LH Side Vane | 1 |
| 1 | 277001144 | RH Side Vane | 1 |
| 2 | 205042560 | Socket Head Screw M4 X 25 | 2 |
| 250000077 | HEX. SCREW M8 X 110 | ||
| 2 | 232581600 | Hex. Elastic Nut M8 | 2 |
