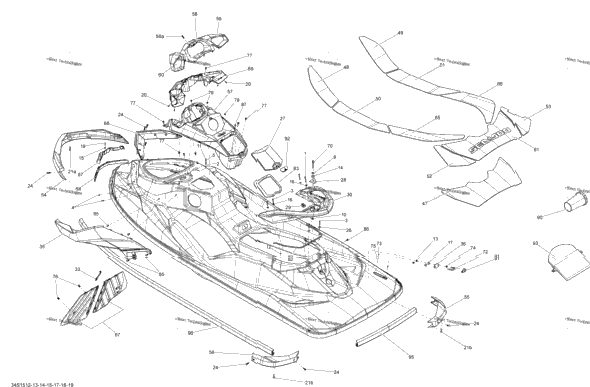

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 2 | 207065560 | Hex. Screw M6 x 55 | 2 |
| 2 | 207153060 | Hex. Flange Screw M5 X 30 | 2 |
| 4 | 207164060 | Hex. Screw M6 X 40 | 4 |
| 4 | 211000023 | Hex. Screw 10-14 X 7/8” | 4 |
| 3 | 211200035 | Flat Washer | 3 |
| 1 | 232100600 | Hex. Jam Nut M10 | 1 |
| 1 | 232501200 | Elastic Stop Nut M10, Brass | 1 |
| 2 | 232551200 | Elastic Stop Nut 5 mm | 2 |
| 4 | 232561200 | Elastic Stop Nut M6, Brass | 4 |
| 2 | 232581200 | Hex. Elastic Nut M8 Brass | 2 |
| 1 | 234002600 | Flat Washer 10 mm, Stainless | 1 |
| 3 | 234042600 | Flat Washer 4 mm, Stainless | 3 |
| 6 | 234062600 | Flat Washer M6, Stainless | 6 |
| 2 | 234082600 | Flat Washer 8 mm, Stainless | 2 |
| 3 | 241142560 | Hex. Flange Screw K40 X 25 | 3 |
| 1 | 250000287 | Flange Torx Screw K40 X 16 | 1 |
| 2 | 250000399 | Hexagonal Cap Screw M6 X35 | 2 |
| 250000339 | SOCKET SCREW M6 X 12 | ||
| 12 | 250000626 | Screw Torx M6.81 X 30 | 12 |
| 4 | 250200022 | Flat Washer M6.6 X 22 | 4 |
| 1 | 264000059 | Glovebox Access Door | 1 |
| 1 | 269002125 | Seat Stud Spacer | 1 |
| 269002126 | SEAT STUD SUPPORT | ||
| 1 | 291004625 | Black, Rear Handle Ass'y | 1 |
| 1 | 269502111 | Holding Strap | 1 |
| 269502100 | RH Cosmétic Panel | ||
| 1 | 269502101 | LH Cosmetic Panel | 1 |
| 1 | 291001386 | Black, Finition Plate | 1 |
| XXX | Not Available As Spare Parts | ||
| 1 | 291003573 | Front Carpet LH | 1 |
| 1 | 291003574 | Front Carpet RH | 1 |
| 1 | 291003575 | Front Center Carpet LH | 1 |
| 1 | 291003576 | Front Center Carpet RH | 1 |
| 1 | 291003062 | Rear Carpet LH | 1 |
| 1 | 291003063 | Rear Carpet RH | 1 |
| 1 | 291003064 | Front Bumper | 1 |
| 1 | 291004153 | RH Bumper Corner | 1 |
| 1 | 291004152 | LH Bumper Corner | 1 |
| 1 | 291003071 | Console | 1 |
| 291004150 | Yellow Info Gauge Bezel | ||
| 1 | 250000735 | Torx Screw K40 X 16 | 1 |
| 1 | 291003090 | Mirror RH, With Double-Face Tape | 1 |
| 1 | 291003091 | Mirror LH, With Double-Face Tape | 1 |
| 1 | 291003096 | Swim Platform Carpet | 1 |
| 1 | 291003277 | Deck Nose | 1 |
| 1 | 291003577 | Rear Center Carpet LH | 1 |
| 1 | 291003578 | Rear Center Carpet RH | 1 |
| 1 | 291003391 | Divider Ass'y | 1 |
| 1 | 291003738 | Body Deflector | 1 |
| 1 | 291004271 | Deep Black, Mirror Support | 1 |
| 1 | 291003877 | Stud Seat | 1 |
| 1 | 292000933 | U-Clamp | 1 |
| 2 | 293000014 | Black, Snap Cap | 2 |
| 2 | 293050001 | Flat Washer M8.5 x 18 | 2 |
| 2 | 293150016 | Rivet 1/8" | 2 |
| 2 | 293150089 | Tuflok Plastic Rivet | 2 |
| 1 | 293150123 | Pop Rivet 3/16" | 1 |
| 3 | 293150186 | Pop Rivet 3/16 | 3 |
| 1 | 219704378 | Gasket 3000Mm Long | 1 |
| 1 | 293250236 | Gasket | 1 |
| 8 | 293730006 | Black, Dart | 8 |
| 1 | 293730011 | Black, Dart | 1 |
| 1 | 293830005 | Rubber Bumper | 1 |
| 1 | 264000091 | Black, Latch | 1 |
| 291003872 | Lateral Bumper | ||
| 1 | 291003704 | Bumper Support | 1 |
