Интерактивное демо базы запчастей
Просматривайте запчасти для ATV, мотоциклов, снегоходов, водных моторов и другой техники по марке, году и модели. Каталог доступен для покупки в виде базы данных SQL с изображениями или для аренды.

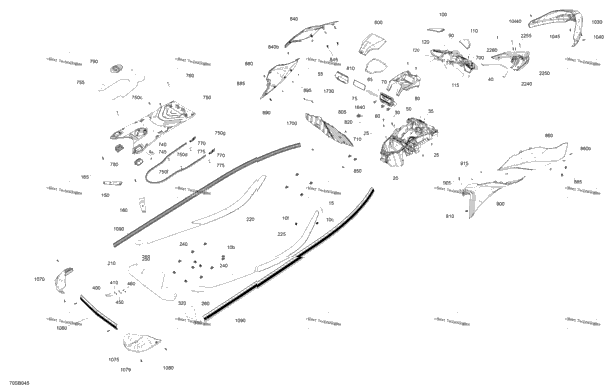

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 6 | 291006093 | Nut Housing M6 Ass'y | 6 |
| 1 | 293750109 | Anchorage Tie Wrap | 1 |
| 1 | 291005381 | Decal | 1 |
| 6 | 291005887 | Console | 6 |
| 1 | 250000969 | Hex Screw SEMS M6X35, SS | 1 |
| 1 | 250000879 | Plastite Torx Screw M6.81X30 | 1 |
| 6 | 293830005 | Rubber Bumper | 6 |
| 1 | 291005178 | Mirror Support | 1 |
| 1 | 291005122 | Deep Black, Storage Bin | 1 |
| 6 | 264000158 | Box Cover | 6 |
| 1 | 269501718 | Clip | 1 |
| 1 | 293250591 | Gasket | 1 |
| 1 | 264000137 | Vent Membrane | 1 |
| 1 | 264000135 | Sealed Compartment Foam | 1 |
| 1 | 291005085 | Black, Console Panel | 1 |
| 1 | 269502427 | Deep Black, LH Mirror Cover | 1 |
| 1 | 269502428 | Deep Black, RH Mirror Cover | 1 |
| 9 | 211000023 | Hex. Screw 10-14 X 7/8” | 9 |
| 1 | 269502274 | LH Mirror Glass | 1 |
| 1 | 269502276 | RH Mirror Glass | 1 |
| 1 | 291005127 | LH Spacer | 1 |
| 1 | 291005182 | RH Spacer | 1 |
| 6 | 250001194 | Plastite Screw Torx Cone HD.M6.81X3 | 6 |
| 1 | 291005258 | Anti Slip Mat Deck Rear | 1 |
| 1 | 291005171 | LH Front Anti Slip Mat Deck Model Without Sound System | 1 |
| 1 | 291005289 | LH Front Anti Slip Mat Deck Model With Sound System | 1 |
| 1 | 291005172 | RH Front Anti Slip Mat Deck Model Without Sound System | 1 |
| 1 | 291005290 | RH Front Anti Slip Mat Deck Model With Sound System | 1 |
| 1 | 291005173 | LH/RH Rear Anti Slip Mat Side | 1 |
| 1 | 291005885 | LH Rear Footrest Anti Slip Mat | 1 |
| 1 | 291005886 | RH Rear Footrest Anti Slip Mat | 1 |
| 1 | 293150016 | Rivet 1/8" | 1 |
| 9 | 293000014 | Black, Snap Cap | 9 |
| 1 | 292000933 | U-Clamp | 1 |
| 8 | 293050001 | Flat Washer M8.5 x 18 | 8 |
| 9 | 234082600 | Flat Washer 8 mm, Stainless | 9 |
| 6 | 232581200 | Hex. Elastic Nut M8 Brass | 6 |
| 6 | 293150230 | Tuflok Plastic Rivet | 6 |
| 1 | 291004941 | Hose Protector | 1 |
| 1 | 293730011 | Black, Dart | 1 |
| 6 | 291005876 | Acces Cover Ass'y Rental Models Only | 6 |
| 6 | 291005183 | STUD | 6 |
| 9 | 234062600 | Flat Washer M6, Stainless | 9 |
| 6 | 232561200 | Elastic Stop Nut M6, Brass | 6 |
| 1 | 291004717 | Seal | 1 |
| 1 | 291005861 | Deep Black, Rear Mat | 1 |
| 7 | 250000827 | Screw-Torx Truss Cone HD.M6X50 | 7 |
| 5 | 295100858 | Linq Bases Kit | 5 |
| 1 | 291004481 | Access Cap Ass'y | 1 |
| 6 | 291005888 | Deep Black, Glove Box Cover | 6 |
| 1 | 264000133 | Glove Box Latch | 1 |
| 1 | 293250498 | Gasket | 1 |
| 1 | 250001119 | Screw K40 X 10 | 1 |
| 6 | 291005531 | LH Front Body Panel Ass'y Model Neon Yellow | 6 |
| 6 | 291005562 | LH Front Body Panel Ass'y Model Coral Blast | 6 |
| 1 | 293250546 | Neoprene Stopper | 1 |
| 1 | 293730071 | Dard | 1 |
| 6 | 291005532 | RH Front Body Panel Ass'y Model Neon Yellow | 6 |
| 6 | 291005564 | Grey, RH Front Body Panel Ass'y Model Coral Blast | 6 |
| 1 | 291005299 | Neon Yellow, LH Center Body Panel Model Neon Yellow | 1 |
| 1 | 291005750 | Coral Blast, LH Central Body Panel Model Coral Blast (North America) | 1 |
| 1 | 291005952 | Iceland Grey, LH Central Body Panel Model Coral Blast (International) | 1 |
| 1 | 291005295 | Neon Yellow, RH Center Body Panel Model Neon Yellow | 1 |
| 1 | 291005751 | Coral Blast, RH Central Body Panel Model Coral Blast (North America) | 1 |
| 1 | 291005953 | Iceland Grey, RH Central Body Panel Model Coral Blast (International) | 1 |
| 1 | 291005082 | Bumper Front | 1 |
| 6 | 250001138 | Plastite Screw Torx Cone HD.M6.81X3 | 6 |
| 291005510 | Lateral Bumper | ||
| 1 | 291005083 | LH Rear Bumper Corner | 1 |
| 1 | 291005084 | RH Rear Bumper Corner | 1 |
| 1 | 269502324 | USB Plug | 1 |
| 1 | 291005587 | Separation Panel Ass'y | 1 |
| 6 | 269502111 | Holding Strap | 6 |
| 3 | 219704476 | Gasket, Neoprene 2000Mm Long | 3 |
| 1 | 291005108 | Body Deflector | 1 |
