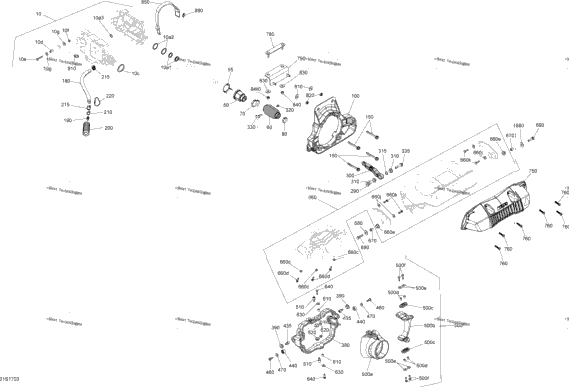

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 278003478 | Actuator Includes 10 to 10g | 1 |
| 2 | 279000108 | O-Ring | 2 |
| 2 | 293300107 | O-Ring | 2 |
| 1 | 293300187 | O-Ring | 1 |
| 1 | 268000208 | Gasket | 1 |
| 1 | 271001020 | Spacer | 1 |
| 1 | 207063560 | Hex. Screw M6 X 35 | 1 |
| 1 | 232561200 | Elastic Stop Nut M6, Brass | 1 |
| 2 | 234062600 | Flat Washer M6, Stainless | 2 |
| 1 | 268000267 | Ibr Nut | 1 |
| 1 | 277001977 | Rubber Gasket | 1 |
| 1 | 268000186 | Boot | 1 |
| 1 | 509000529 | Oetiker Gear Clamp, 36.5-706R | 1 |
| 1 | 293650099 | Crimp Clamp | 1 |
| 1 | 268000266 | Bracket | 1 |
| 4 | 250000835 | Screw-Hex.Flange DIN.6921 S.Grip | 4 |
| 1 | 219704420 | Was 509000407 Hose 8 mm | 1 |
| 1 | 293710157 | Fitting-Straig | 1 |
| 1 | 268000211 | Inner Boot | 1 |
| 1 | 293750002 | Tie Wrap 142 mm | 1 |
| 2 | 293650171 | Tridon Gear Clamp | 2 |
| 1 | 268000269 | Bushing | 1 |
| 1 | 268000256 | Linkage Arm | 1 |
| 2 | 293900007 | Venturi Bushing | 2 |
| 1 | 250000565 | Hexalob Screw M4 X 10 | 1 |
| 1 | 268000207 | Shoulder Pin | 1 |
| 1 | 250000834 | Hex. Screw Flange DIN.6921 S.Grip | 1 |
| 1 | 268000247 | Trimming Ring | 1 |
| 2 | 250000837 | Screw Socket S.Grip | 2 |
| 2 | 295501160 | Roller Bushing Kit Includes 440 to 440a | 2 |
| 1 | 250000775 | Screw-Socket Shoulder M8X8 | 1 |
| 2 | 250000775 | Screw-Socket Shoulder M8X8 | 2 |
| 267000905 | NOZZLE ASS'Y Includes 500 to 500f | ||
| 1 | 267000727 | Jet Pump Nozzle | 1 |
| 1 | 268000148 | Nozzle Lever, Black | 1 |
| 2 | 268000058 | Direction Lever Arm | 2 |
| 4 | 268000060 | Spacer | 4 |
| 4 | 234062600 | Flat Washer M6, Stainless | 4 |
| 4 | 250000891 | Scotch Grip Hexagonal Screw M6 X 20 | 4 |
| 2 | 268000060 | Spacer | 2 |
| 2 | 268000059 | Bushing | 2 |
| 2 | 207362060 | Hex. Screw M6 X 20, Scotch Grip | 2 |
| 1 | 268000296 | Gate Reverse Ass'y Includes 660 to 660k, Trim Ramp Kit 295501168 | 1 |
| 3 | 234061600 | Stainless Flat Washer M6 | 3 |
| 3 | 205562060 | Socket Head Screw M6 X 20, Scotch Grip | 3 |
| 4 | 207362060 | Hex. Screw M6 X 20, Scotch Grip | 4 |
| 2 | 271001039 | Spacer | 2 |
| 2 | 234082600 | Flat Washer 8 mm, Stainless | 2 |
| 2 | 250000526 | Hex. Screw M8 X 30, Scotch Grip | 2 |
| 1 | 268000162 | Guard | 1 |
| 6 | 250000828 | Screw Torx M6.81 X 30 | 6 |
| 1 | 268000271 | Ass'y Bracket | 1 |
| 1 | 268000304 | Reverse Bracket | 1 |
| 2 | 279000164 | Flat Washer | 2 |
| 2 | 232581200 | Hex. Elastic Nut M8 Brass | 2 |
| 1 | 293850123 | Fuel Tank Strap | 1 |
| 1 | 293750001 | Tie Wrap 94 mm | 1 |
