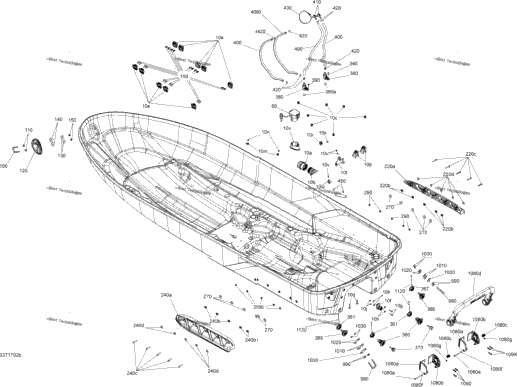

Каталог / Watercraft / Sea-Doo / 2017 / RXT / Hull - All Models

Список запчастей

№	Артикул	Название	Кол-во
	293450355	HULL INSERT
1	293450309	Outer Hull Insert	1
	XXXX	Not Available As Spare Part - Hull Insert
20	293150123	Pop Rivet 3/16"	20
10	270000933	Strap Retaining	10
1	277001881	Cable Adaptor Ass'y	1
2	207063060	Hex. Screw M6 X 30	2
2	250200114	Sealing Washer	2
2	232561200	Elastic Stop Nut M6, Brass	2
2	234062600	Flat Washer M6, Stainless	2
2	293750026	Tie Rap Mount	2
2	293150037	Avdel Rivet 3/16"	2
2	270000988	Strap Anchor	2
2	250000399	Hexagonal Cap Screw M6 X35	2
1	270000854	Strap Anchor Model RXT-X 300, RXT-X RS 300	1
1	293150043	Pop Rivet 3/16" Model RXT-X 300, RXT-X RS 300	1
	270000976	STRAP ANCHOR Model RXT-X 300, RXT-X RS 300
2	293150043	Pop Rivet 3/16" Model RXT-X 300, RXT-X RS 300	2
1	292000933	U-Clamp	1
2	293050001	Flat Washer M8.5 x 18	2
	292001867	BOW CUP
2	250200011	Flat Washer 8 mm, Stainless	2
2	293830037	Rubber Washer	2
2	232581200	Hex. Elastic Nut M8 Brass	2
1	292001871	RH Sponson Model RXT-X 300, RXT-X RS 300	1
1	292001878	RH Sponson Model RXT 260, RXT 260 RS	1
1	292001873	RH Spacer Sponson Model RXT-X 300, RXT-X RS 300	1
5	292001349	Spacer Sponson Model RXT 260, RXT 260 RS	5
5	250000572	Torx-Head Screw M8 X 35 Model RXT-X 300, RXT-X RS 300	5
5	250000452	Torx Screw M8 X 40, Stainless Model RXT 260, RXT 260 RS	5
5	234082600	Flat Washer 8 mm, Stainless Model RXT 260, RXT 260 RS	5
5	292001471	Square Head Stud Model RXT-X 300, RXT-X RS 300	5
5	292001503	Push Nut Model RXT-X 300, RXT-X RS 300	5
1	292001872	Sponson LH Model RXT-X 300, RXT-X RS 300	1
1	292001877	LH Sponson Model RXT 260, RXT 260 RS	1
1	292001874	Spacer Sponson LH Model RXT-X 300, RXT-X RS 300	1
10	250200011	Flat Washer 8 mm, Stainless	10
10	232581200	Hex. Elastic Nut M8 Brass	10
2	292001580	Drain Ass'y	2
3	292001825	Plastic Nut	3
1	292001317	Drain Neck Ass'y Plug 292001352	1
1	292001317	Drain Neck Ass'y Model RXT-X 300, RXT-X RS 300	1
1	292001825	Plastic Nut Model RXT-X 300, RXT-X RS 300	1
2	292001583	Plug Ass'y	2
2	292001636	Bailer Pick-up Ass'y Includes 380 to 380a	2
1	293830080	Floating Ball	1
2	211000023	Hex. Screw 10-14 X 7/8”	2
4	219704356	Was 275500008 Hose 12 mm	4
2	293710152	Fitting Elbow 90°	2
8	293750001	Tie Wrap 94 mm	8
1	293750008	Tie Wrap 368 mm	1
2	292000933	U-Clamp	2
4	279000164	Flat Washer	4
2	291001386	Black, Finition Plate	2
4	293830037	Rubber Washer	4
4	250200011	Flat Washer 8 mm, Stainless	4
4	232581200	Hex. Elastic Nut M8 Brass	4
2	292001509	A Section Support Model RXT 260, RXT 260 RS	2
2	292001510	B Section Support Model RXT 260, RXT 260 RS	2
2	292001259	Spring Model RXT 260, RXT 260 RS	2
1	292001204	Overmolded Bar Model RXT 260, RXT 260 RS	1
2	207066560	Hex. Screw M6 x 65 Model RXT 260, RXT 260 RS	2
2	234061600	Stainless Flat Washer M6 Model RXT 260, RXT 260 RS	2
2	232561600	Hex. Elastic Stop Nut M6 Model RXT 260, RXT 260 RS	2
6	250000828	Screw Torx M6.81 X 30 Model RXT 260, RXT 260 RS	6
1	219704460	Was 293800066 Sealant Loctite 5900, 300 ml Model RXT 260, RXT 260 RS	1
